Hyundai 04TLW B01.09 Elevator Display Board

The Hyundai 04TLW B01.09 Elevator Display Board is an electronic display component used in elevator passenger information and floor indication applications. It is mainly supplied for maintenance and replacement when the existing display unit is damaged, has screen faults or requires replacement.

Start With the Display Marking

For display boards, the visible screen size alone is not enough to identify the correct replacement.

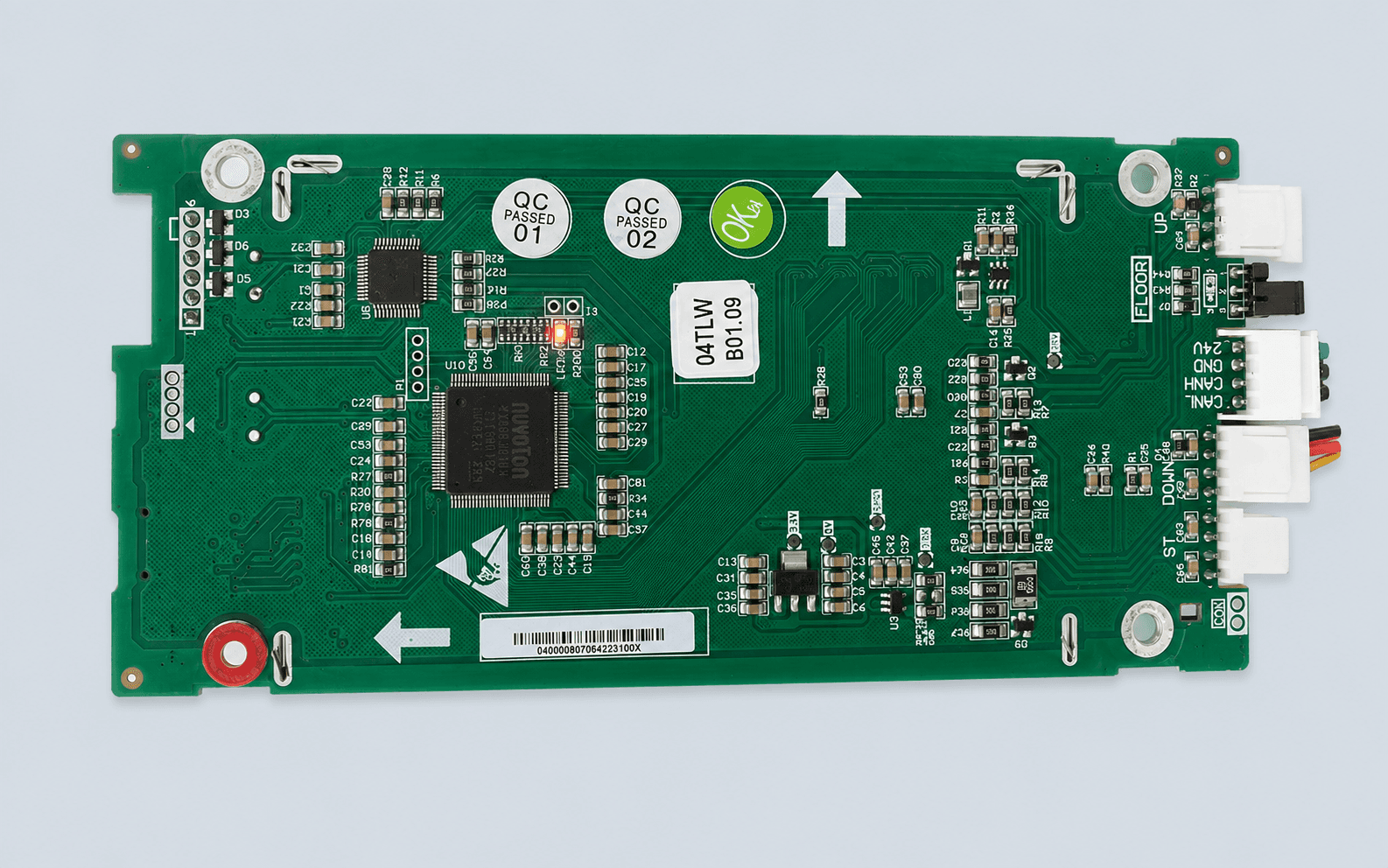

The 04TLW model marking and B01.09 identification should be checked together with the PCB, connectors and original elevator display configuration.

Useful details for confirmation include:

• Display model: 04TLW

• Version or marking: B01.09

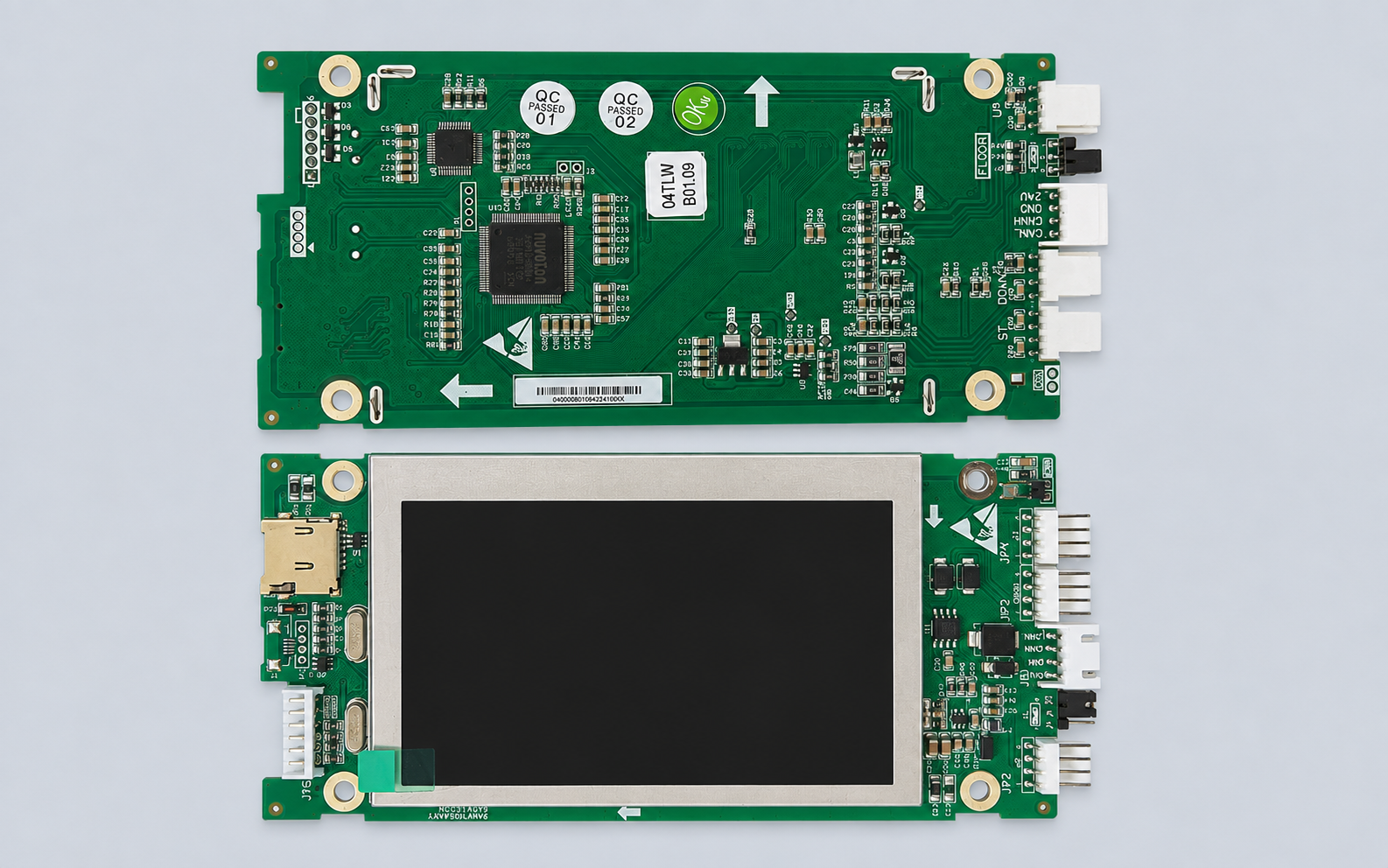

• Front and rear photos

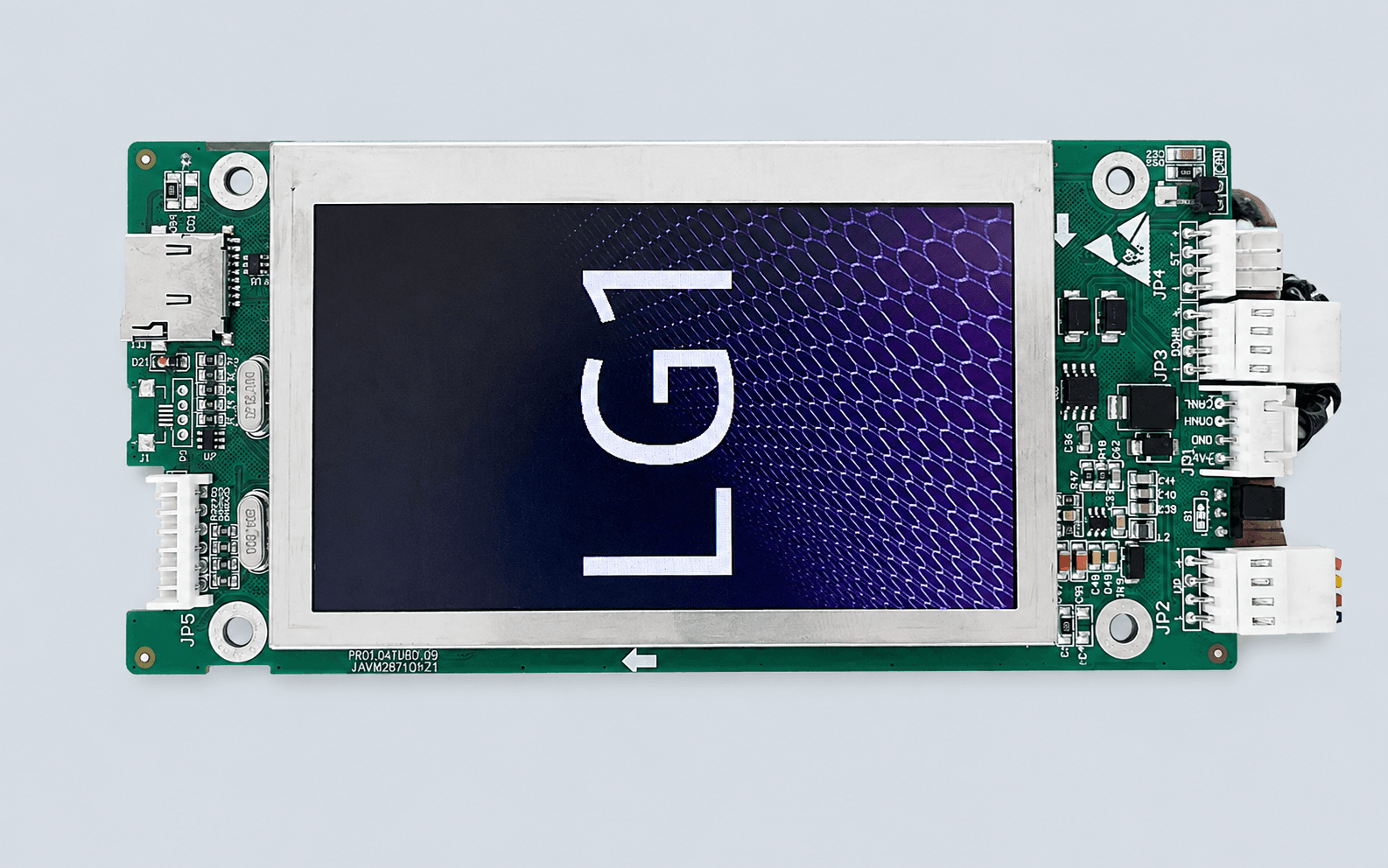

• LCD screen appearance

• Connector positions

• Additional PCB labels

• Related COP or LOP installation

• Required quantity

Replacement Depends on the Interface

Two elevator displays may look almost identical from the front while using different communication or connection arrangements.

For this reason, we recommend comparing the rear PCB and connector layout with the original unit before installation.

FAQ

What is the 04TLW used for?

It is used as an elevator display and floor indication component in operating panel or landing display applications.

Is B01.09 important when ordering?

Yes. If B01.09 appears on the original unit, include this marking together with clear PCB and connector photos when confirming the replacement.

For Hyundai 04TLW B01.09 requirements, send us clear photos of the complete display unit for model checking before quotation.
