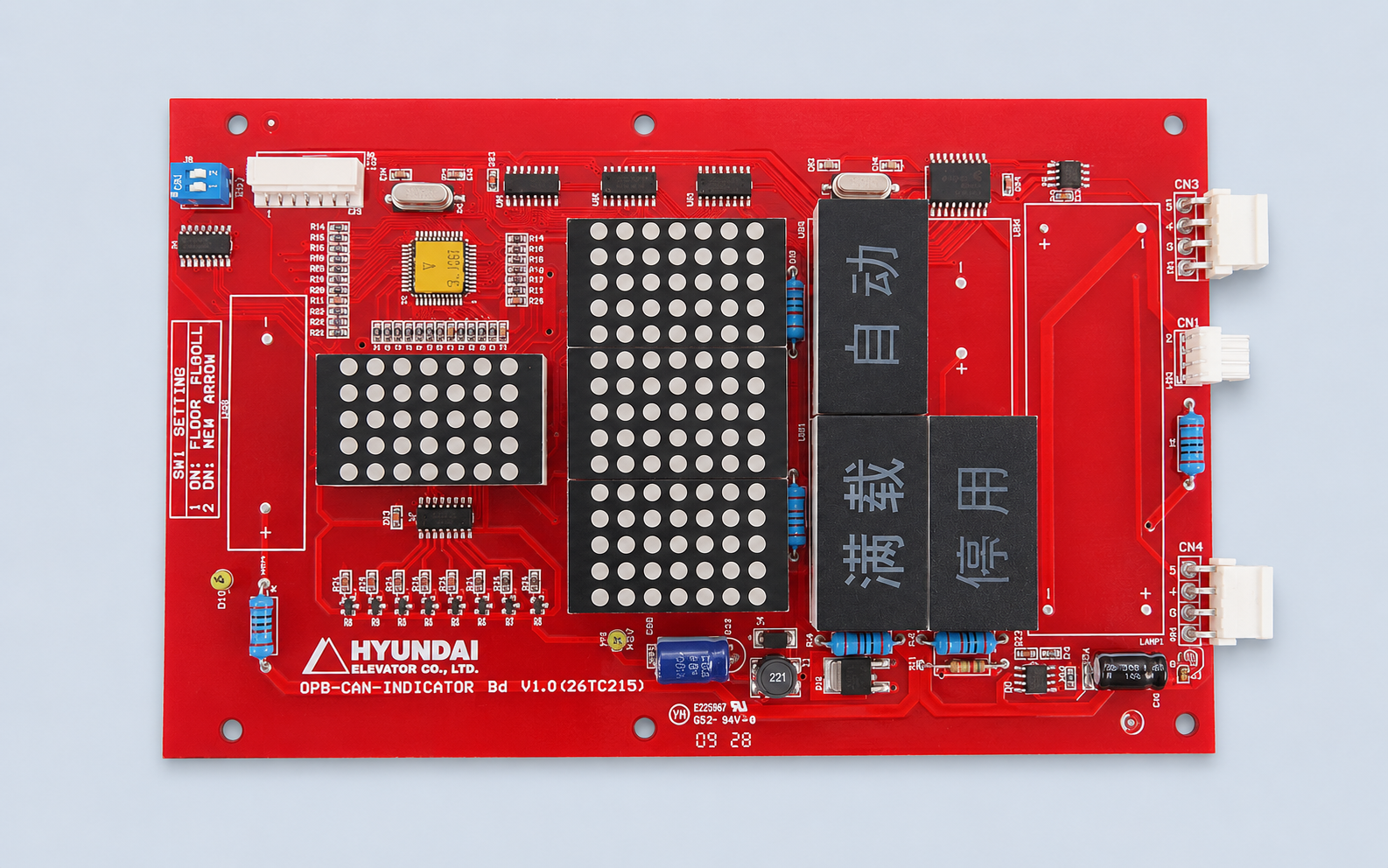

Hyundai STVF5 STVF7 OPB-CAN-INDICATOR Bd

The Hyundai STVF5 / STVF7 OPB-CAN-INDICATOR Bd is an elevator display and indicator PCB used in the car operating panel system. It communicates with the elevator controller through the CAN network and provides passenger-facing operating and status information.

Inside the Car Operating Panel

The OPB-CAN-INDICATOR board is different from the main OPB control board or button board. Its role is focused on elevator indication and display functions within the operating panel system.

Depending on the installation, the display can provide information such as floor position, travel direction and elevator operating status.

Version and Board Number

A commonly found configuration is:

• Model: OPB-CAN-INDICATOR Bd

• Version: V1.0

• Board number: 262C215

• Elevator system: STVF5 / STVF7

However, the version printed on the existing PCB should always be checked before replacement.

For quotation, please provide:

• Front and rear PCB photos

• Complete OPB-CAN-INDICATOR marking

• PCB version

• Board or part number

• Display appearance

• CAN and power connectors

• Related OPB photo

• Required quantity

Why the Original Board Matters

CAN display boards may have similar appearances while using different PCB versions or communication configurations.

The safest replacement method is to compare the complete board marking, connector layout and elevator system with the existing unit.

FAQ

What is the OPB-CAN-INDICATOR Board used for?

It is used as a CAN-based display and indicator board in Hyundai elevator operating panel systems.

Is OPB-CAN-INDICATOR used with both STVF5 and STVF7?

Yes. This display board is commonly listed for Hyundai STVF5 and STVF7 elevator applications.

Is 262C215 the only OPB-CAN-INDICATOR version?

262C215 is commonly associated with the V1.0 version, but the actual PCB number and revision should be confirmed from the existing board before replacement.

For Hyundai STVF5 / STVF7 OPB-CAN-INDICATOR Bd requirements, send us the original PCB photos and identification markings for replacement checking before quotation.
