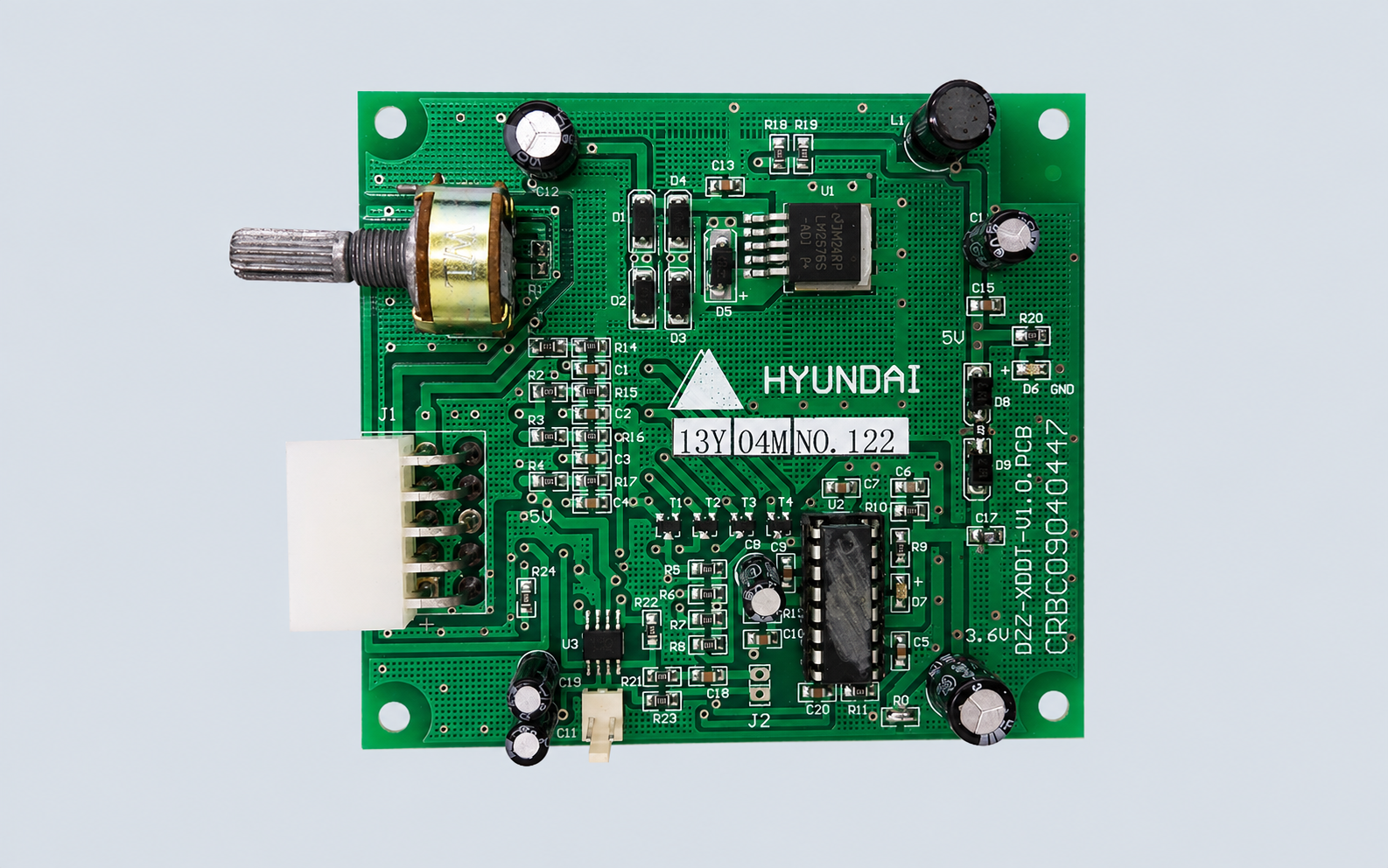

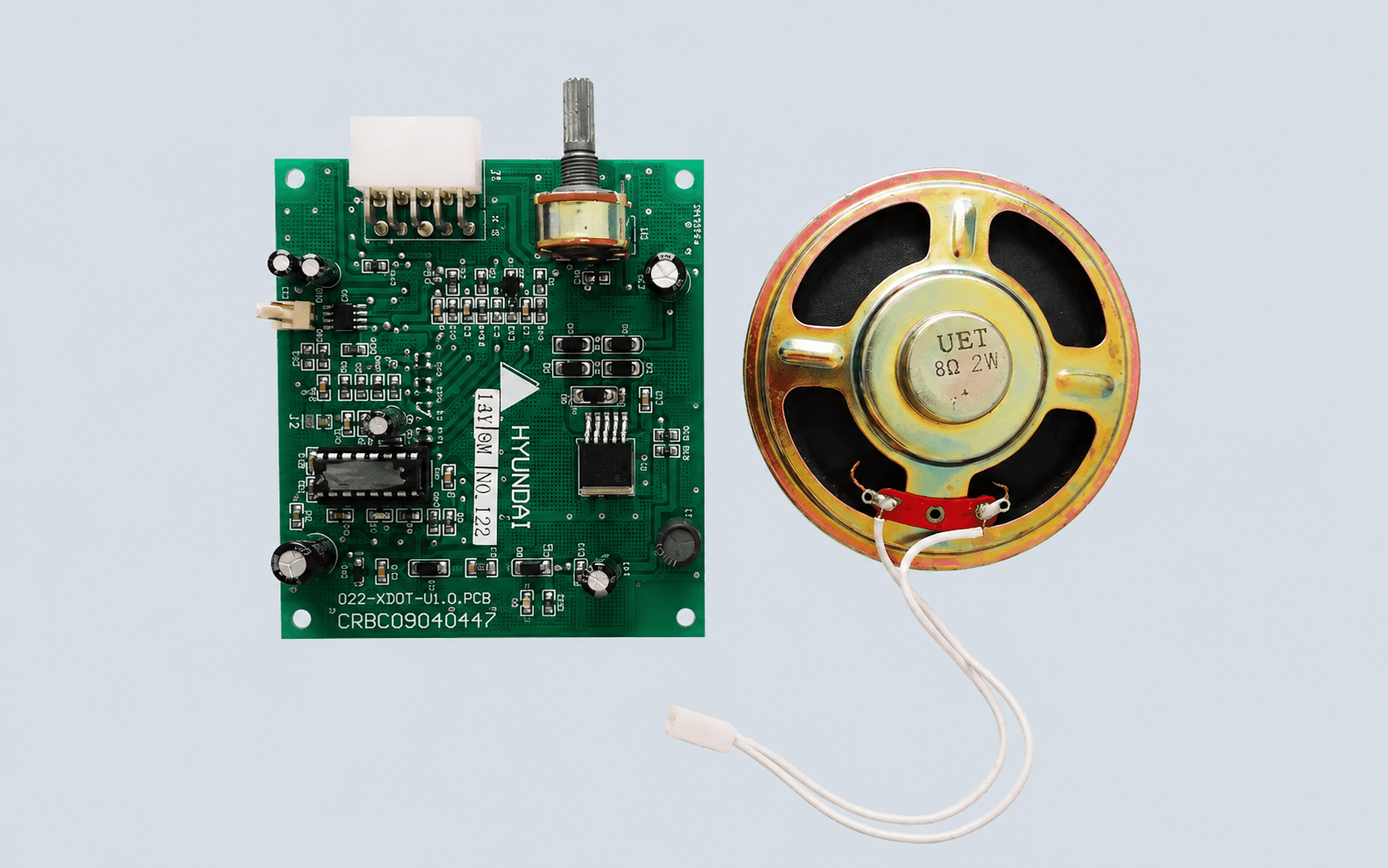

Hyundai DZZ-XDDT-V1.0 PCB Arrival Gong Board

The Hyundai DZZ-XDDT-V1.0 PCB is an elevator arrival gong and signal board used in Hyundai elevator indication systems. It is mainly supplied for maintenance and replacement when the existing arrival board is damaged or no longer operating correctly.

A commonly associated identification number for this board is CRBC09040447.

Used for Elevator Arrival Indication

The DZZ-XDDT board is associated with elevator arrival notification and signal processing. Depending on the installation, it can work together with the hall indication system to provide passenger arrival information.

For replacement, the complete PCB marking should be checked carefully.

Please confirm:

• Board model: DZZ-XDDT-V1.0.PCB

• Marking: V1.0 or V1.O

• Part number: CRBC09040447

• Front and rear PCB photos

• Connector arrangement

• Related indicator or HIP information

• Required quantity

Match the Original Board

Different revisions of the DZZ-XDDT board may exist. A board with a similar appearance should not automatically be considered interchangeable without checking its PCB version and connectors.

FAQ

What is the Hyundai DZZ-XDDT board used for?

It is mainly used as an elevator arrival gong or arrival signal board within the Hyundai elevator indication system.

Is CRBC09040447 important when ordering?

Yes. CRBC09040447 is a useful identification number for confirming the DZZ-XDDT board together with the PCB version and connector layout.

Is V1.O the same as V1.0?

Some product markings and supplier records use V1.O while others use V1.0. We recommend confirming the actual marking and PCB photos before replacement.

For Hyundai DZZ-XDDT-V1.0 PCB requirements, send us the original board photos and identification information for model checking before quotation.
