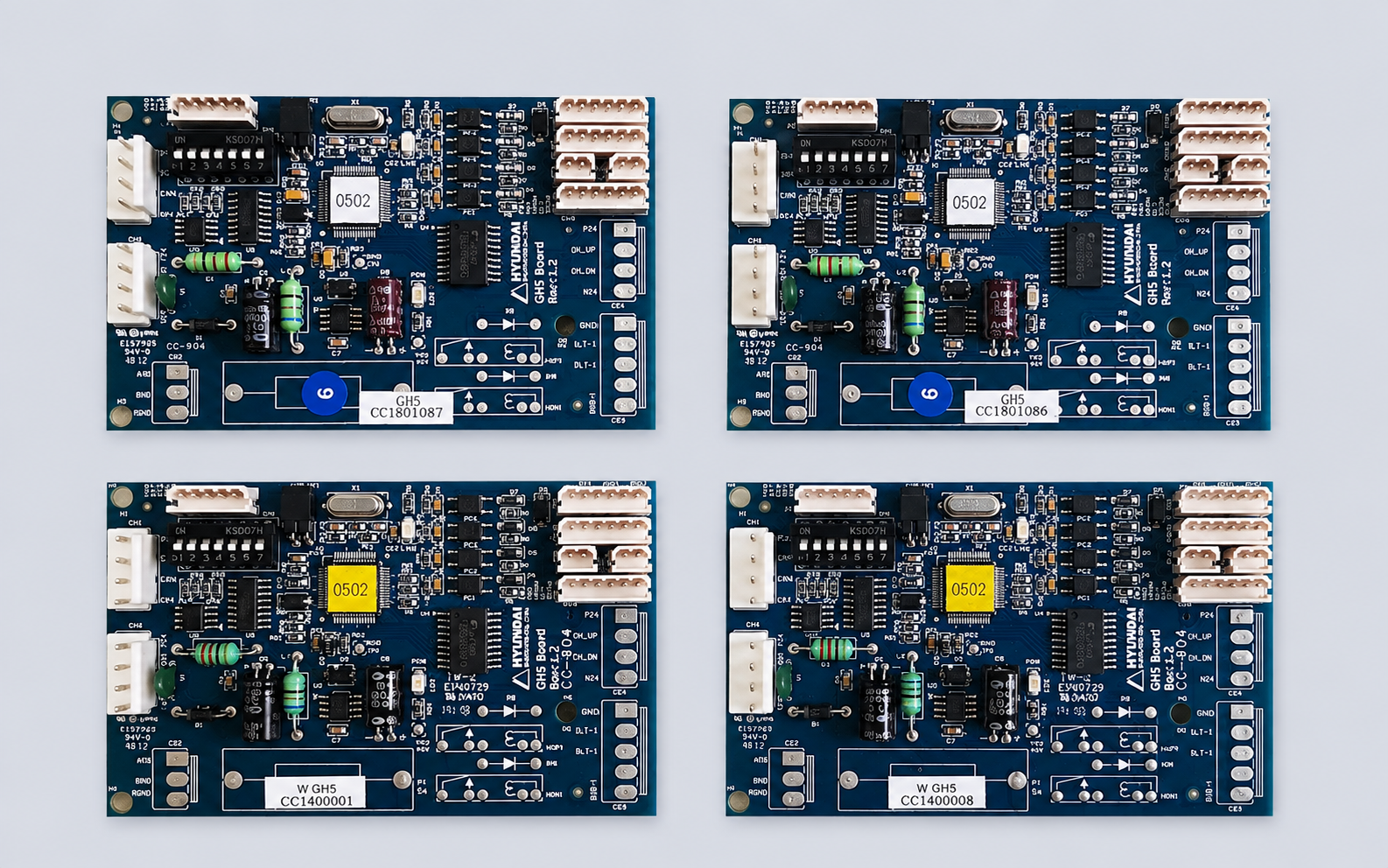

Hyundai STVF9 GH5 Board Rev1.2

The Hyundai STVF9 GH5 Board Rev1.2 is an elevator hall signal PCB used for hall lantern and arrival chime functions. The GH5 board works as part of the landing indication and communication system and is mainly supplied for maintenance or replacement of an existing board.

Hall Lantern and Chime Control

The GH5 board is designed to support hall lantern and hall chime operation. It includes connections for communication, buttons and external signaling components.

For replacement, the exact PCB revision should be checked because similar GH5 boards may use different hardware versions or connector arrangements.

Please confirm:

• Board model: GH5

• PCB revision: Rev1.2

• Elevator system: STVF9

• Front and rear PCB photos

• Connector arrangement

• Additional part numbers or labels

• Required quantity

Check the Revision Before Replacement

The Rev1.2 marking should be compared with the original board before ordering. A similar GH5 board with another revision should not automatically be considered interchangeable.

FAQ

What is the Hyundai GH5 Board used for?

The GH5 board is mainly associated with elevator hall lantern and arrival chime functions in the landing signal system.

Can another GH5 revision replace Rev1.2 directly?

Not necessarily. The PCB revision, connectors and original system configuration should be checked before replacement.

What should I send for quotation?

Please send clear front and rear photos showing the GH5 Rev1.2 marking, connectors and any additional part numbers.

For Hyundai STVF9 GH5 Board Rev1.2 requirements, send us the original PCB information for model checking before quotation.
