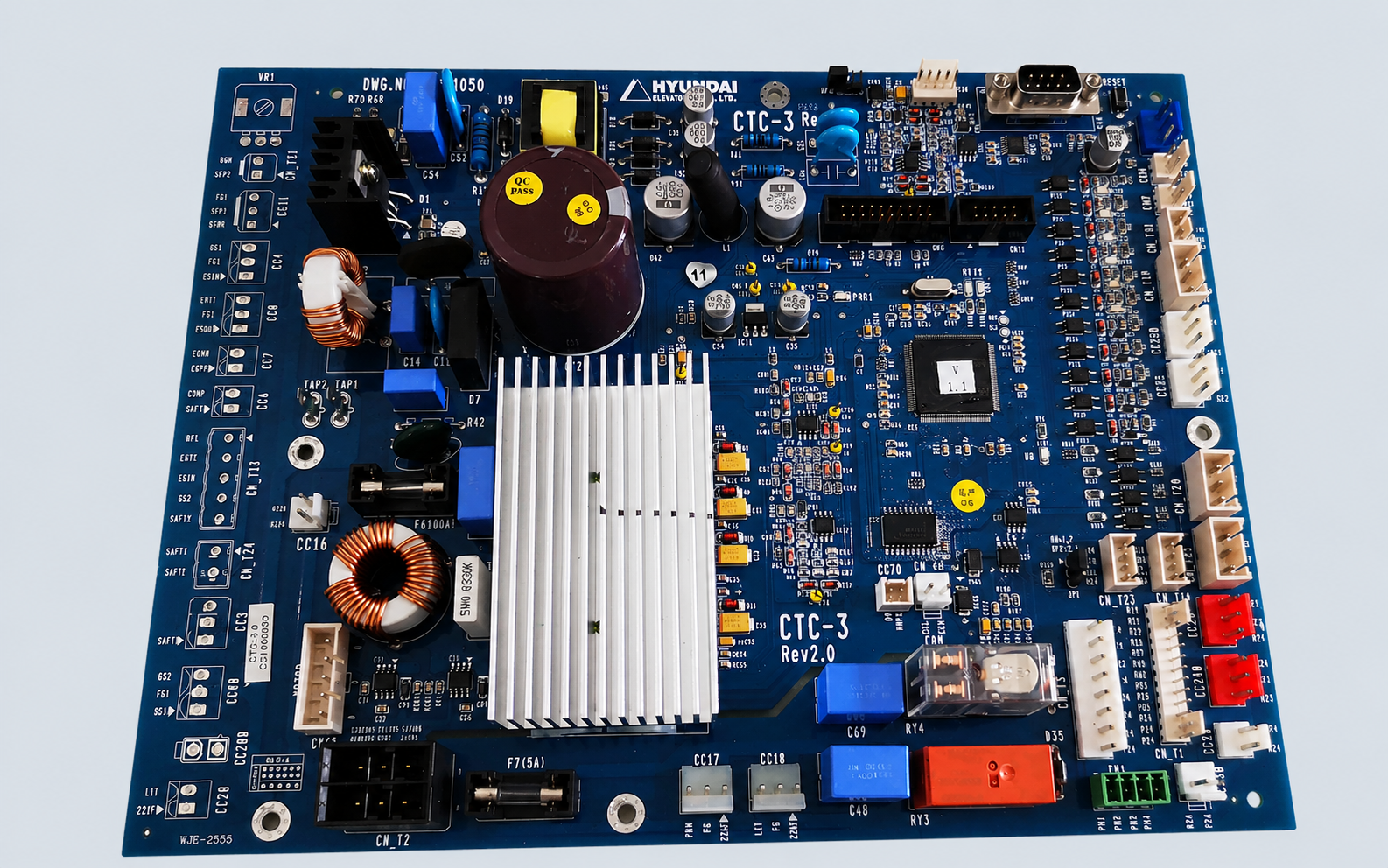

Hyundai CTC-3 REV2.0 Elevator Door Controller Board

The Hyundai CTC-3 REV2.0 Elevator Door Controller Board is an electronic control PCB used in Hyundai elevator door systems. It is associated with door operation and related input/output signals during elevator door opening and closing.

A commonly referenced identification number for the CTC-3 REV2.0 board is 20401050.

When Replacing a CTC-3 Board

For door controller board replacement, the PCB revision should be checked carefully. Different CTC-3 versions are available, and boards with a similar appearance may carry different revision numbers or Hyundai part numbers.

The original PCB information should therefore be compared before ordering.

Details Worth Checking

Please provide:

• Board model: CTC-3

• Revision: REV2.0

• Hyundai part or DWG number

• Front and rear PCB photos

• Connector arrangement

• Related elevator or door system information

• Required quantity

Clear photos of the existing board are especially useful when the printed label or part number is difficult to identify.

For Hyundai CTC-3 REV2.0 Door Controller Board replacement, send us the original PCB photos and identification markings for model checking before quotation.
