Hyundai HIVD900GT/G/SS PB-H9G15SF H9G15IF Power Board

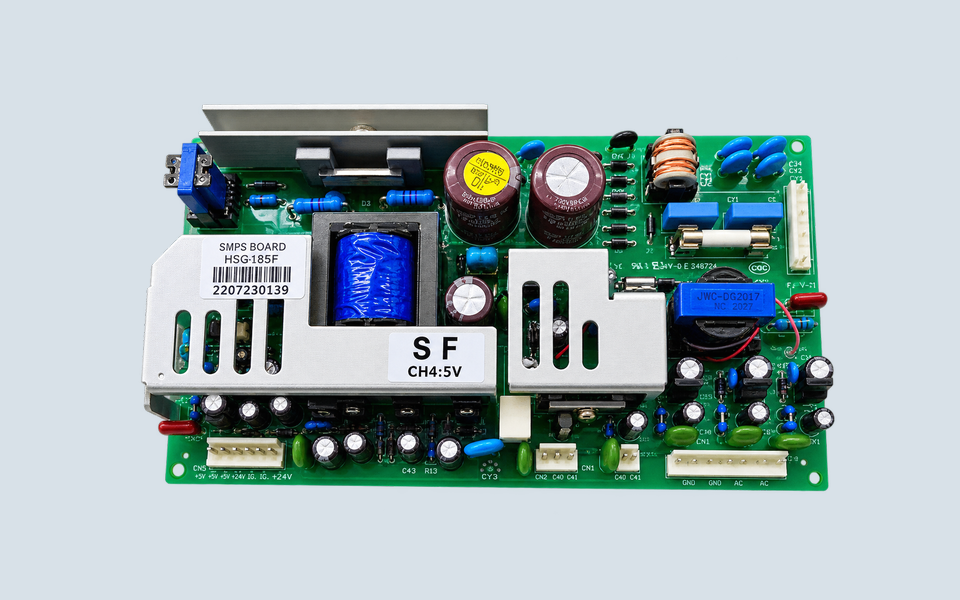

The Hyundai HIVD900 PB-H9G15SF / H9G15IF Power Board is an SMPS power supply PCB used inside Hyundai HIVD900 elevator inverters. Different board versions are used according to the inverter and motor configuration.

H9G15SF or H9G15IF?

These two boards should not be selected only by their similar appearance.

H9G15IF is associated with the HIVD900G induction motor inverter, while H9G15SF is used with HIVD900SS / HIVD900GT synchronous motor systems.

For common 5.5–15 kW applications, another useful identification difference is the SCN1 connection:

• H9G15IF: 7-pin

• H9G15SF: 6-pin

This difference should be checked carefully when replacing an existing inverter power board.

What to Compare on the Original Board

Please provide:

• Inverter model: HIVD900G, HIVD900GT or HIVD900SS

• Board model: H9G15IF or H9G15SF

• PB-H9G15 series marking

• Inverter power rating

• Front and rear PCB photos

• SCN1 connector configuration

• Required quantity

FAQ

Can H9G15SF replace H9G15IF directly?

No. They are designed for different inverter and motor configurations and also use different SCN1 connector arrangements.

Is this the HIVD900 main board?

No. H9G15SF and H9G15IF belong to the inverter SMPS power supply section. The HIVD900 main control board is a separate PCB.

What is most important before ordering?

Confirm the inverter type, H9G15SF/H9G15IF marking, power rating and connector configuration against the original board.

For Hyundai HIVD900 PB-H9G15SF / H9G15IF Power Board requirements, send us the original PCB photos and inverter information for replacement checking.
