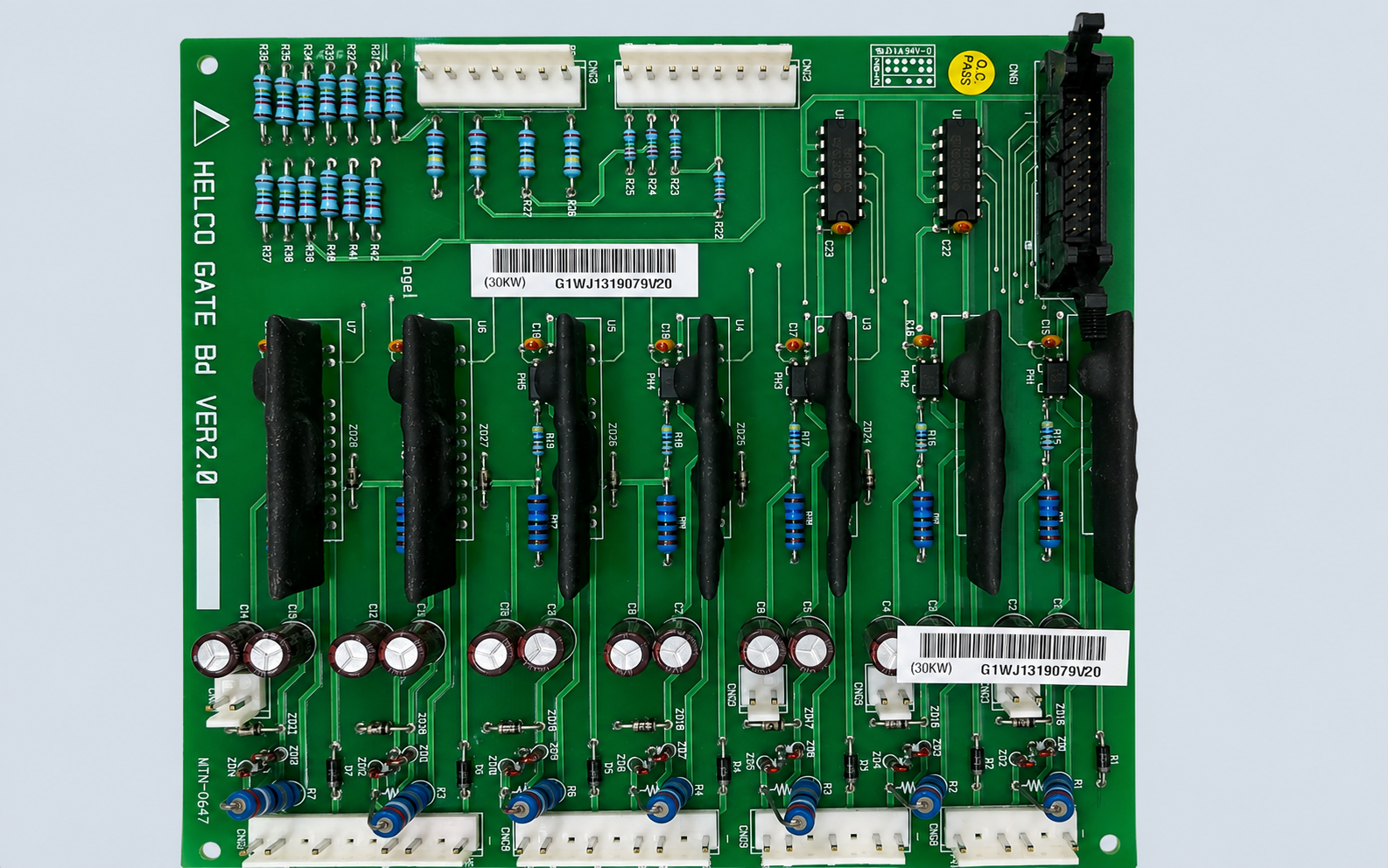

Hyundai HIVD910 HELLO GATE Bd Inverter Gate Board

The Hyundai HIVD910 HELLO GATE Bd is an inverter gate control PCB used within the Hyundai HIVD910 elevator drive system. It forms part of the inverter power control section and should be identified separately from the HIVD910 main control board and power supply board.

Inside the HIVD910 Drive

The GATE Board works as an internal inverter PCB rather than an elevator controller or communication board.

In an HIVD910 drive assembly, different electronic boards perform different functions. For this reason, identifying the original HELLO GATE Bd marking is important when a replacement board is required.

Typical confirmation points include:

• Drive model: HIVD910

• Board marking: HELLO GATE Bd

• Front and rear PCB photos

• PCB revision, if available

• Connector arrangement

• Power module connection layout

• Inverter nameplate

• Required quantity

Do Not Confuse It With the Main Board

The HIVD series uses separate Main Bd, Gate Bd and other inverter electronic modules.

A visually similar PCB from another HIVD model or inverter capacity should not automatically be considered interchangeable. The original board marking and inverter information should be checked together.

FAQ

What is the Hyundai HIVD910 HELLO GATE Bd?

It is a gate control board used inside the Hyundai HIVD910 elevator inverter.

Is the GATE Bd the same as the HIVD910 main board?

No. The Gate Board and Main Board are separate inverter PCB modules with different roles.

What should be checked before ordering?

Please confirm the HELLO GATE Bd marking, PCB revision, connectors and complete HIVD910 inverter nameplate.

For Hyundai HIVD910 HELLO GATE Bd requirements, send us clear photos of the original PCB and inverter nameplate for replacement checking before quotation.
