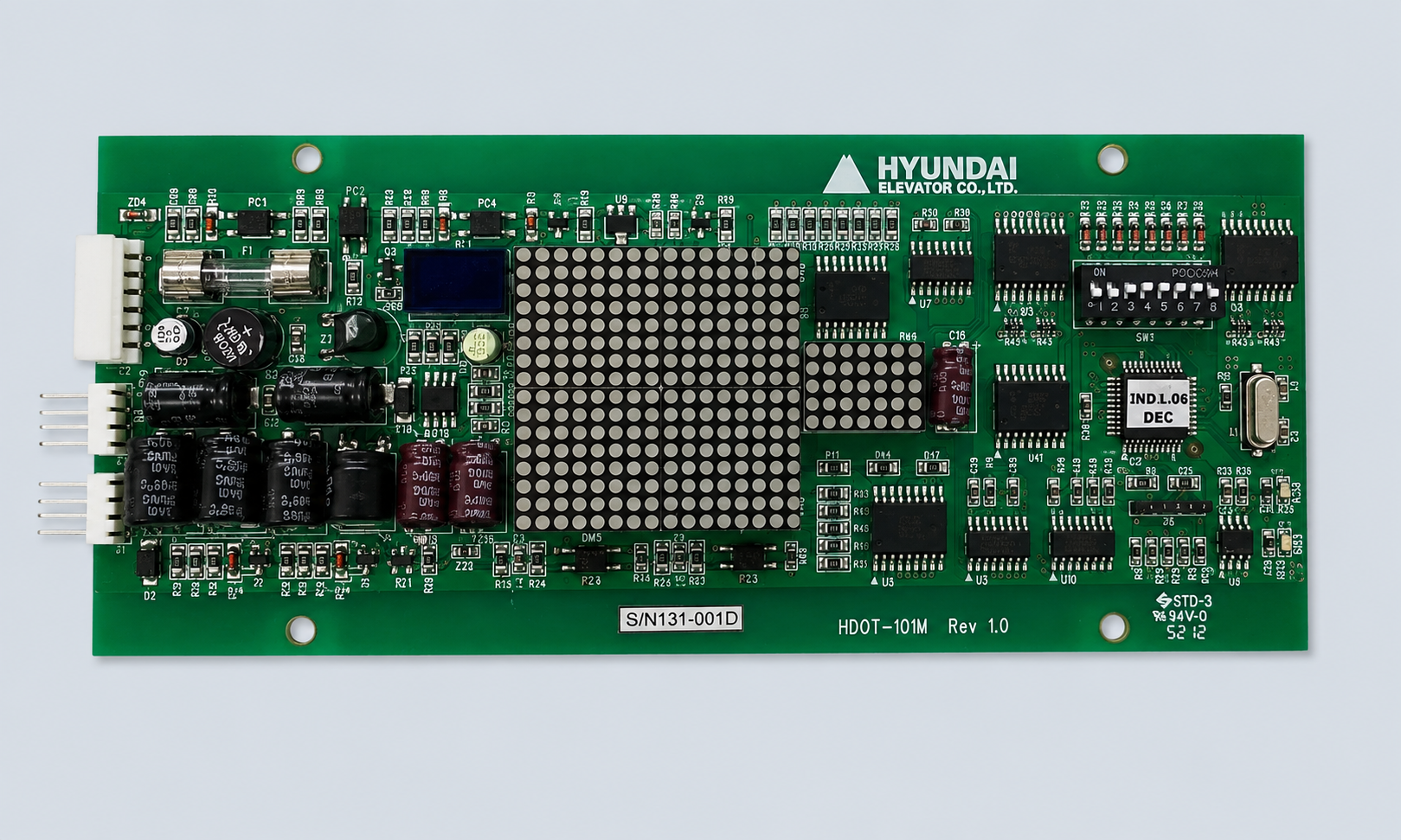

Hyundai STVF-2S HDOT-101M LOP Display Board

The Hyundai STVF-2S HDOT-101M LOP Display Board is a dot-matrix indicator PCB used in elevator landing operating panels. It provides passenger-facing floor and operating information as part of the STVF-2S indication system.

A Dot-Matrix Display for the Landing Panel

HDOT-101M is mainly associated with the elevator LOP rather than the main controller or door control system.

Its LED dot-matrix section is used to present floor and movement information at the landing. When the original indicator has missing display points, unstable indication or PCB damage, the HDOT-101M board may need to be replaced.

Identify the Board by More Than “HDOT”

Hyundai STVF-2S installations use several HDOT-series displays, including other models with similar-looking display sections. The complete HDOT-101M marking should therefore be checked before ordering.

For replacement confirmation, please provide:

• Model: HDOT-101M

• Elevator system: STVF-2S

• Front and rear PCB photos

• Dot-matrix display layout

• Connector positions

• PCB revision, if marked

• Related LOP photo

• Required quantity

FAQ

What is Hyundai HDOT-101M used for?

It is used as a landing floor indicator and LOP display board in Hyundai STVF-2S elevator applications.

Is HDOT-101M an LCD display?

No. HDOT-101M is generally identified as a dot-matrix display board rather than an LCD-type indicator.

Can HDOT-236M replace HDOT-101M?

Not automatically. They are different HDOT display models, so the original PCB model, connector layout and display configuration should be matched separately.

For Hyundai STVF-2S HDOT-101M requirements, send us clear photos of the original display board and complete markings for replacement checking before quotation.
