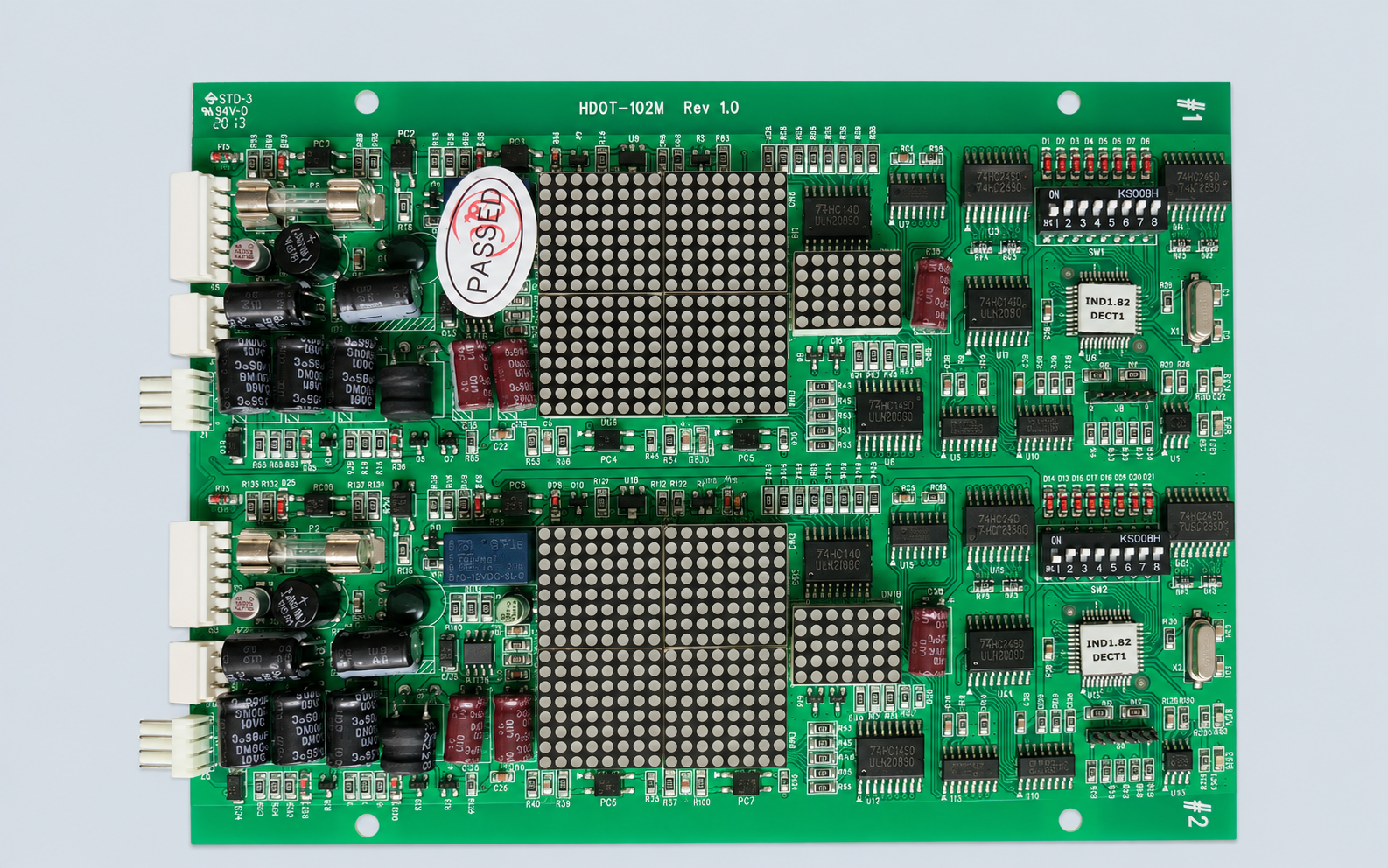

Hyundai STVF-2S HDOT-102M Display Board

The Hyundai STVF-2S HDOT-102M Display Board is a parallel dot-matrix indicator PCB used in Hyundai elevator passenger information systems. It can be found in car and landing operating panel applications where the original display is identified as HDOT-102M.

A Parallel Dot-Matrix Display

HDOT-102M is designed for floor and elevator status indication rather than main elevator control.

Its dot-matrix display section provides passenger-facing information such as floor position and travel status. The board is commonly associated with STVF-2S installations and may be used in COP or LOP display configurations.

A commonly found version is HDOT-102M Rev1.0, although the revision on the existing board should always be checked before replacement.

102M Should Be Confirmed as a Complete Unit

Several Hyundai HDOT-series boards have similar display layouts. When sourcing an HDOT-102M replacement, the model marking should be checked together with the PCB and connectors.

Please provide:

• Model: HDOT-102M

• Elevator system: STVF-2S

• PCB revision

• Front and rear board photos

• Dot-matrix display layout

• Connector arrangement

• COP or LOP installation position

• Additional PCB markings

• Required quantity

FAQ

What is Hyundai HDOT-102M used for?

It is used as a parallel dot-matrix display board for elevator floor and operating status indication.

Can HDOT-102M be used in both COP and LOP applications?

HDOT-102M is listed in the spare-parts market for both COP and LOP display applications. The original installation should be checked when confirming a replacement.

Is HDOT-102M Rev1.0 the only version?

Rev1.0 is a commonly documented version, but the actual revision printed on the existing PCB should be used for replacement confirmation.

For Hyundai STVF-2S HDOT-102M requirements, send us clear photos of the original display board, revision and connector layout for checking before quotation.
