Hyundai STVF-2S HEAB-15(PIM) Inverter Driver Board

The Hyundai STVF-2S HEAB-15(PIM) Inverter Driver Board is an electronic drive PCB used in Hyundai STVF-2S elevator inverter systems. It belongs to the inverter power control section and is commonly associated with 7.5 kW and 15 kW drive configurations.

A PIM Board Inside the Drive System

HEAB-15(PIM) should be treated as an inverter-related board rather than an elevator main controller, display board or communication PCB.

Its identification is closely connected with the drive capacity, making the inverter power rating an important reference when selecting a replacement.

Common identification information may include:

• Model: HEAB-15(PIM)

• Elevator system: STVF-2S

• Power application: 7.5 kW / 15 kW

• PCB revision, if marked

Power Rating Matters

Boards from the same HEAB family may have similar layouts, but the exact drive configuration should be checked before replacement.

For quotation, please provide:

• Complete HEAB-15(PIM) marking

• PCB revision

• Inverter power rating

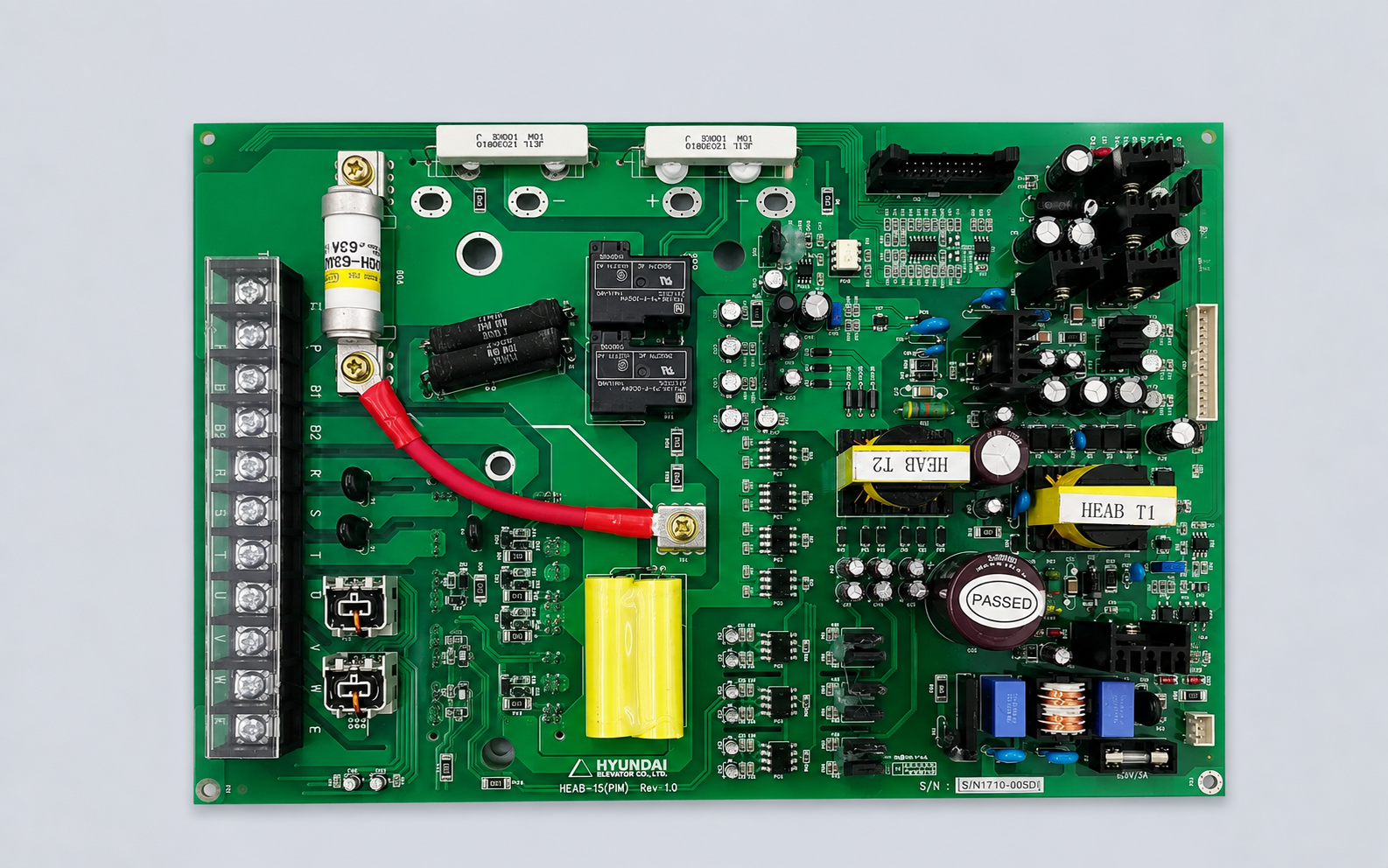

• Front and rear board photos

• Connector arrangement

• Inverter nameplate

• Required quantity

FAQ

What is Hyundai HEAB-15(PIM) used for?

It is used as an inverter driver/PIM board in Hyundai STVF-2S elevator drive applications.

Is HEAB-15(PIM) available for both 7.5 kW and 15 kW?

Yes. Exact spare-parts references list HEAB-15(PIM) for 7.5 kW and 15 kW applications.

Does the PCB revision need to match?

Yes. Rev1.0 is commonly found in the market, but the revision on the original board should be confirmed before replacement.

For Hyundai STVF-2S HEAB-15(PIM) requirements, send us the original PCB photos and inverter nameplate for replacement checking before quotation.
