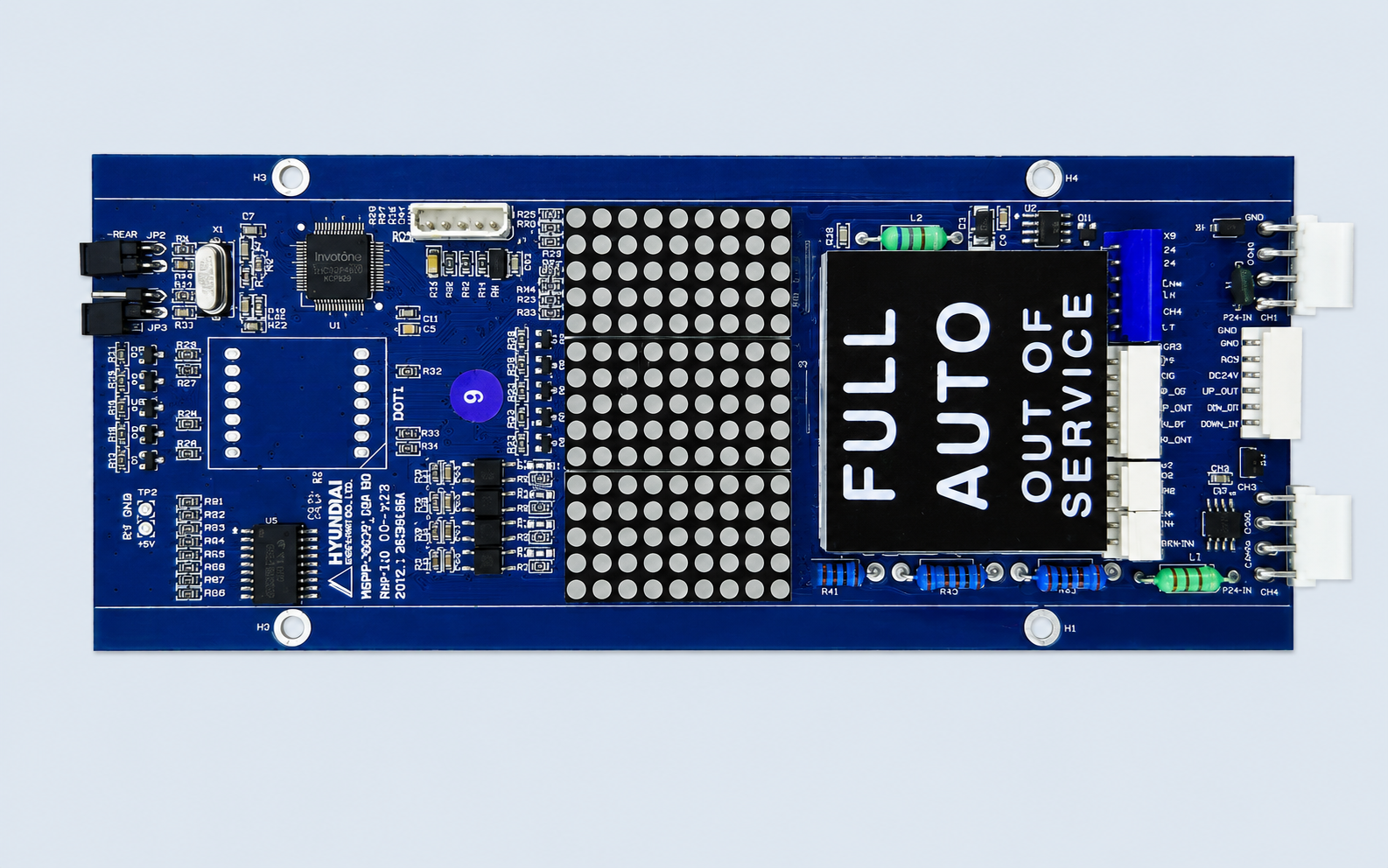

Hyundai WBVF-3DOT_HIP BD Display Board

The Hyundai WBVF-3DOT_HIP BD is an elevator display and hall indicator PCB used in Hyundai elevator indication systems. It is associated with landing display applications and is mainly supplied for maintenance and replacement of an existing WBVF-3DOT_HIP board.

Identified by the Display Board Marking

For this type of Hyundai indicator board, the printed PCB model is an important reference.

The WBVF-3DOT_HIP marking may be found in Hyundai elevator display applications, including systems associated with STVF5, STVF7 and STVF9.

When checking a replacement, compare:

• Board marking: WBVF-3DOT_HIP BD

• Elevator control system

• Front and rear PCB photos

• Display type and layout

• Connector arrangement

• PCB revision or additional label

• Related hall indicator photo

• Required quantity

Replacement in the Hall Indicator System

The board works as part of the elevator floor indication system rather than as a main controller or door control PCB.

If the existing indicator has a display fault or the PCB requires replacement, the original board model and connectors should be used as the main reference.

FAQ

What is the WBVF-3DOT_HIP Board used for?

It is used as an elevator display or hall indicator PCB in Hyundai elevator indication systems.

Can a HIPD-CAN board replace WBVF-3DOT_HIP directly?

Not automatically. Although both are associated with Hyundai hall display applications, the PCB model, revision, display configuration and connectors should be checked before replacement.

What should I send for quotation?

Please send clear photos of the original PCB, display module, connectors and all visible model markings.

For Hyundai WBVF-3DOT_HIP BD requirements, send us the original board information for replacement checking before quotation.
