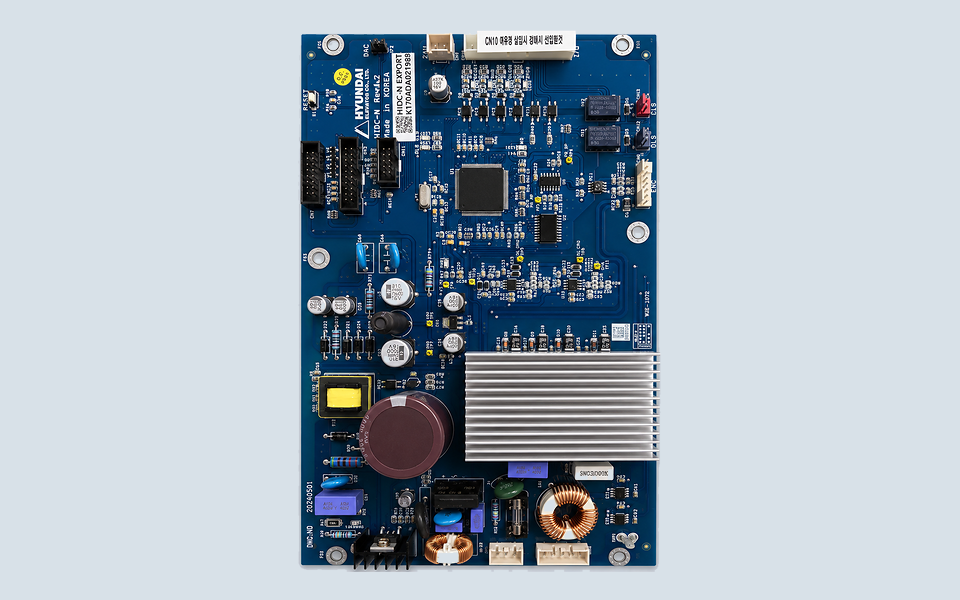

Hyundai STVF7 HIDC-N Rev1.2 Elevator Door Control Board

The Hyundai STVF7 HIDC-N Rev1.2 Elevator Door Control Board is used in the door operator system of Hyundai elevators. It controls and supports door opening and closing operation and is mainly required when the existing HIDC-N board needs repair or replacement.

A common identification marking for this PCB is DWG.NO 20300501.

Check More Than the Model Name

For an HIDC-N replacement, the complete board information should be compared with the original unit. Hyundai HIDC-N boards can be found in different revisions, so the PCB revision and connector configuration are important during part identification.

For STVF7 applications, we recommend checking:

• Board model: HIDC-N

• PCB revision: Rev1.2

• DWG number: 20300501

• Elevator system: STVF7

• Connector positions

• Front and rear PCB photos

• Additional labels or serial markings

• Required quantity

If the original door controller has already been replaced before, send photos of the currently installed board rather than relying only on the elevator model.

FAQ

Is HIDC-N Rev1.2 used with Hyundai STVF7?

Yes. HIDC-N Rev1.2 is commonly used as a door control board in Hyundai STVF7 elevator applications.

Is DWG.NO 20300501 important when ordering?

Yes. The DWG number is a useful identification reference together with HIDC-N and the Rev1.2 marking. Checking all available markings helps avoid selecting the wrong door board.

For Hyundai STVF7 HIDC-N Rev1.2 requirements, send the original PCB photos and identification markings for replacement confirmation before quotation.
