KONE AVDMAT Display Board KM853300G01 G04 G11 G14 KM853303H03

A display board can fit behind the panel and still be the wrong version.

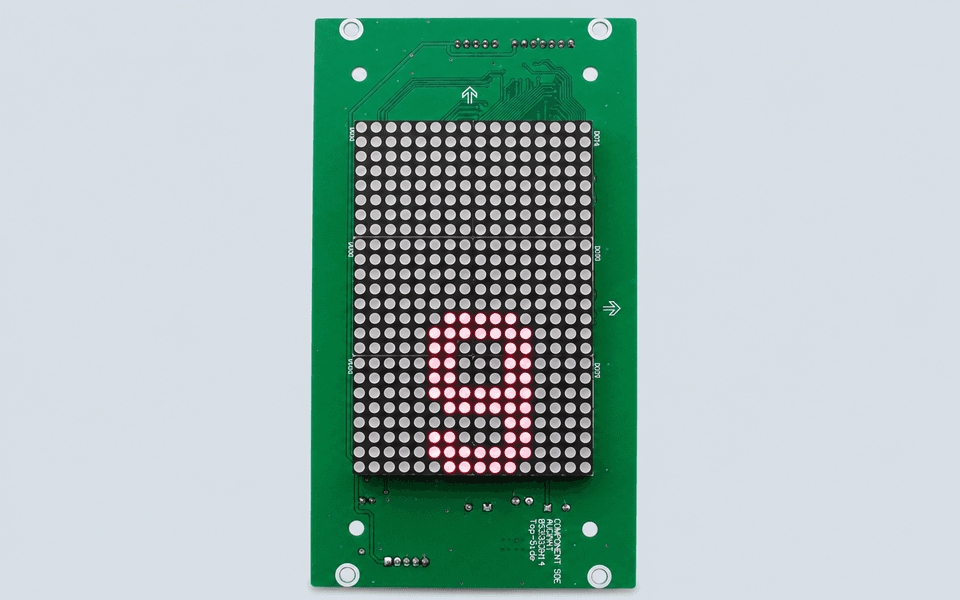

KONE KM853300G01, KM853300G04, KM853300G11 and KM853300G14 belong to the AVDMAT dot-matrix display family used in compatible KONE elevator signalization systems. The PCB itself may carry the reference KM853303H03.

These boards are generally used as two-digit elevator indicators in car operating panels or related display assemblies. However, the display colour and panel application may vary between versions.

Check the Display While It Is Powered

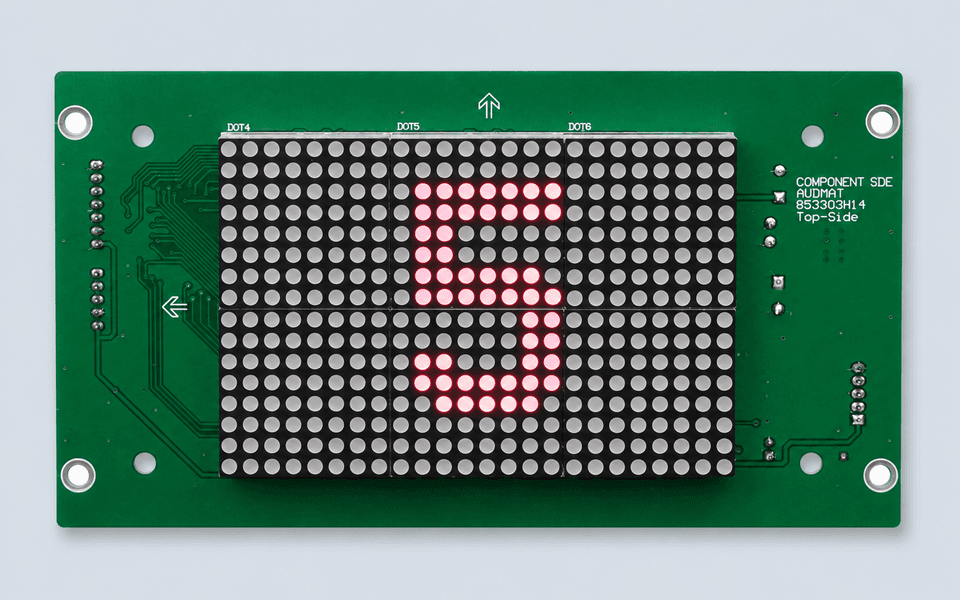

A photograph of the illuminated display is often more useful than a photograph of the unpowered PCB.

Before requesting a quotation, please record:

• complete KM853300Gxx number

• KM853303H03 PCB marking

• red or white illumination

• car panel, landing panel or other installation position

• display size and number of digits

• front and rear PCB photos

• connector position

• faceplate and viewing-window dimensions

• elevator signalization system

• quantity required

KM853300G11 is identified by KONE as a red AVDMAT display, while G04 and G14 are associated with white dot-matrix displays. G01 is commonly supplied as a red COP display version in the replacement-parts market.

Why Colour Is Not the Only Difference

Two AVDMAT boards may have the same overall dimensions but still differ in:

• display colour

• assembly revision

• connector arrangement

• component population

• panel application

• replacement status

• controller compatibility

For this reason, G01, G04, G11 and G14 should not be treated as automatically interchangeable.

When the display is incomplete, flickering or completely dark, technicians should also inspect the panel power supply, communication wiring, plugs and connector terminals before replacing the PCB.

Installation and functional testing should be completed by qualified elevator personnel.

For enquiries from Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain and Italy, please send one illuminated-display photo together with clear photos of both board numbers.

Frequently Asked Questions

Is KM853303H03 the complete spare-part number?

Usually not. KM853303H03 is commonly found as a PCB reference, while KM853300G01, G04, G11 or G14 identifies the complete assembly version.

Are G11 and G14 the same colour?

No. KONE identifies G11 as a red AVDMAT display and G14 as a white AVDMAT display.

Can a red display board replace a white version?

It should not be assumed. Besides colour, the assembly revision, connector arrangement and panel configuration should be checked.

What is the best photo for model confirmation?

Please send one photo while the display is illuminated, one complete PCB photo and close-ups of the KM853300Gxx and KM853303H03 markings.
