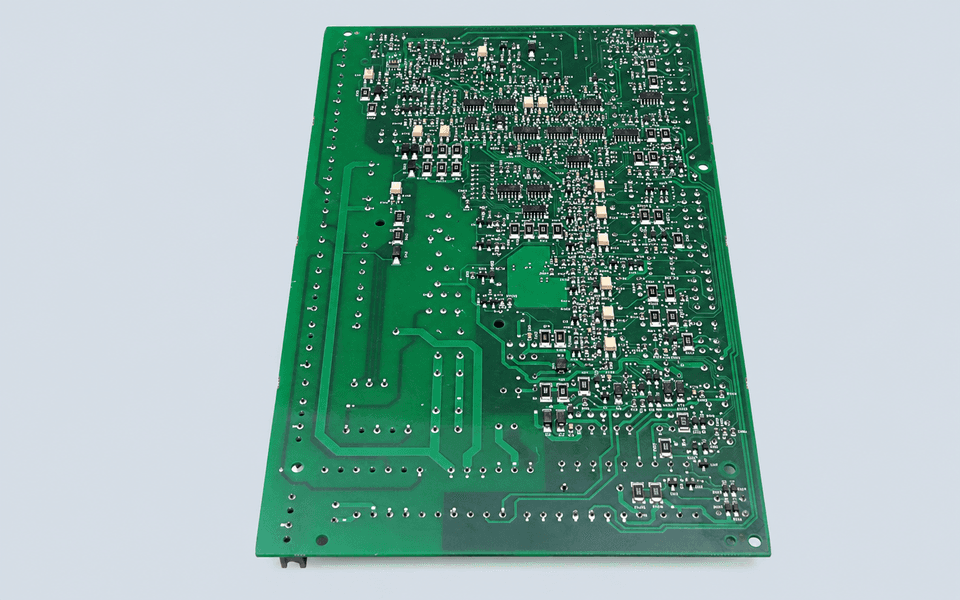

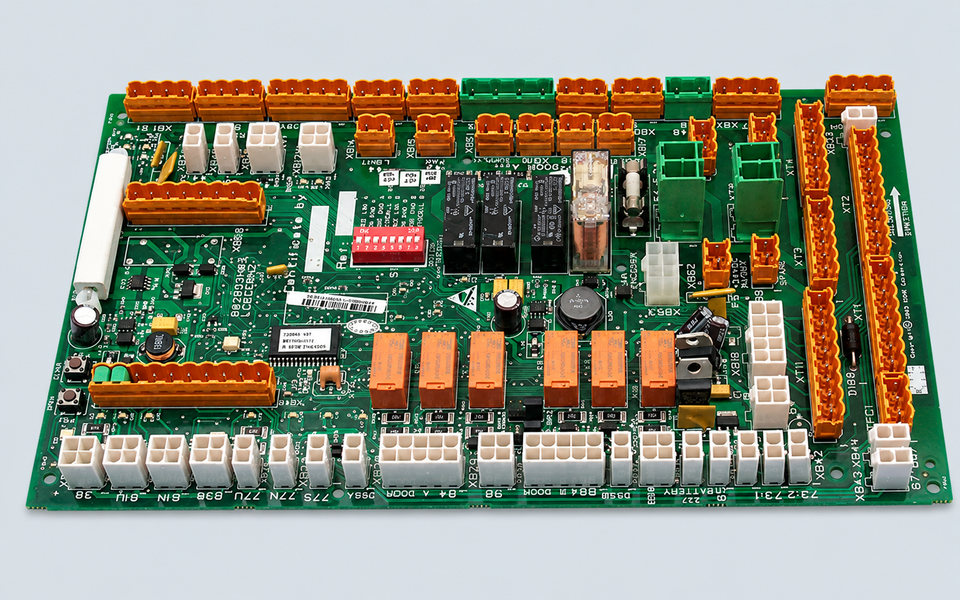

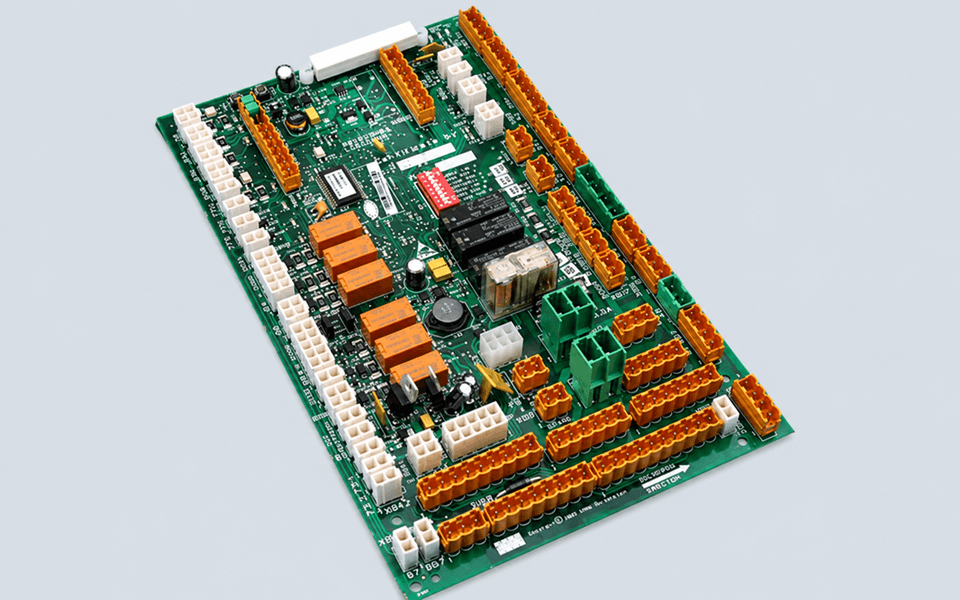

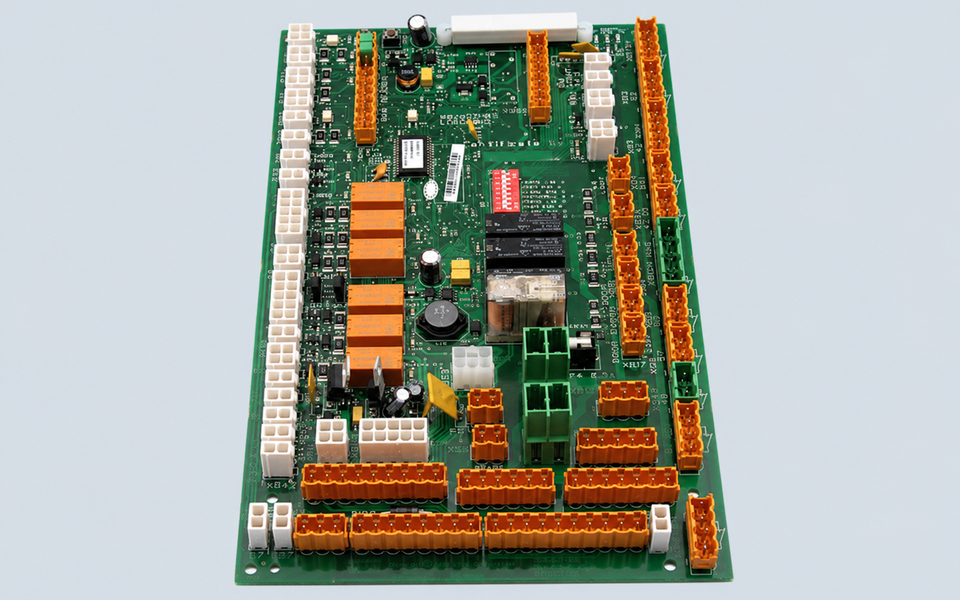

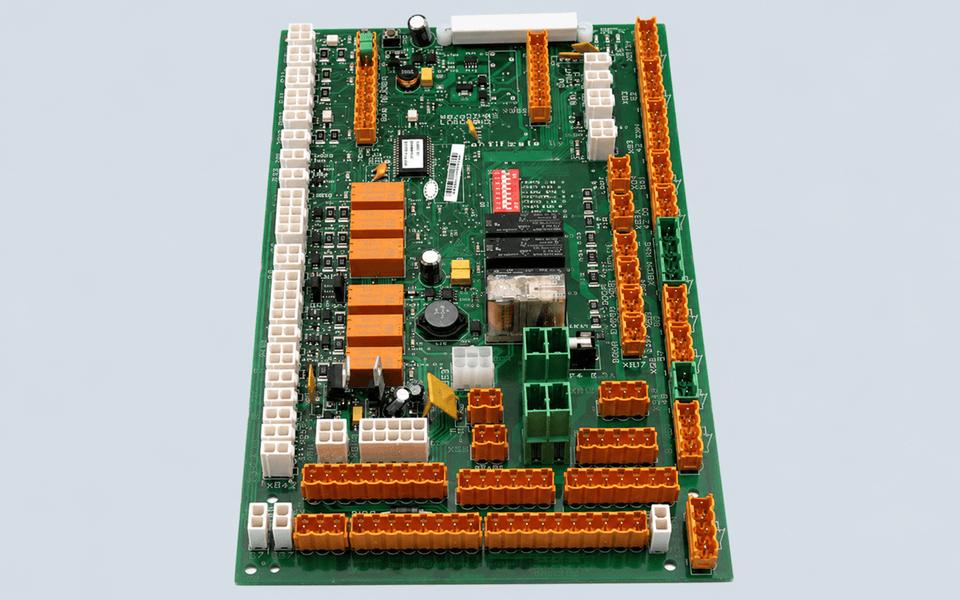

KONE LCECCBN2 Car Connection Board KM802890G11 KM802893H03

KONE KM802890G11 is an LCECCBN2 car connection PCB used in compatible KONE elevator control systems. The original circuit board may also carry the hardware reference KM802893H03.

Rather than being the complete elevator controller, this board is installed as part of the car connection system. KONE parts information also associates KM802890G11 with the KONE Remote Monitoring System and specifies software revision 6.8.5.9 or higher.

Check the Existing Software Before Replacement

This is one of the KONE boards where the software level matters as much as the printed part number.

Before quotation, please provide:

• KM802890G11 assembly label

• KM802893H03 PCB marking

• LCECCBN2 identification

• front and rear PCB photos

• connector arrangement

• car connection box or installation photo

• controller software version

• elevator platform information

• required quantity

KM802890G11 has an official replacement route to KM51070314G11. However, KONE PartsView notes that the controller software must be upgraded to the required revision before the later board replaces the original version.

The plugs, power supply, communication wiring and surrounding modules should also be inspected before installation. Programming and functional testing should be completed by qualified elevator technicians.

Frequently Asked Questions

Is KM802893H03 the complete spare-part number?

Usually not. KM802890G11 is the assembly reference, while KM802893H03 is commonly printed directly on the PCB.

Can KM51070314G11 replace KM802890G11?

It is listed as the later replacement, but the required software revision and controller configuration must be confirmed first.

Is this the same as LCECCBN2e?

No. KM802890G11 belongs to the earlier LCECCBN2 family. KM51070314G11 is the later LCECCBN2e replacement assembly.
