KONE Car Display Board KM863210G02 KM50017286G02 G12

KONE KM863210G02, KM50017286G02, and KM50017286G12 are display-board references used in compatible KONE elevator car indicator systems.

KONE officially identifies KM50017286G02 as an AVD7SC_V Assembly and classifies it as a car indicator unit. Depending on the version, the PCB may also carry references such as KM50017287H02 or 863213H04.

Check the Display Before Removing It

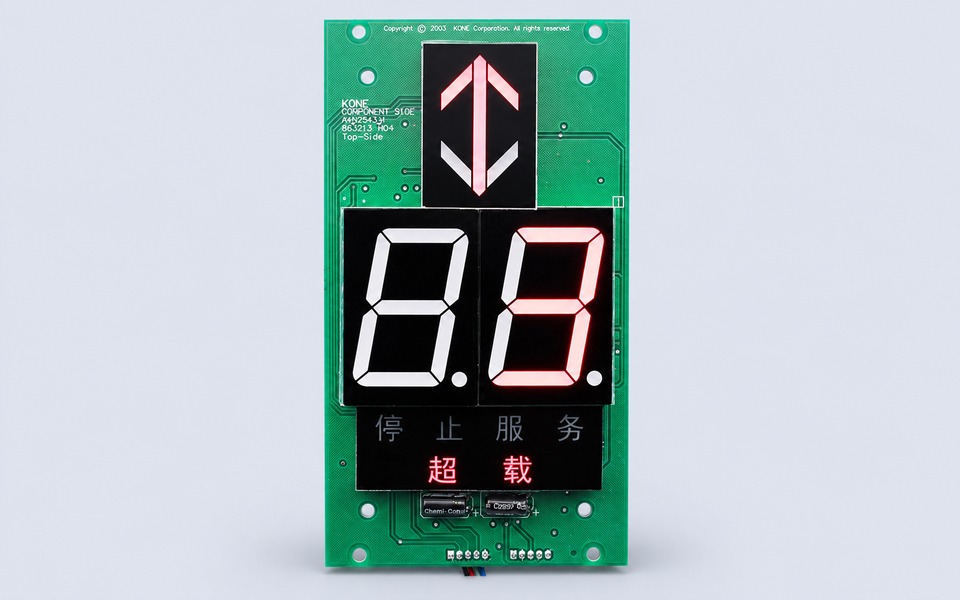

For this product, an illuminated display photo is often more useful than a PCB photo alone. It helps confirm the display colour, character style, floor indication, and installation position.

Before ordering, please provide:

• complete KM863210G02 or KM50017286Gxx label

• KM50017287H02 or 863213H04 PCB marking

• illuminated display photo

• display colour

• number and arrow style

• front and rear PCB photos

• connector quantity and position

• car operating panel photo

• elevator controller information

• quantity required

KM863210G02 and KM50017286G02 are frequently listed together as KONE car display references, but the complete label, PCB revision, connector layout, and display configuration should still be compared before replacement.

Replacement may be required when the floor number is incomplete, the display flickers, direction arrows fail, or the PCB has visible damage. Technicians should also inspect the panel power supply, communication wiring, plugs, and terminals before installing another display board.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, clear photos of the illuminated display and all visible part numbers are recommended before shipment.

FAQ

Is KM50017286G02 a car display board?

Yes. KONE officially identifies it as an AVD7SC_V car indicator assembly.

Is 863213H04 the complete ordering number?

Usually not. It is commonly used as a PCB reference, while KM863210G02 is the related assembly number.

Can KM50017286G02 replace G12 directly?

Not automatically. The complete assembly label, PCB revision, display colour, connector layout, and elevator system should be checked first.

What photos are most useful?

Please send one illuminated-display photo, both sides of the PCB, close-ups of all numbers, and the complete car operating panel.
