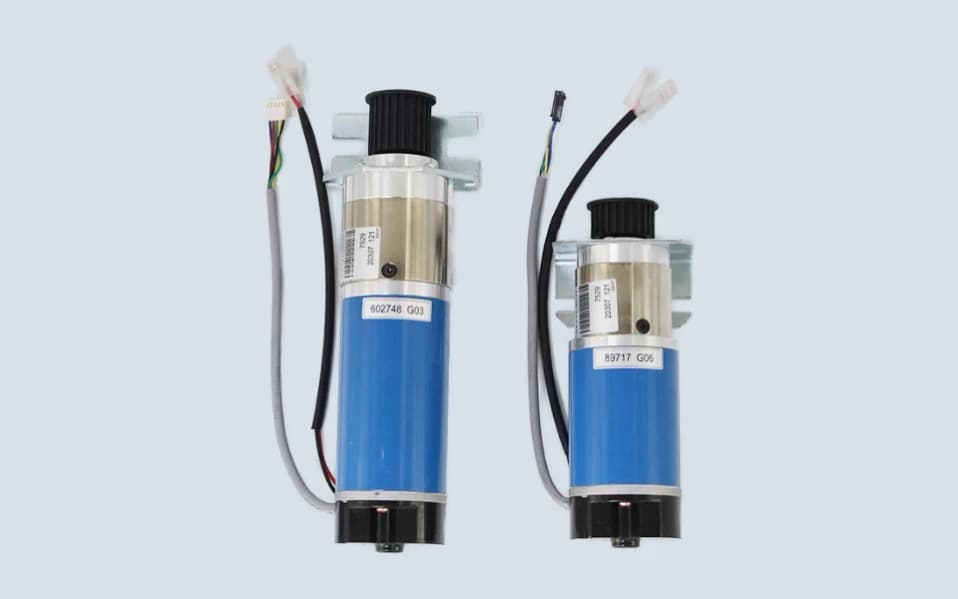

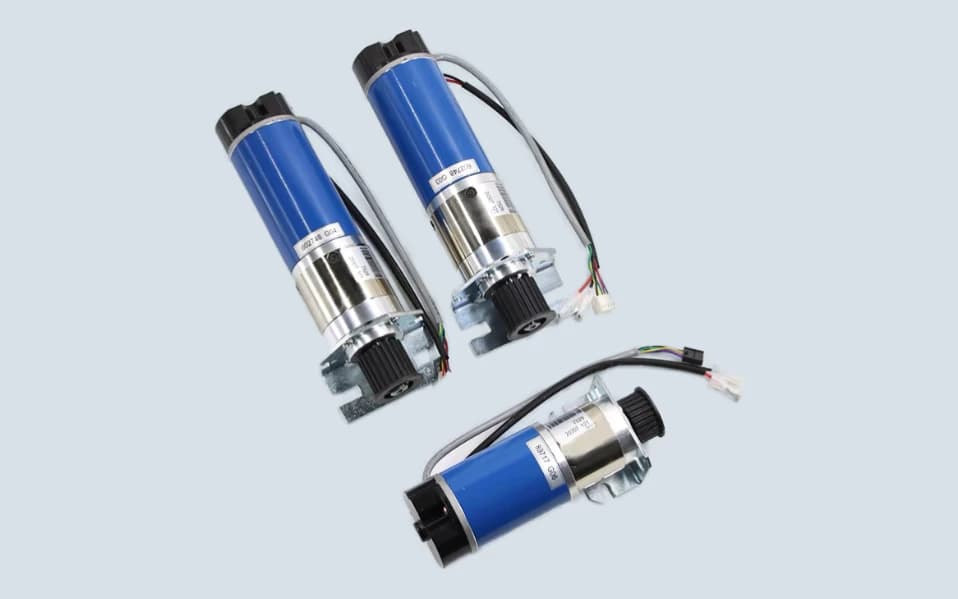

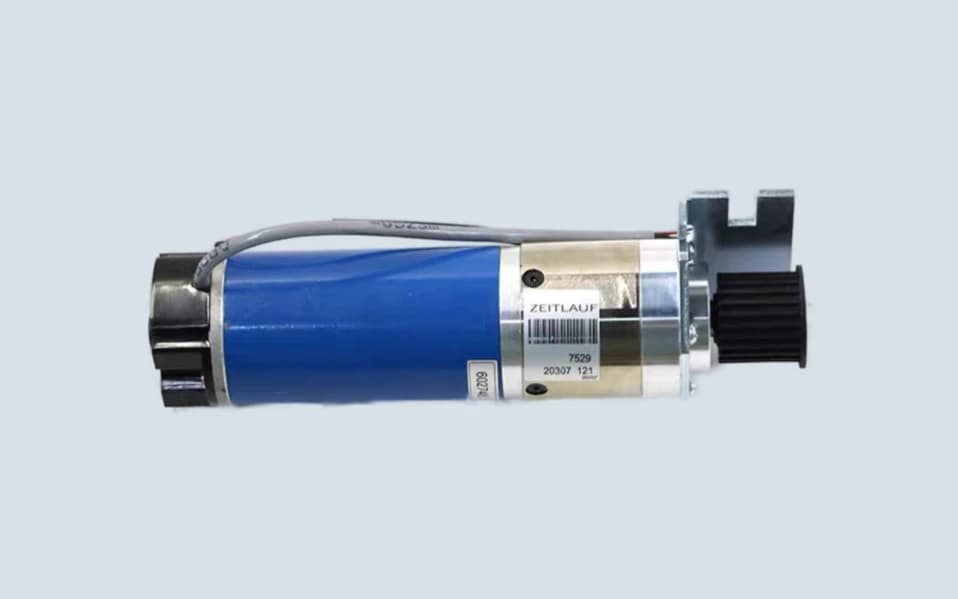

KONE Door Motor KM602748G04 KM602748G03 KM89717G06

KONE Door Motor KM602748G04 / KM602748G03 / KM89717G06 is used in KONE elevator door operator and car door drive applications.

This product is related to the elevator door machine system, where the motor helps drive the opening and closing movement of the car door. In the elevator spare parts market, it may also be searched as:

• KONE Elevator Door Motor
• KONE Lift Door Operator Motor
• KONE Door Operator Geared Motor
• KONE AMD Door Motor
• KONE D1 Door Motor
• KONE Door Motor with Encoder
• KONE Elevator Door Drive Motor

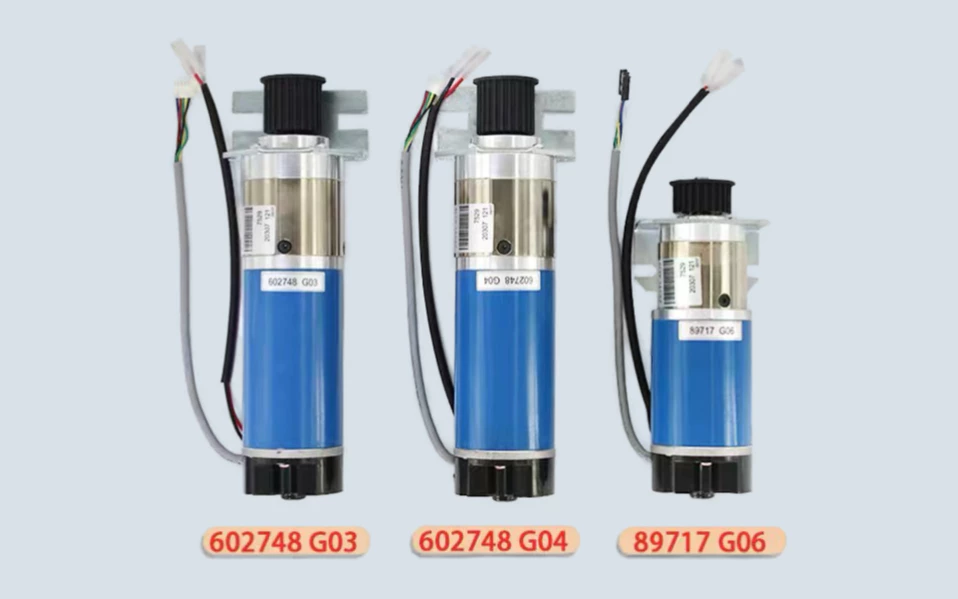

The main model references for this page are:

• KM602748G04
• KM602748G03
• KM89717G06

Related market references may include:

• KM89717G08
• KM89717G04

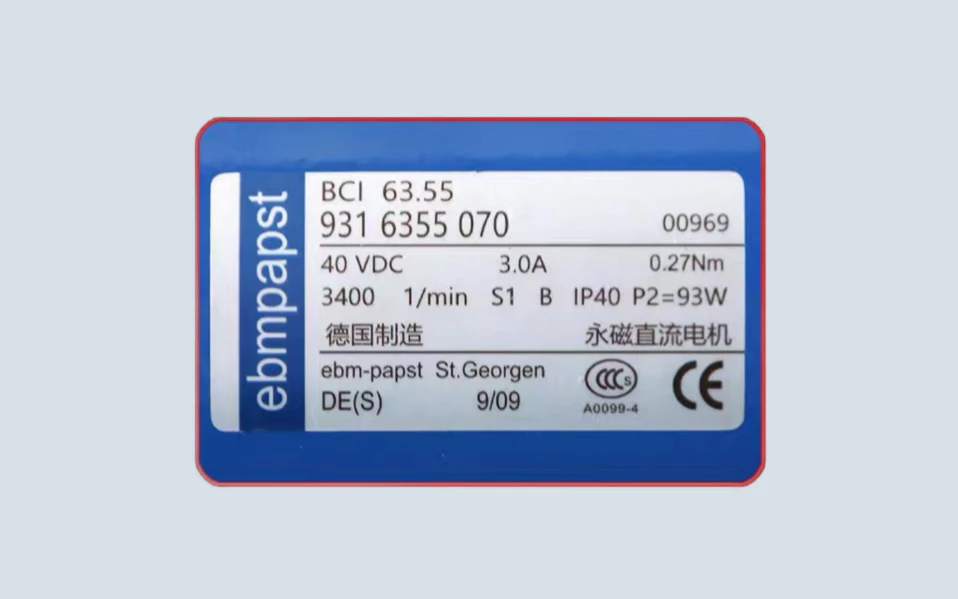

• BCI63.55

These model references are useful for search coverage and quotation confirmation. However, different KONE door motor models should not be treated as automatically interchangeable without checking the original motor label, door operator type, mounting direction, connector structure, and site configuration.

Door Operator Motor Application

This product should be understood as a geared door operator motor, not a main elevator traction motor.

A door motor is responsible for driving the elevator car door movement. It works together with the door operator controller, belt, pulley, hanger rollers, door vane, encoder or feedback signal, and door protection system.

If the wrong door motor is selected, the elevator door may have unstable movement, incorrect opening or closing response, motor noise, poor speed control, or door fault alarms after installation.

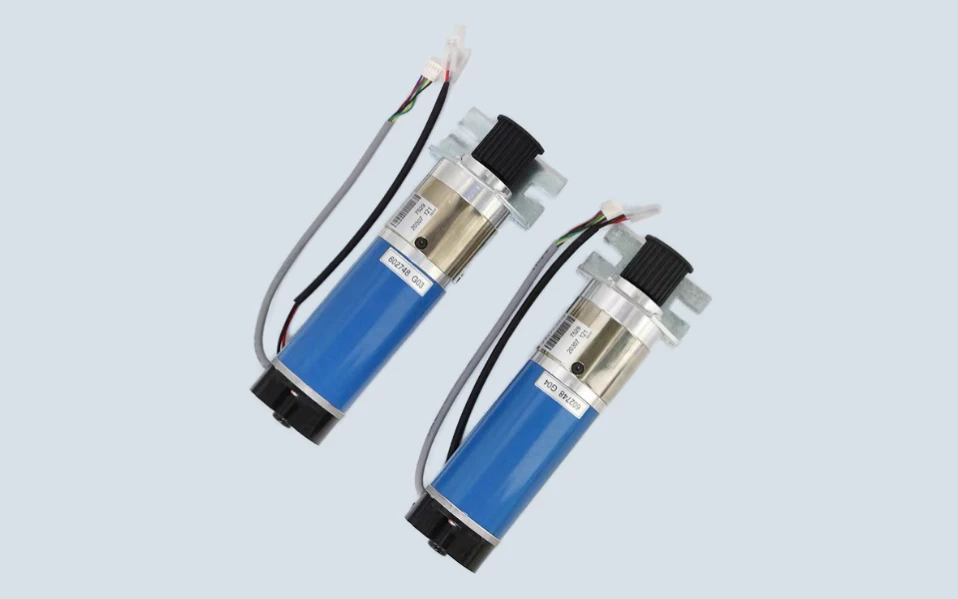

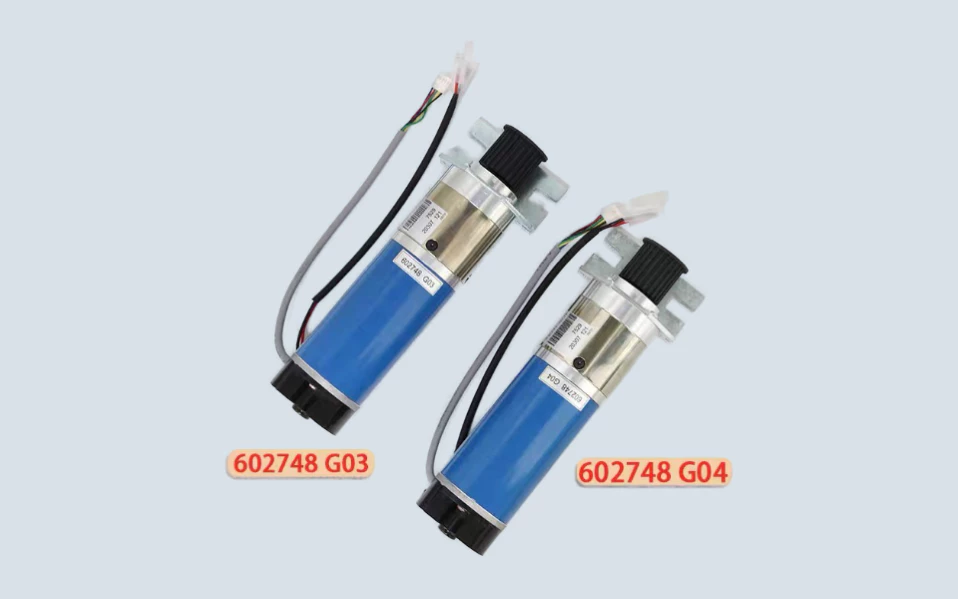

KM602748G04 and KM602748G03 Matching Notes

KM602748G04 and KM602748G03 are commonly connected with KONE AMD door system applications.

When confirming these models, buyers should pay attention to:

• complete KM602748G04 or KM602748G03 marking
• whether the old motor is left-hand or right-hand version
• door operator model
• motor cable and connector type
• geared motor structure
• encoder or feedback connection if available
• mounting position and cable and connector type
• geared motor structure
• encoder or feedback bracket style
• old motor label and door operator photos

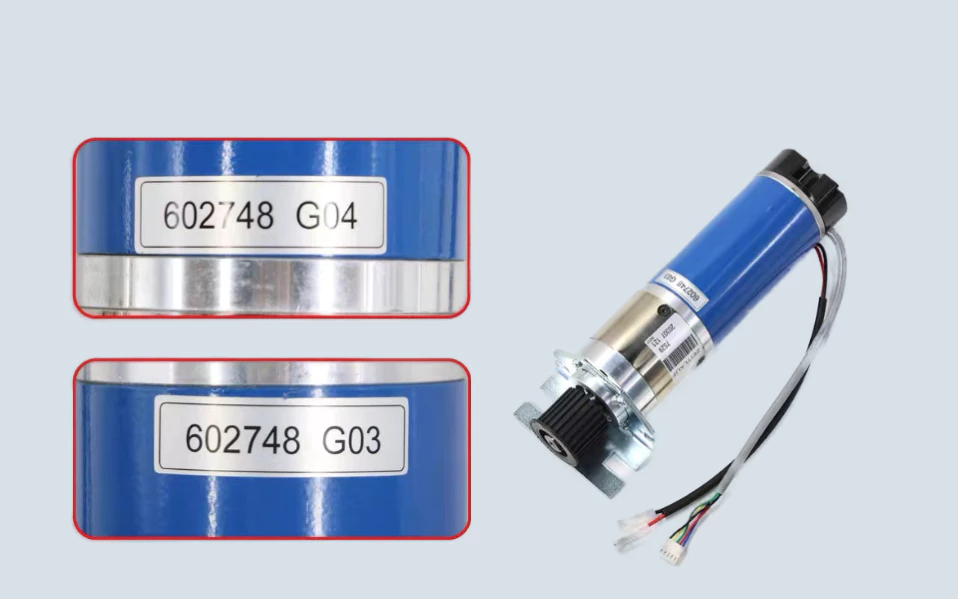

The difference between G03 and G04 should not be ignored. Even when two motors look similar, the direction, cable layout, mounting position, or door system version may be different.

KM89717G06 Matching Notes

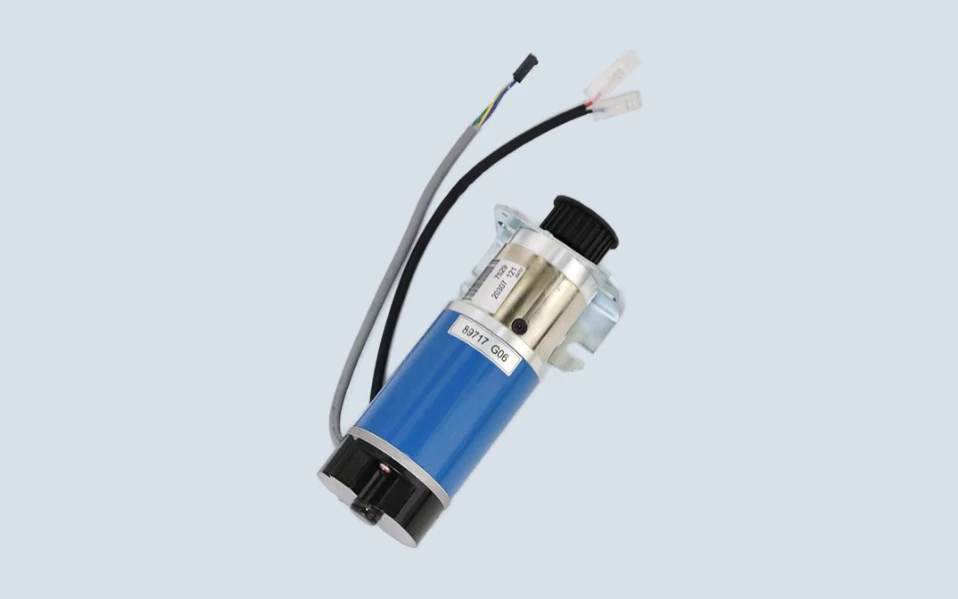

KM89717G06 is usually searched as a KONE geared door motor or D1 door motor reference.

It may appear in door systems different from the KM602748G03 / G04 group, so it should be checked separately. Before ordering KM89717G06, buyers should confirm:

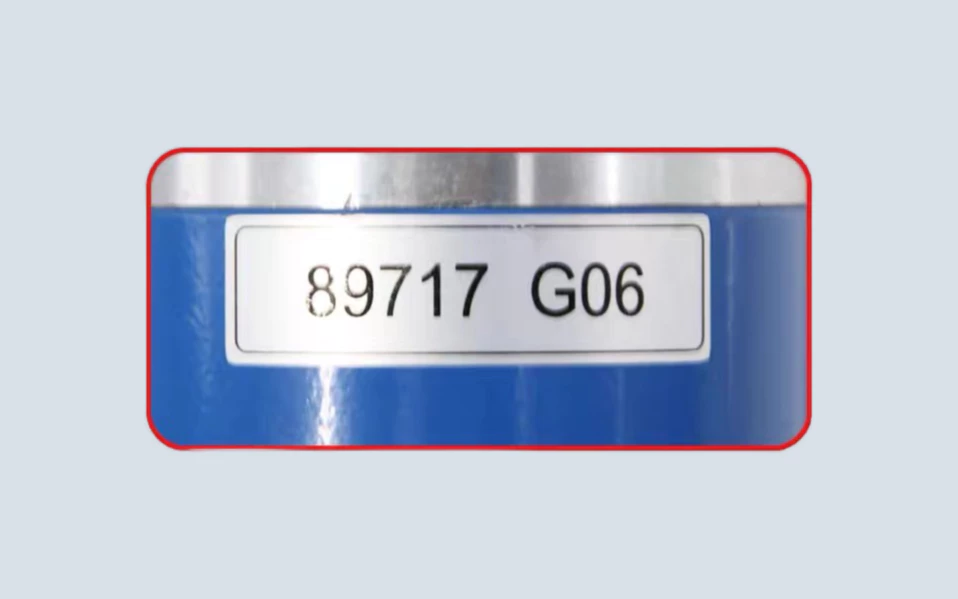

• complete KM89717G06 marking
• door system type, such as D1, ADV, AMD, or related KONE door system
• motor mounting direction
• connector and cable layout
• old motor photos from front, side, and label area
• whether KM89717G04 or KM89717G08 appears in the site document or old part reference

This helps avoid selecting a similar KONE door motor that does not match the original door operator.

Common Door Faults Related to This Motor

Maintenance teams may inspect the KONE door motor when the elevator has problems such as:

• door motor not running
• door opening or closing failure
• unstable door speed
• abnormal motor noise
• door movement hesitation
• repeated door reopening
• door operator fault alarm
• encoder or feedback signal problem

These symptoms are not always caused by the motor itself. The door operator controller, belt tension, rollers, door track, door vane, light curtain, encoder cable, and wiring terminals should also be checked before confirming the motor fault.

Practical Replacement Notes

Do not select KONE door motor KM602748G04 / KM602748G03 / KM89717G06 only by appearance.

KONE door motors may have similar motor bodies, but the gear ratio, mounting direction, cable connector, encoder structure, or door operator compatibility may be different.

For overseas buyers, the safest confirmation method is to provide clear photos of the old motor label, full motor body, connector area, door operator installation position, and any visible door system marking before shipment.

If the motor is used in a modernization or urgent maintenance project, please also provide the elevator model and door operator photos so the correct KONE door motor version can be checked more accurately.
