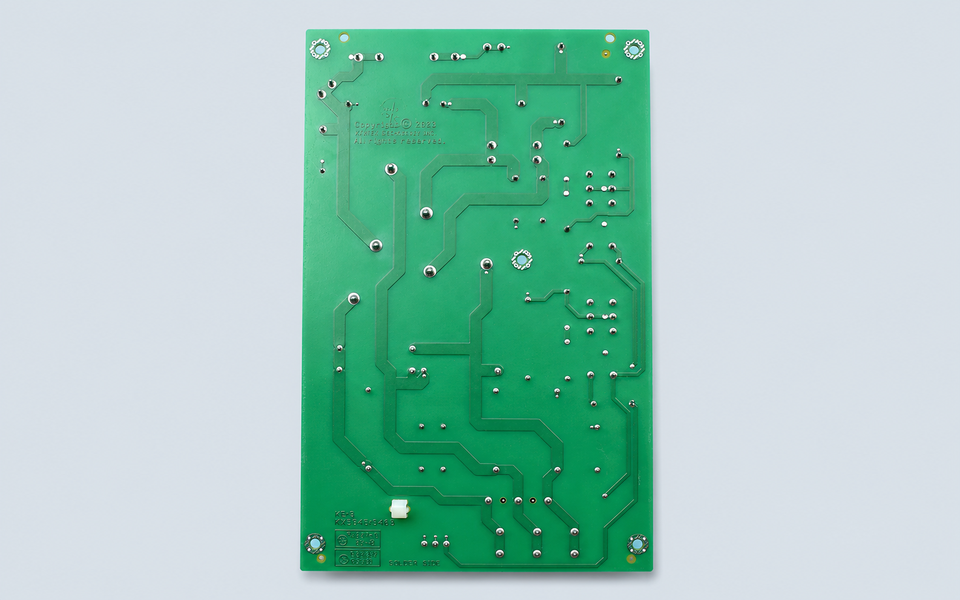

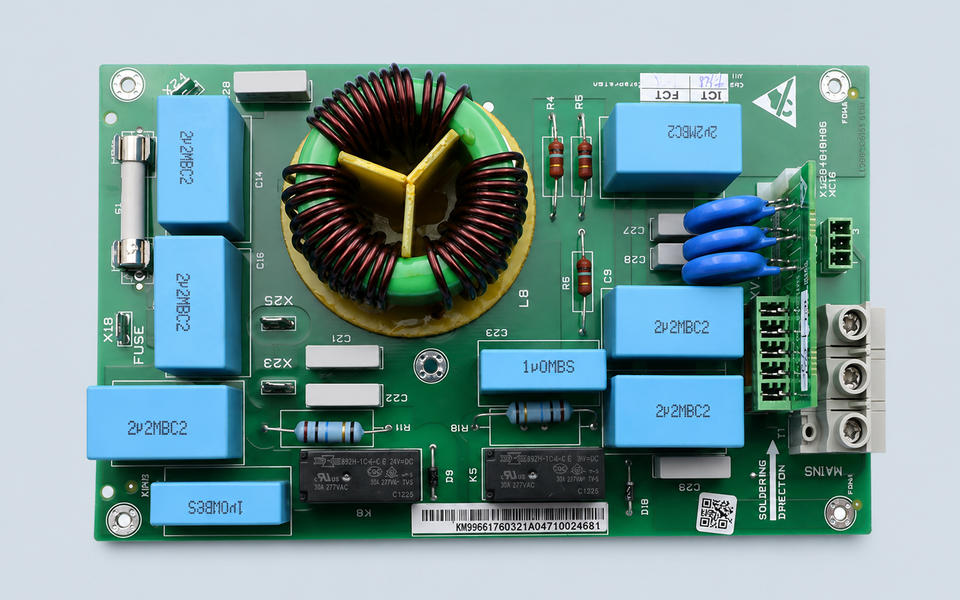

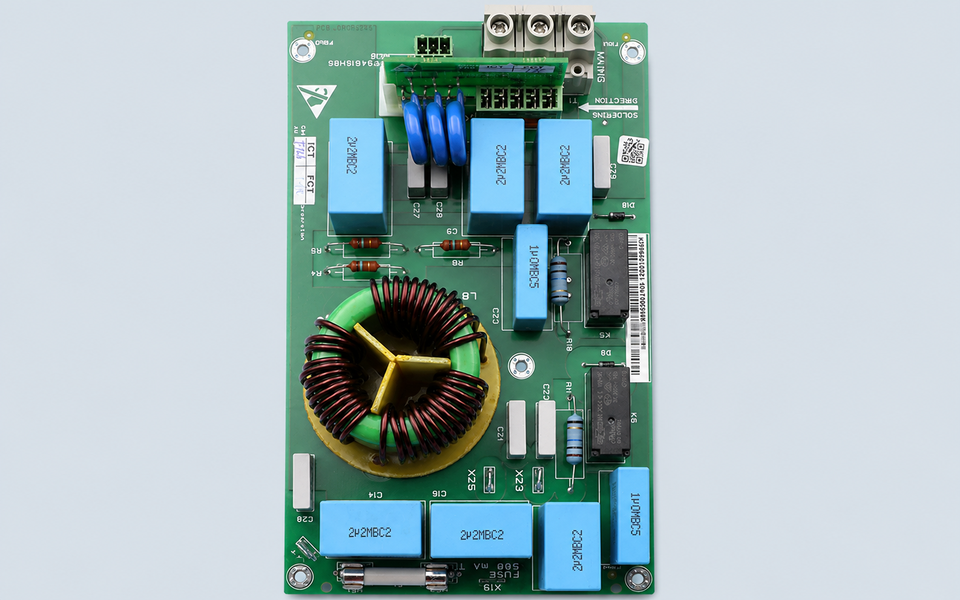

KONE KDL16L Inverter Board KM964615G21 / KM964615G22 / KM964616H06

KONE KDL16L Inverter Board KM964615G21 / KM964615G22 / KM964616H06 is used in compatible KONE elevator drive and inverter system maintenance.

This part is normally requested when the old KONE KDL16L drive system has an inverter board, MC16 board, add-on board, or related PCB that needs replacement. Unlike a general elevator control board, this product should be confirmed together with the drive module, old board label, connector layout, and site fault information.

Customers may search this item as:

• KONE KDL16L Inverter Board

• KONE KM964615G21

• KONE KM964615G22

• KONE KM964616H06

• KDL16L MC16 Board

• KONE Elevator Inverter Board

• KONE Drive Module PCB

• KONE Elevator Spare Parts

Check the Drive System, Not Only the Board Number

For this product, KDL16L is the key system reference. The board number KM964615G21, KM964615G22, or KM964616H06 should be checked from the old PCB label or printed marking. A similar-looking board may still have different connector definitions, software version, or drive system matching.

Useful confirmation details include:

• old board label photo

• KM964615G21, KM964615G22, or KM964616H06 marking

• KDL16L drive module photo

• front and back PCB photos

• connector and plug close-ups

• installation position inside the drive unit

• elevator fault code or drive alarm

• damaged, burned, or corroded area if visible

This board may be requested when the elevator has drive faults, inverter communication issues, unstable running, no drive output, damaged PCB components, or error indications related to the KDL16L system. If the fault remains after replacement, technicians should also check the drive module, power supply, brake circuit, motor wiring, encoder feedback, grounding, and related control boards.

For buyers in Saudi Arabia, Jordan, Egypt, UAE, Kuwait, Brazil, Chile, Spain, and Italy, clear photos of the old KDL16L drive, PCB label, connectors, and fault information are recommended before shipment. This helps reduce wrong supply and supports faster KONE elevator maintenance work.

FAQ

Are KM964615G21, KM964615G22, and KM964616H06 interchangeable?

Not automatically. The old board number, KDL16L drive version, connector layout, and site configuration should be confirmed before replacement.

Is this a normal KONE control cabinet board?

No. This page is mainly for KDL16L drive or inverter-related board replacement, so the drive module and fault condition should be checked together.

What should I send before quotation?

Please send the old PCB label, KDL16L drive photo, front and back board photos, connector close-ups, and elevator fault information.
