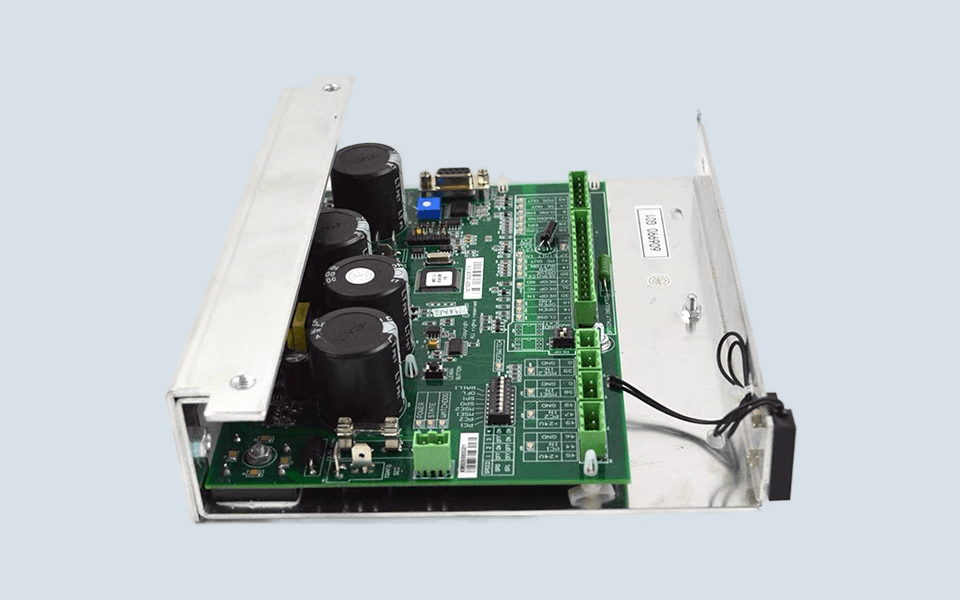

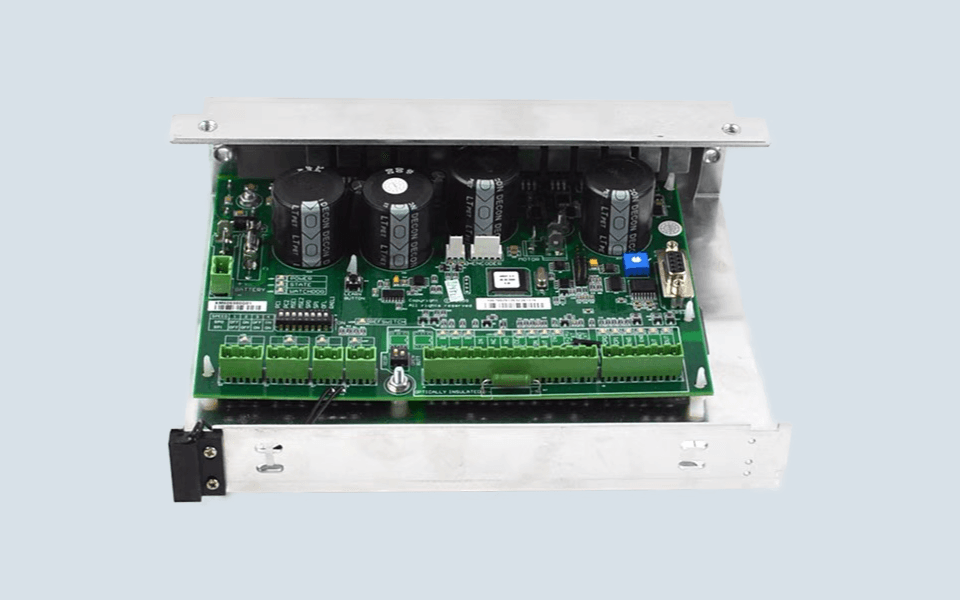

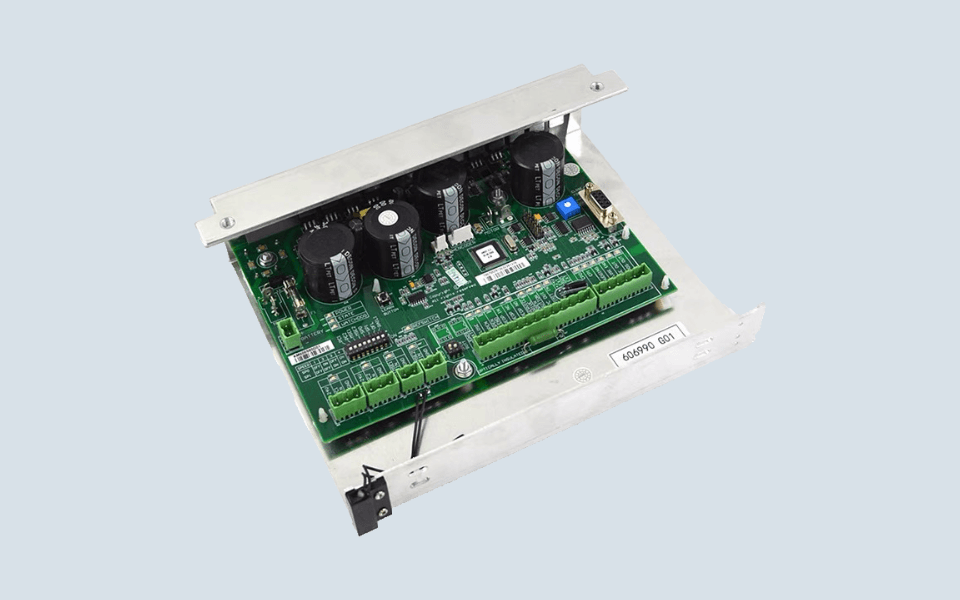

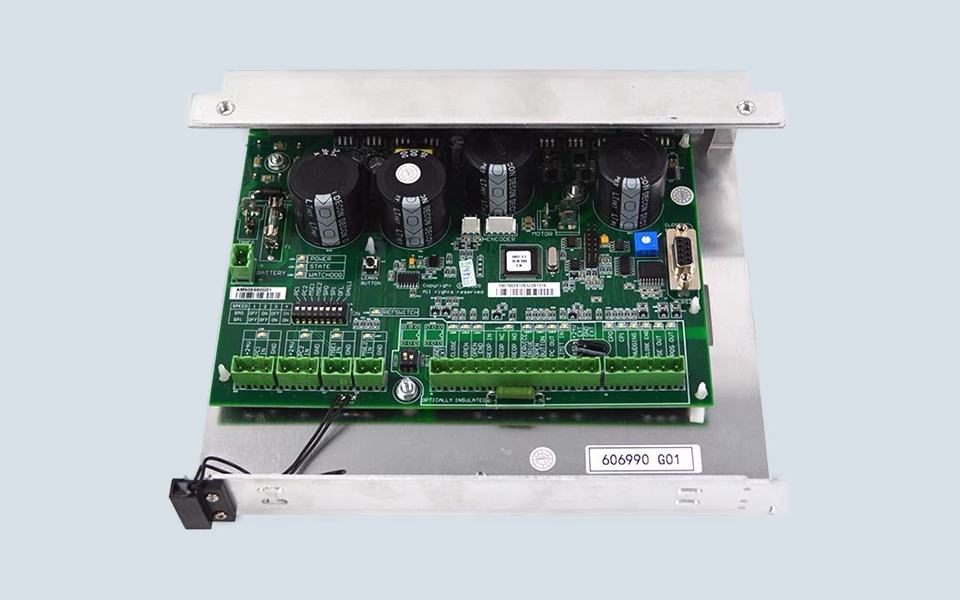

KONE Door Drive Control PCB KM606990G01

KONE Door Drive Control PCB KM606990G01 is used in KONE elevator automatic door operator control applications.

This product is related to the electrical control side of the elevator door system. It should not be confused with a KONE door motor. The motor drives the physical door movement, while KM606990G01 is more closely related to door motor control, door drive response, and door operator signal processing.

In the elevator spare parts market, this product may also be searched as:

• KONE Door Controller Board KM606990G01
• KONE Elevator Door Controller KM606990G01
• KONE Door Machine Board KM606990G01
• KONE Door Drive PCB
• KONE Door Motor Control Board
• KONE Elevator Door Control PCB
• KONE Lift Door Operator Board
• KONE Elevator Door Machine PCB

The main model reference for this page is:

• KM606990G01

Related references may include:

• KM606980G01
• 606990G01
• SLKNDS11001S01

These references are useful for search coverage and quotation confirmation. However, the final replacement should still be confirmed by the old controller label, door operator system, connector layout, and site wiring condition.

Positioned Around Door Drive Control

KM606990G01 should be described as a door drive control PCB or door machine board.

It may work with the door motor, door operator mechanism, door belt, pulley, door vane, light curtain, door lock signal, and controller wiring. When this board does not match the original door operator system, the elevator door may fail to open, fail to close, move unstably, or show repeated door faults.

This is why the product should not be selected only by the general name “door controller board.” The complete KM number on the old unit is the safest reference.

KM606990G01 and KM606980G01

KM606990G01 is often found together with KM606980G01 in market listings for KONE door machine boards and door drive PCB replacement.

This does not mean the two models are automatically interchangeable. In real maintenance work, one number may refer to a related board version, supplier reference, or similar door control group. The old board label should be checked before quotation.

Before ordering, buyers should confirm:

• complete KM606990G01 marking on the old board
• whether KM606980G01 appears on the old PCB or document
• whether SLKNDS11001S01 appears as a related part number
• front and back photos of the PCB
• connector quantity and connector direction
• door operator installation position
• old electronic box or control board photo
• door motor model if available
• existing door fault description from the technician

If the old label is unclear, photos of the complete door operator box and connector side are more useful than only providing the elevator model.

Different From Other KONE Door Controller Boards

KM606990G01 should have its own product page.

It should not reuse the same description as KM606050G01, KM606060G01, KM603800G01, KM602810G02, or KM606040G01. These products are all related to KONE door control, but they may belong to different door controller groups, electronic box structures, internal PCB versions, or door operator systems.

KM606990G01 is better positioned as a KONE door drive control PCB or door machine board. This helps buyers identify the product by the exact old board number instead of confusing it with other KONE AMD door controller references.

Door Fault Situations

Maintenance teams may inspect KM606990G01 when the elevator door has problems such as:

• door motor not responding
• door opening failure
• door closing failure
• unstable door movement
• repeated door reopening
• door stops before fully closed
• door operator fault indication
• visible PCB or connector damage

These symptoms are not always caused by the door drive PCB itself. The door motor, encoder or feedback signal, belt tension, pulley, hanger rollers, door track, light curtain, door lock signal, connector terminals, and door operator wiring should also be checked before confirming the board fault.

Practical Supply Notes

Do not select KM606990G01 only by appearance.

KONE door machine boards may look similar, but the internal board version, connector definition, door system compatibility, and control logic may be different. After replacement, technicians may need to check door learning, opening and closing response, door protection input, motor wiring, and controller signal condition.

For overseas buyers, sending clear photos of the original KM606990G01 board, KM606980G01 marking if visible, connector area, door machine box, and complete door operator system is the safest way to reduce wrong supply before shipment.
