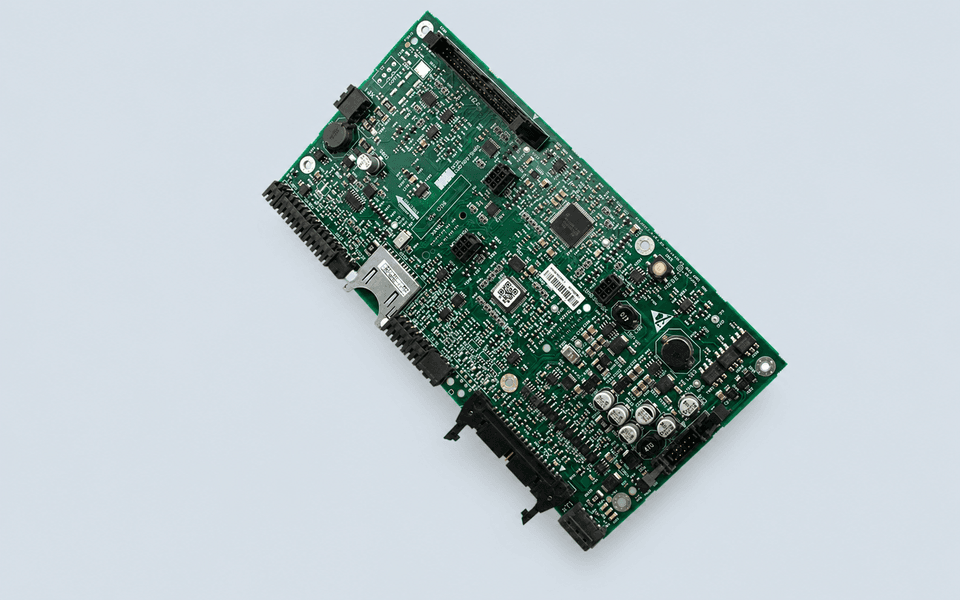

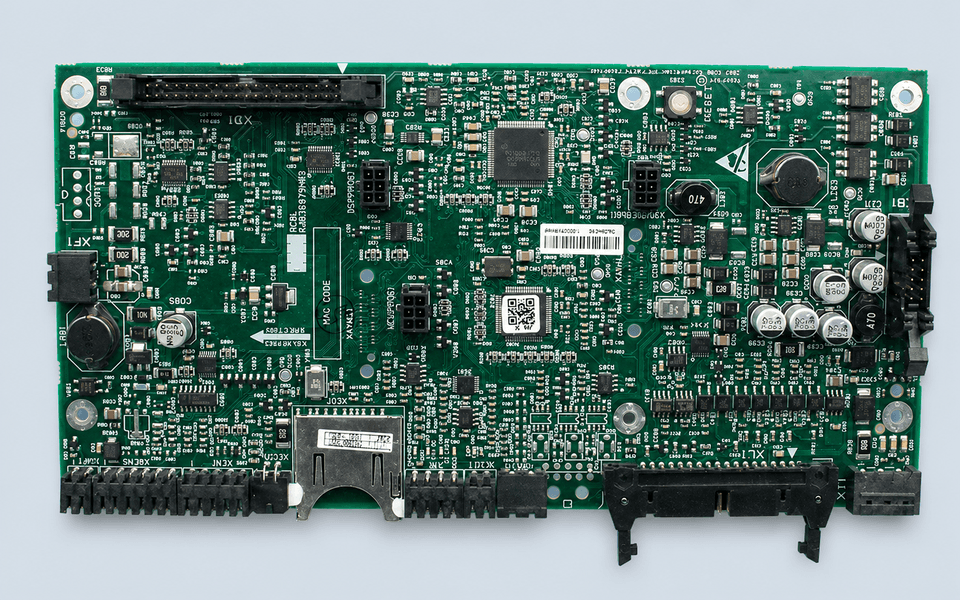

KONE KDL16L Drive PCB Module KM936078G04N / KM936078G01 / KM936079H09

KONE KDL16L Drive PCB Module KM936078G04N / KM936078G01 / KM936079H09 is used in compatible KONE KDL16L elevator drive and inverter system maintenance.

This part is normally requested when the old KDL16L drive has a damaged PCB module, inverter-related board, or electrical control section that requires replacement. Because drive system boards are closely connected with power output, motor control, encoder feedback, braking control, and communication signals, the exact old board number should be checked carefully before ordering.

This product may be searched as:

• KONE KDL16L Drive PCB Module

• KONE KM936078G04N

• KONE KM936078G01

• KONE KM936079H09

• KDL16L Inverter PCB Board

• KONE Elevator Drive Board

• KONE Elevator Inverter Spare Parts

For this item, the full printed number matters. KM936078G04N, KM936078G01, and KM936079H09 may refer to different versions or related PCB modules used within the KDL16L drive system. They should not be treated as automatic substitutes unless the old board, drive module, connector layout, and site configuration are confirmed.

Key confirmation points include:

• old PCB label photo

• KM936078G04N, KM936078G01, or KM936079H09 marking

• KDL16L drive nameplate or module label

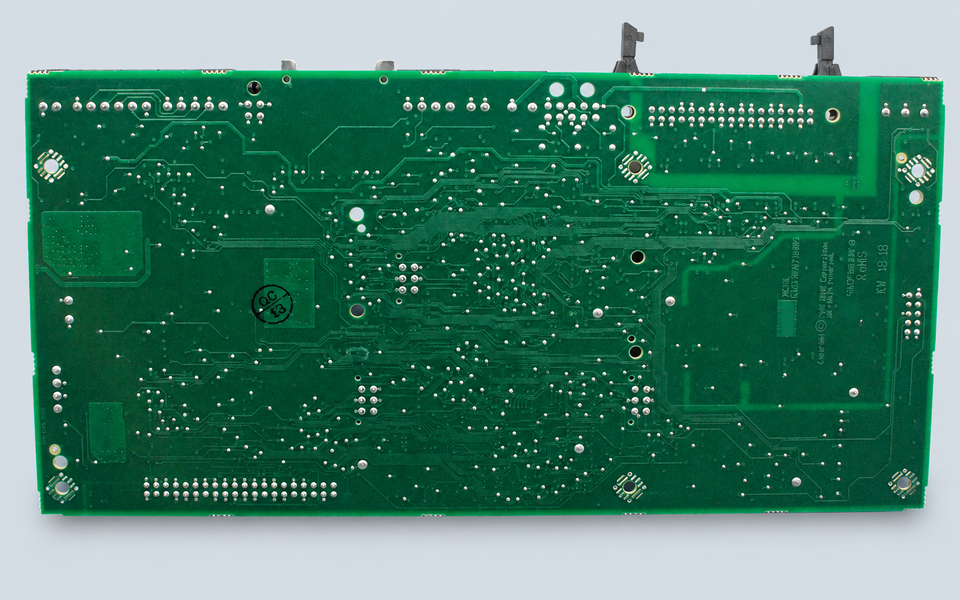

• front and back PCB photos

• connector and plug close-ups

• installation position inside the drive unit

• drive alarm or elevator fault code

• burned, corroded, or damaged component area if visible

This board may be replaced when the elevator has drive faults, inverter alarms, unstable running, no output, communication problems, motor control errors, or visible PCB damage. If the same fault remains after replacement, technicians should also check the main drive module, power supply, brake circuit, motor wiring, encoder cable, grounding, and related control boards.

For buyers in Saudi Arabia, Jordan, Egypt, UAE, Kuwait, Brazil, Chile, Spain, and Italy, clear photos of the old KDL16L drive, PCB label, connectors, and fault information are recommended before shipment. This helps reduce wrong supply and supports faster KONE elevator drive maintenance.

FAQ

Can KM936078G04N, KM936078G01, and KM936079H09 replace each other?

Not automatically. The old board number, drive version, connector layout, and elevator site configuration should be checked before replacement.

What should I send before quotation?

Please send the old PCB label, KDL16L drive photo, front and back board photos, connector close-ups, and drive fault information.

Is this the same as a normal elevator control board?

No. This part is related to the KDL16L drive or inverter system, so motor, brake, encoder, and drive fault conditions should be checked together.
