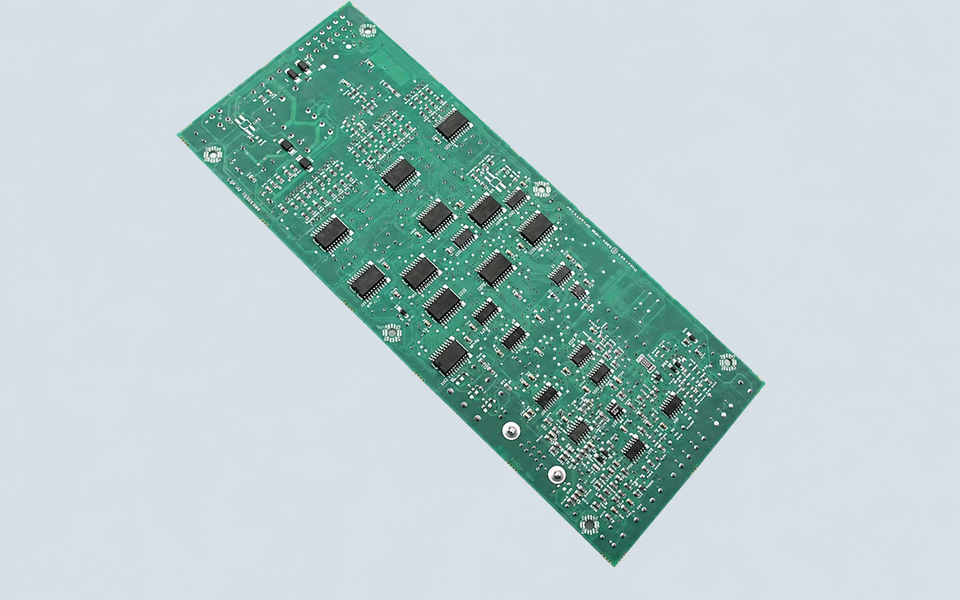

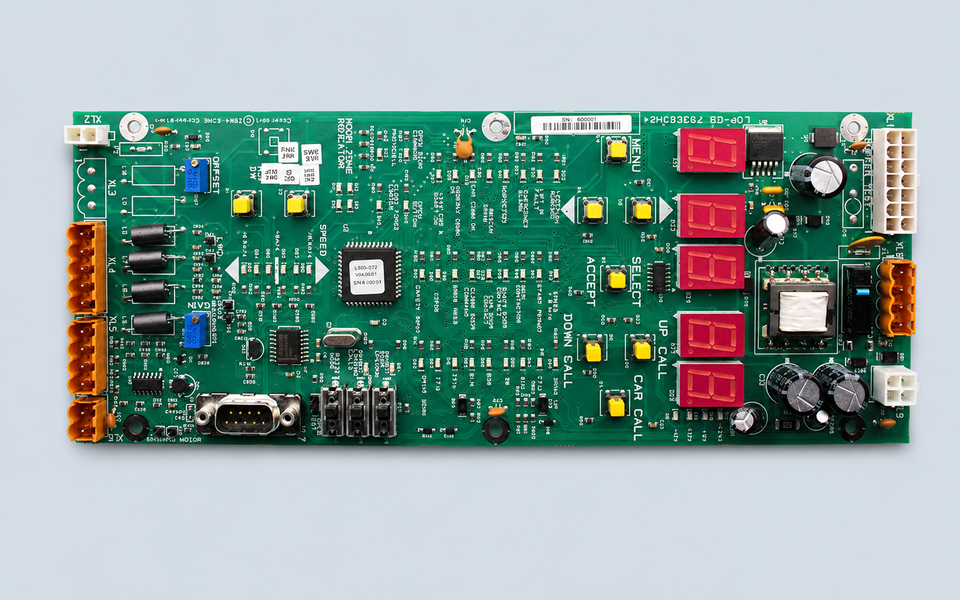

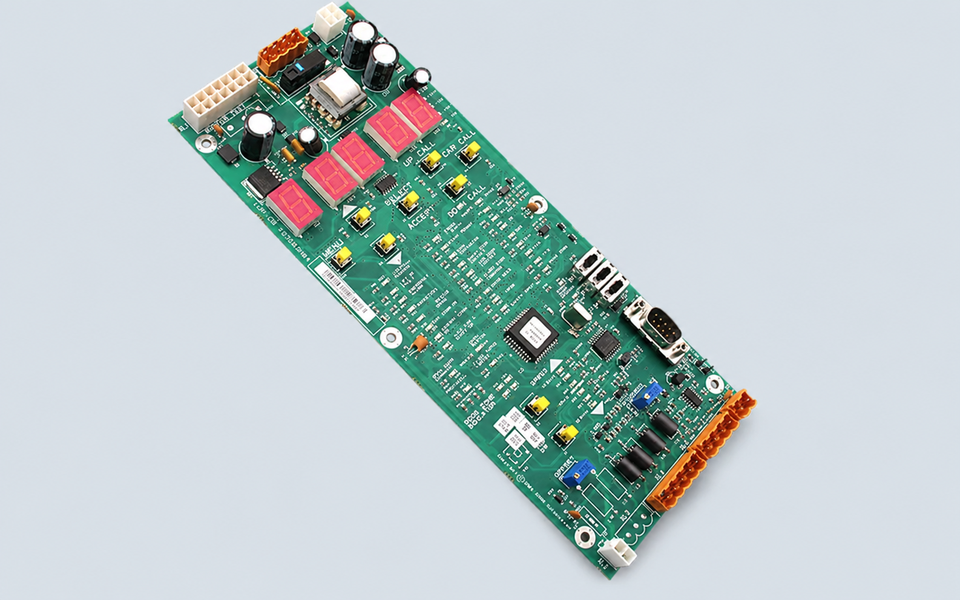

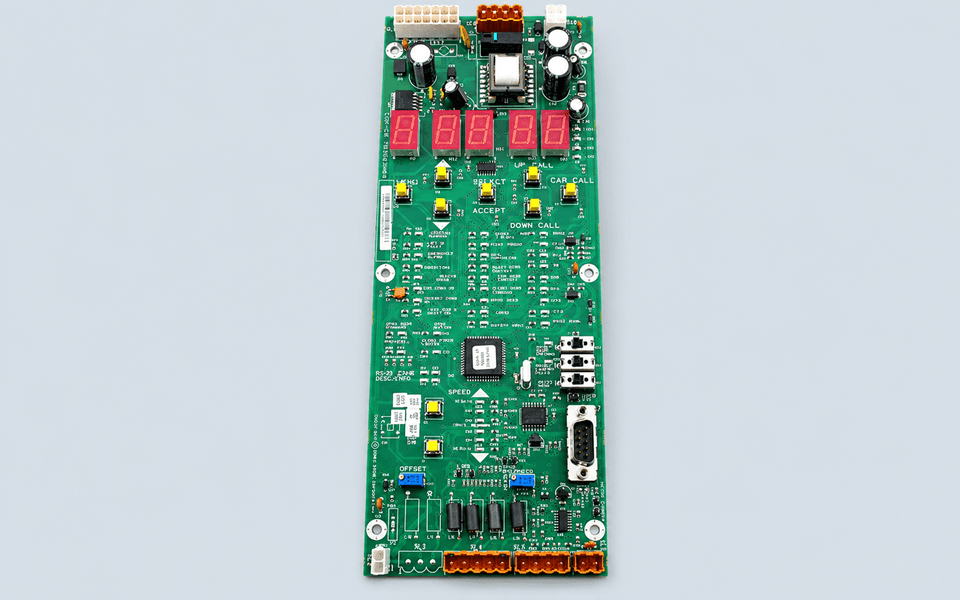

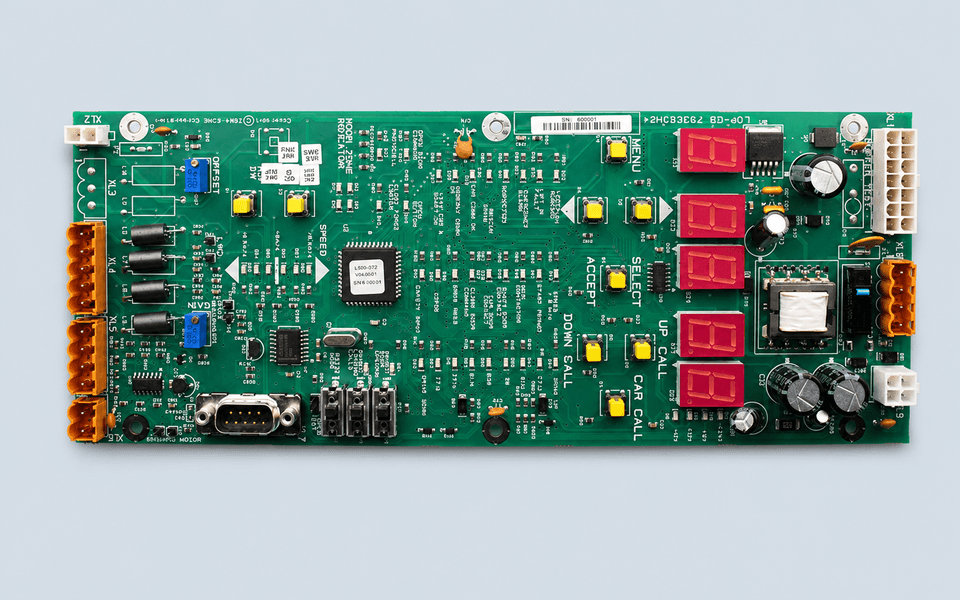

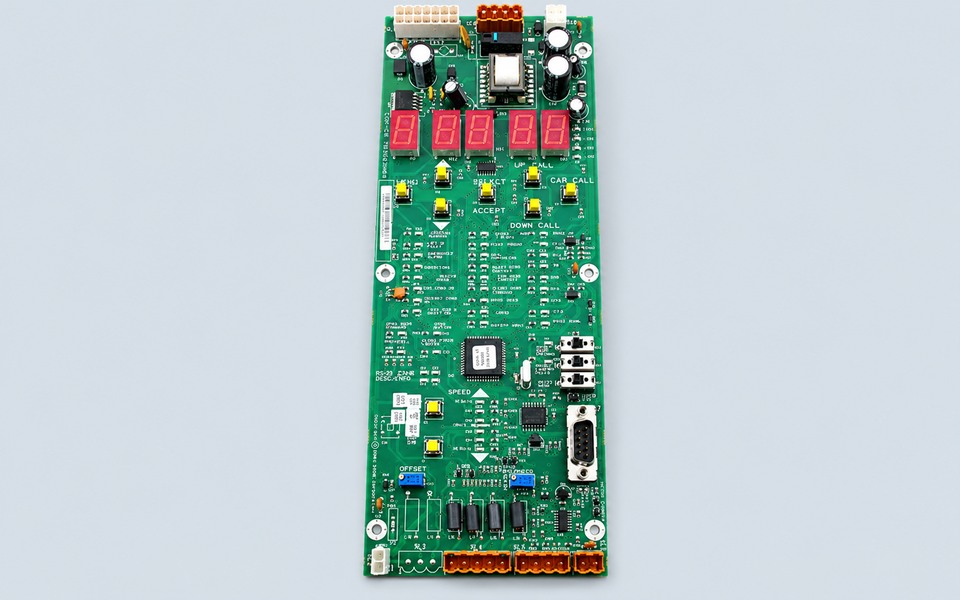

KONE LOP-CB Assembly KM763600G01 G02

The name Land Operating Panel can be misleading when this part is first requested.

KONE KM763600G01 and KM763600G02 are not complete landing call panels with buttons and a faceplate. They are LOP-CB electronic assemblies used within compatible KONE LCE elevator control systems. KONE officially lists both references as Land Operating Panel, LOP-CB Assembly.

Check the Board Behind the Panel

The easiest way to confirm this item is to compare the board removed from the elevator rather than relying only on the words “landing operating panel.”

Please provide:

• KM763600G01 or KM763600G02 label

• LOP-CB marking

• complete front and rear PCB photos

• connector arrangement

• any additional PCB number

• original installation position

• elevator controller or platform

• visible repair or damaged areas

• required quantity

KM763600G01 and G02 belong to the same LOP-CB family, but they should not be assumed to be automatically interchangeable. The original assembly number, connector layout and elevator configuration should be checked before replacement.

Before installing another board, technicians should inspect the connected plugs, panel wiring, power supply and communication connections. Functional testing should be completed by qualified elevator personnel.

For orders from Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain and Italy, one full-board photo together with a clear label close-up normally provides enough information for preliminary matching.

Frequently Asked Questions

Is KM763600G01 a complete landing operating panel?

No. It is officially classified as an LOP-CB PCB assembly, not the complete panel enclosure, buttons or faceplate.

Can KM763600G01 replace KM763600G02?

Not automatically. The original G-number, board layout, connectors and installed elevator system should be checked first.

What should I send before quotation?

Please send the old board label, photos of both PCB sides, connector close-ups and the elevator controller information.
