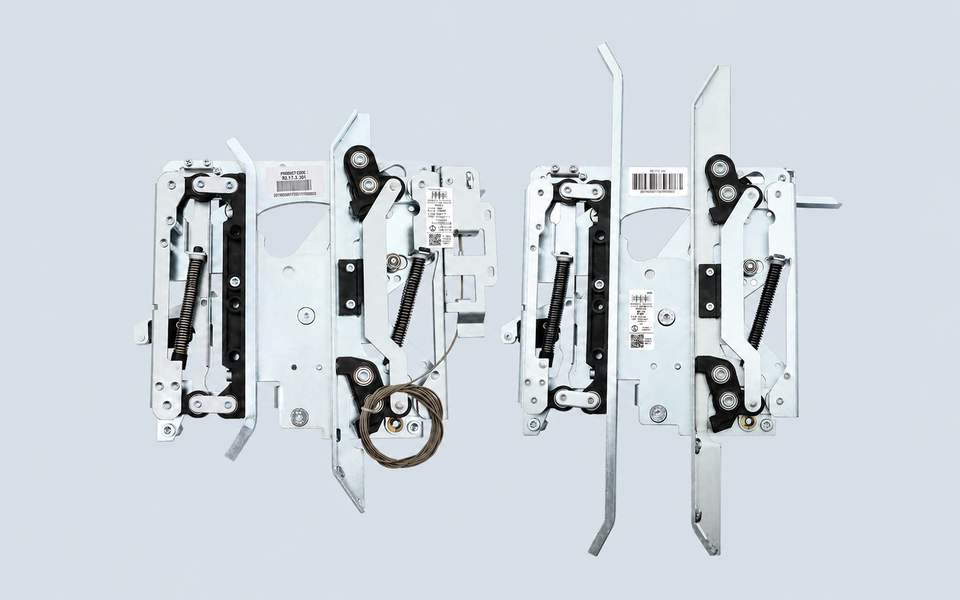

KONE AMD R2 Door Lock Coupler KM601500G13 G15

KONE KM601500G13 and KM601500G15 are mechanical car-door coupler assemblies used with compatible KONE AMD door systems. The part is also described in the elevator spare-parts market as a door vane, door cam, door skate, or lock coupler.

Mounted on the car-door mechanism, the coupler engages the landing-door lock rollers when the car reaches the floor. Its blades and linkage transfer the car-door movement to the landing door while allowing the landing-door locking mechanism to remain secured when the car is away.

What Usually Separates G13 from G15

The two numbers belong to the same general product family, but buyers should not treat them as automatic substitutes. KM601500G15 is commonly listed as an AMD R2 right-opening lock coupler, while KM601500G13 is also supplied as an AMD door coupler under a separate assembly reference.

For matching, compare:

• KM601500G13 or KM601500G15 marking

• door-opening direction

• blade shape and spacing

• lock lever arrangement

• spring and linkage positions

• mounting-hole pattern

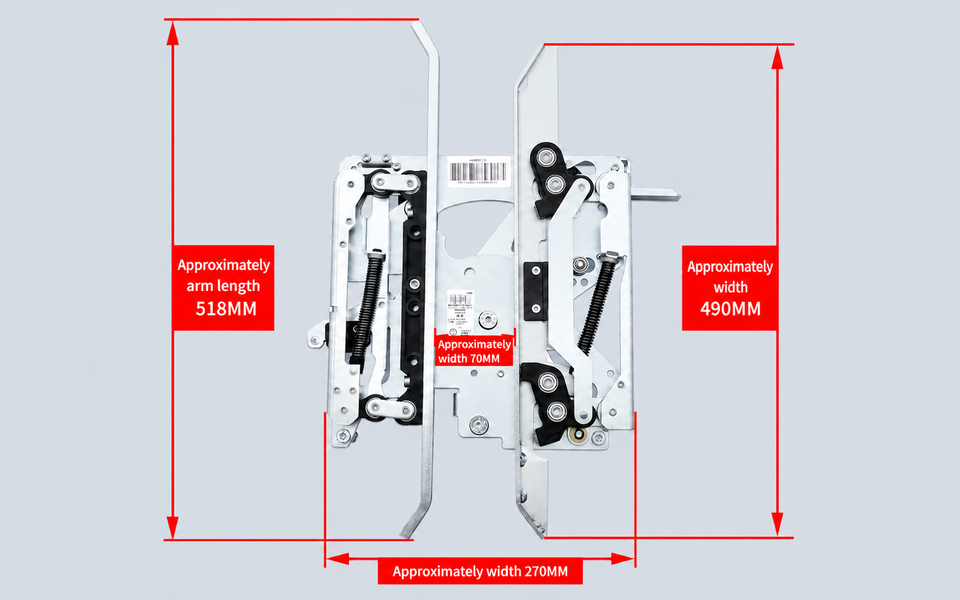

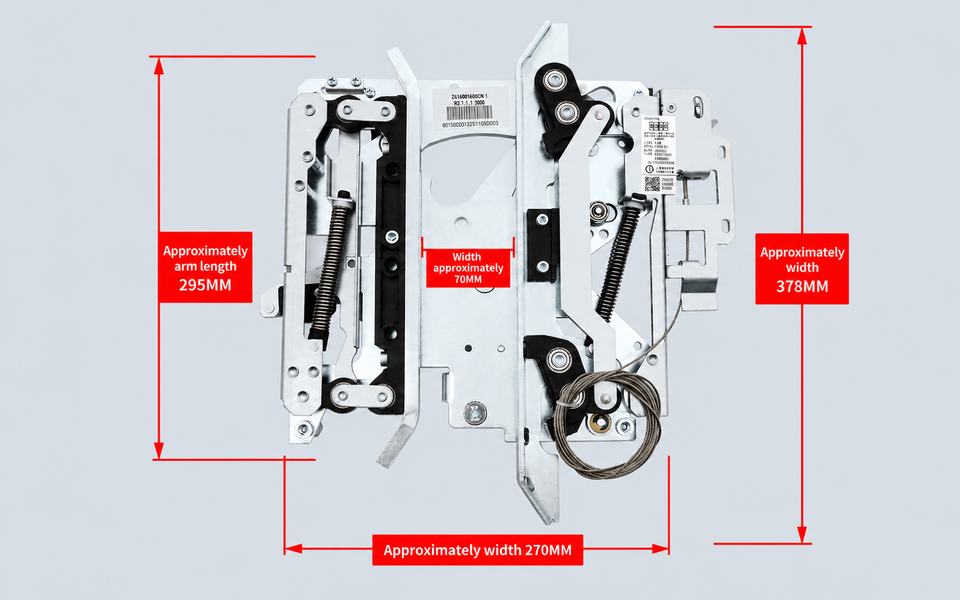

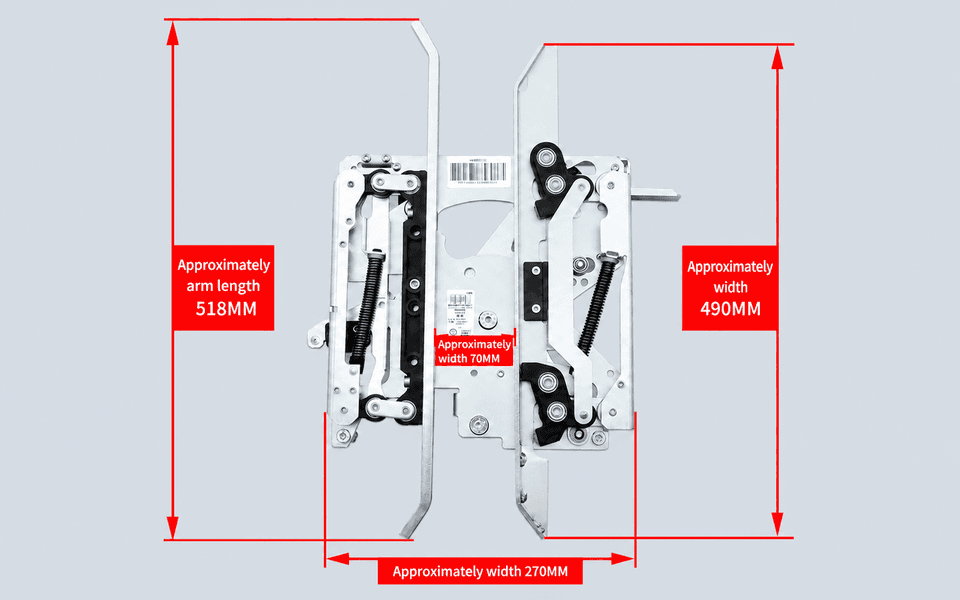

• overall height and width

• roller-contact side

• photo of the original installed part

A worn or distorted coupler may cause noisy engagement, incomplete landing-door release, poor resetting, or repeated door-lock faults. Before changing the assembly, the technician should also check roller clearance, door alignment, mounting bolts, return springs, and the landing-door lock itself.

Please send front, rear, and side photos together with the complete part number before quotation. This is especially important when supplying replacements to Saudi Arabia, Jordan, Egypt, Iraq, Brazil, Argentina, Spain, or Portugal.
