KONE LCE230 Assembly KM713120G01 KM713123H04 H03

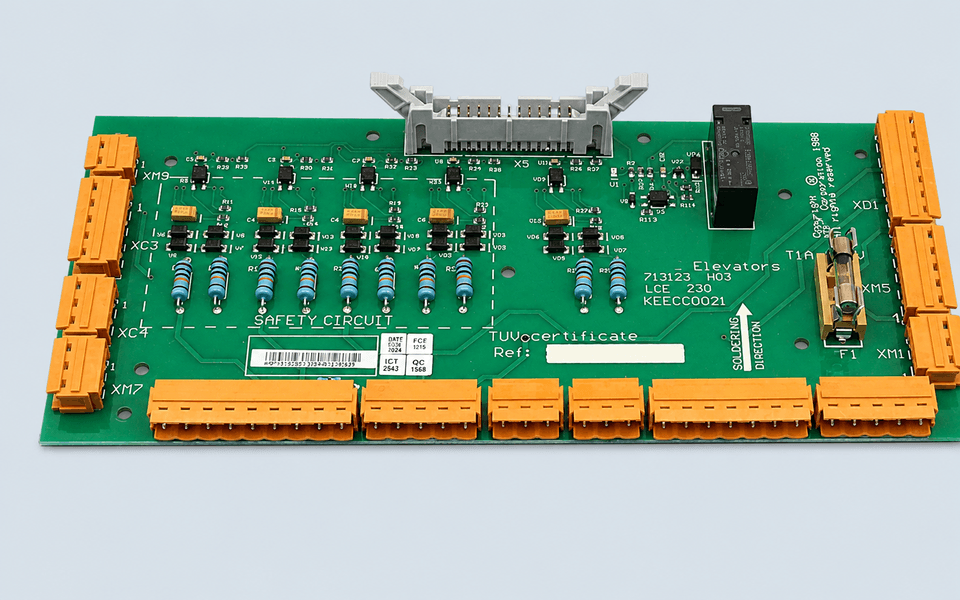

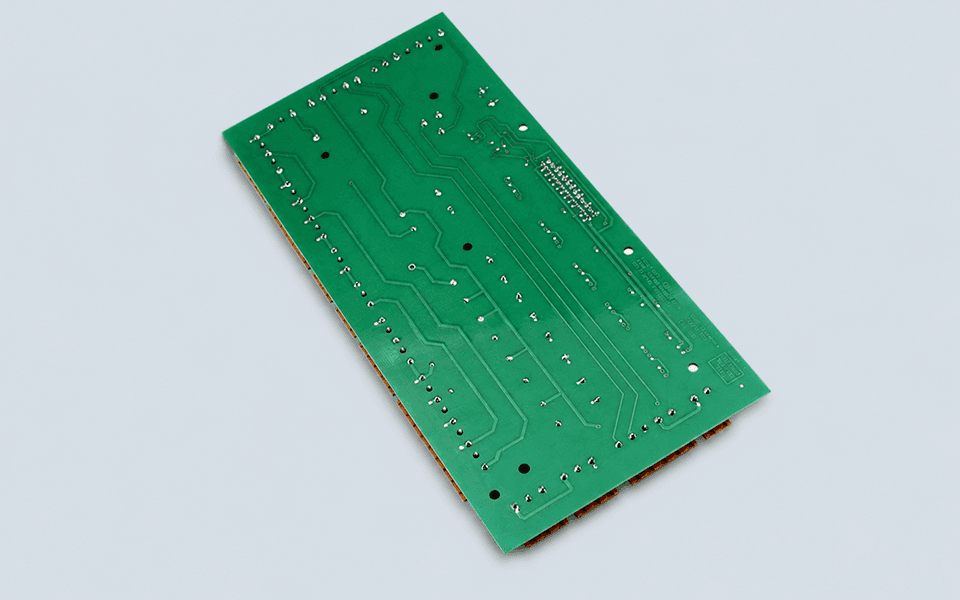

KONE KM713120G01 is an LCE230 PCB assembly used in compatible KONE elevator control systems. The original circuit board may also show the references KM713123H04 or KM713123H03.

The official KONE part description for KM713120G01 is LCE230 Assembly. It belongs to the LCE controller family and is supplied as an individual electronic assembly rather than a complete elevator controller.

One Board, Several Numbers

When this board is removed from a controller, the number on the spare-part label may not be the same as the number printed directly on the PCB. This is why customers often search for KM713120G01 together with KM713123H03 or KM713123H04.

For matching, please send:

• KM713120G01 assembly label

• KM713123H03 or KM713123H04 marking

• LCE230 identification

• clear front and rear photos

• connector positions

• terminal labels

• installed-board photo

• elevator controller model

• any visible repair or burnt area

• required quantity

KM713123H03 and H04 may indicate different PCB revisions or production versions. They should not be treated as interchangeable only because both belong to the LCE230 family.

The safest identification method is to compare the complete label, component layout, connector arrangement, and original controller installation. A photo showing only one corner of the board is usually not enough.

Before fitting a replacement, technicians should check the plugs, power supply, terminal condition, grounding, and nearby LCE modules. Installation and functional testing should be carried out by qualified elevator personnel.

For customers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, one full-board photo plus close-up pictures of both numbers is normally enough for initial confirmation.
