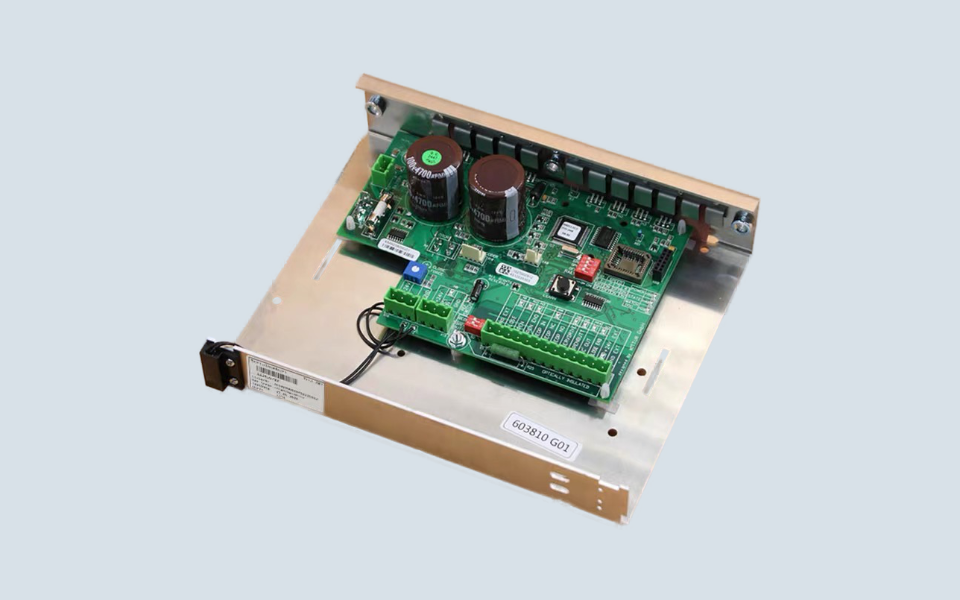

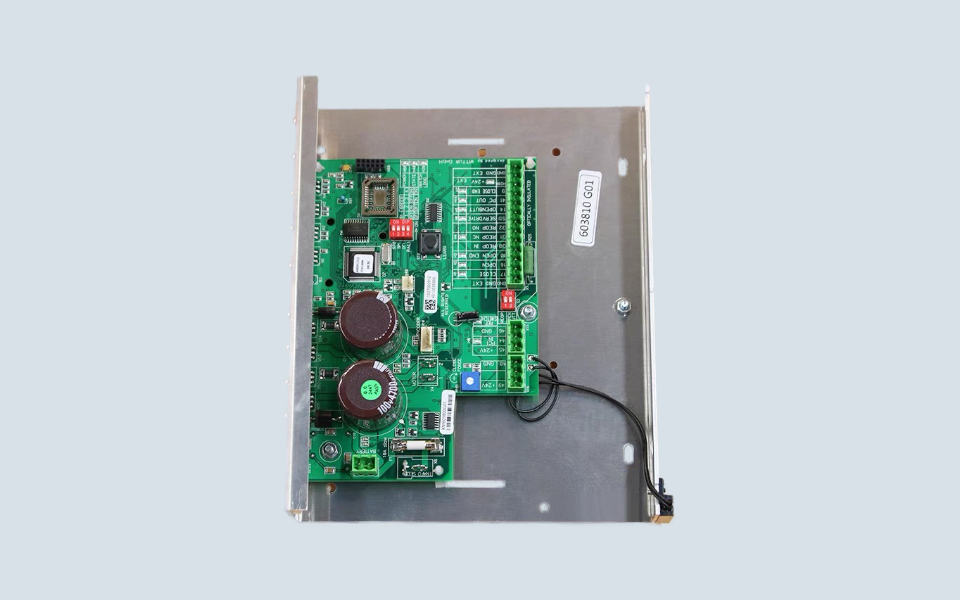

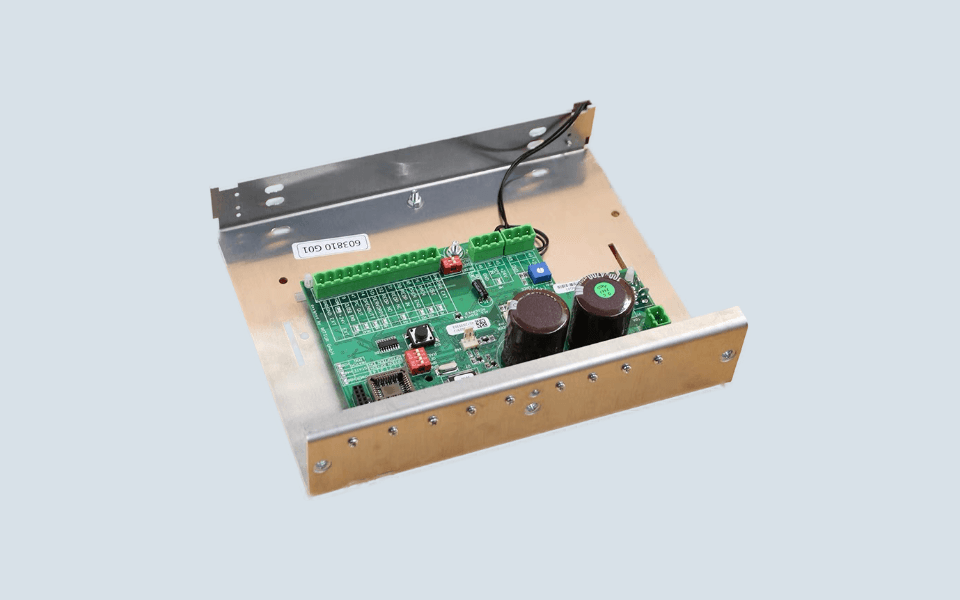

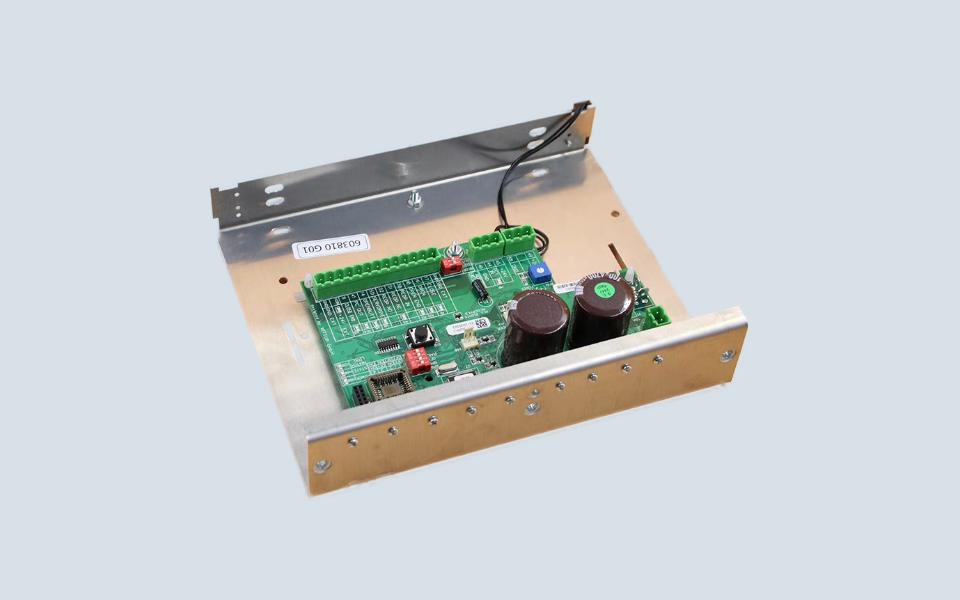

KONE Door Machine Control Box KM683810G01

KONE Door Machine Control Box KM683810G01 is used in KONE elevator automatic door operator control applications.

This product is related to the electrical control side of the elevator door system. It should not be confused with a KONE door motor. The door motor drives the physical door movement, while KM683810G01 is more suitable to describe as a door machine control box, door controller board, or door operator control unit.

In the elevator spare parts market, this product may also be searched as:

• KONE Door Controller Board KM683810G01
• KONE Door Machine Control Box
• KONE Door Operator Control Unit
• KONE Elevator Door Controller
• KONE Door Machine Board
• KONE Door Control PCB
• KONE Elevator Door Operator Board

The main model reference for this page is:

• KM683810G01

Because public model information for KM683810G01 is limited, this page should focus on exact label confirmation instead of adding uncertain AMD Drive generation, voltage, or compatibility claims.

A Door Control Unit for the Door Machine Area

KM683810G01 should be understood as a door machine control part.

It may be involved in door opening command response, door closing control, motor operation signal, door movement timing, and communication with related door system components.

In real elevator maintenance, this type of part usually works together with:

• door motor
• door operator mechanism
• door belt and pulley
• door vane or coupler
• light curtain or door protection sensor
• door lock signal
• door wiring terminals
• controller-side door command circuit

If the control box or board does not match the original door system, the elevator door may not open or close correctly even when the motor and mechanical parts are still in good condition.

Why KM683810G01 Should Be Kept as a Separate Page

KM683810G01 should not be mixed with other KONE door controller references only because the product name sounds similar.

For example, KM606040G01, KM602810G02, KM603800G01, and KM606050G01 are also KONE door control related products, but they may belong to different door operator systems, board groups, electronic box structures, or connector layouts.

KM683810G01 should have its own product page because buyers may search this exact number from the old unit label or maintenance record. Reusing another door controller description may create confusion and may attract the wrong inquiry.

What to Check Before Quotation

Before ordering KONE Door Machine Control Box KM683810G01, please confirm:

• complete KM683810G01 marking on the old unit
• full front photo of the control box or board
• back side photo if the PCB is visible
• connector side photo
• door operator installation photo
• door motor label if available
• door machine model or AMD reference if visible
• existing door fault description from the technician
• whether any other KM number appears on the same unit

For this product, the old unit photo is more important than the elevator model alone. A clear photo can help confirm whether the required item is KM683810G01 or another KONE door operator board.

Site Faults That May Be Related

Maintenance teams may inspect this door control unit when the elevator has problems such as:

• door motor not responding
• door opening failure
• door closing failure
• door stops before fully closed
• unstable door movement
• repeated door reopening
• abnormal door operator fault
• visible damage around the control board or connector

These problems are not always caused by the controller board itself. The door motor, belt tension, door track, light curtain, door lock signal, connector terminals, door vane, and controller wiring should also be checked before confirming the fault.

Replacement Reminder

Do not select KM683810G01 only by appearance.

KONE door control boxes may look similar from the outside, but the internal board, connector definition, software or parameter setting, and door operator compatibility may be different. Before installation, technicians should compare the original and replacement unit carefully.

If the old unit was damaged by unstable power, wiring short circuit, motor overload, moisture, connector oxidation, or an external door system fault, replacing only the control box may not fully solve the problem.

For overseas buyers, sending clear photos of the old KM683810G01 label, connector area, complete door machine box, and door operator installation position is the safest way to reduce wrong supply before shipment.
