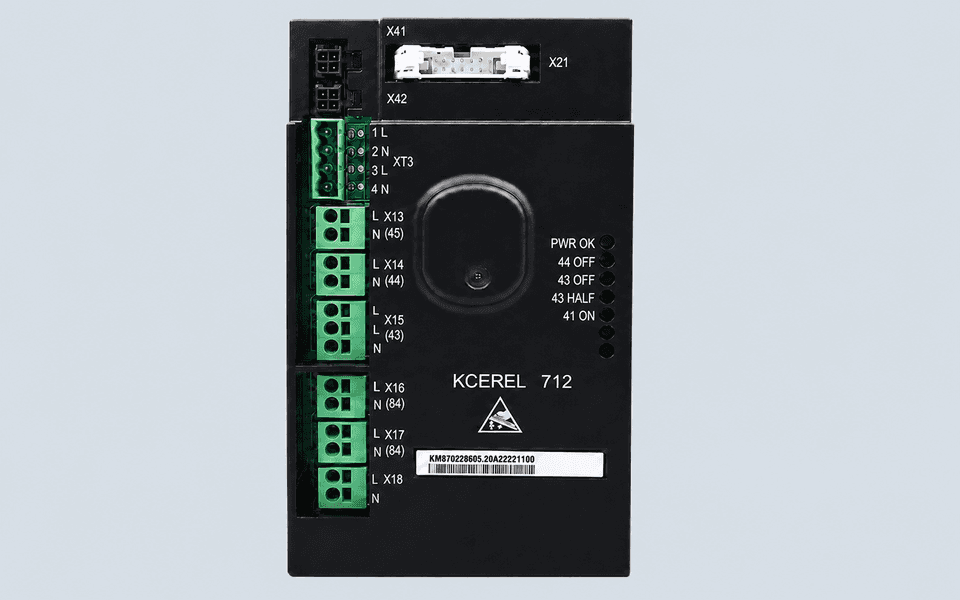

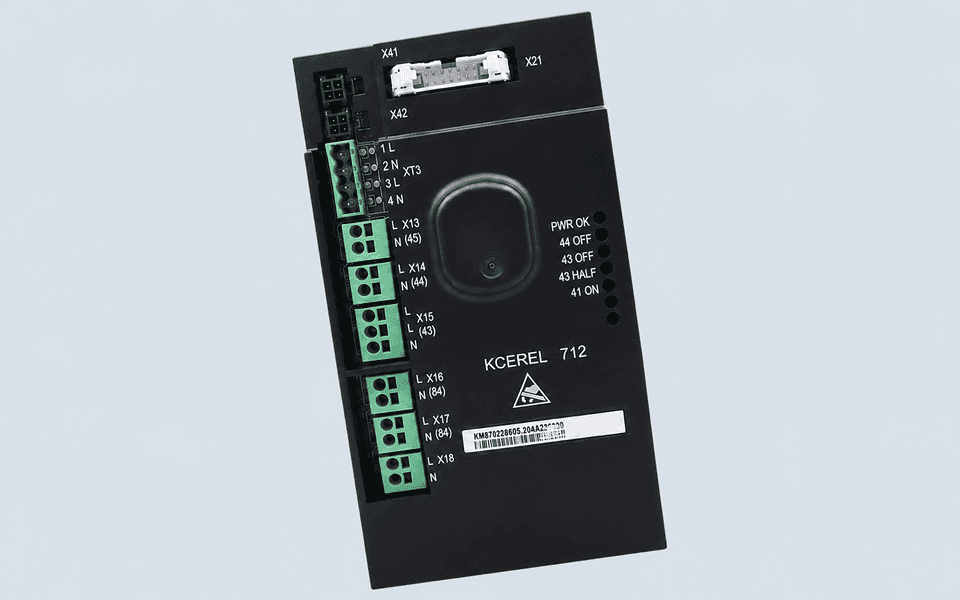

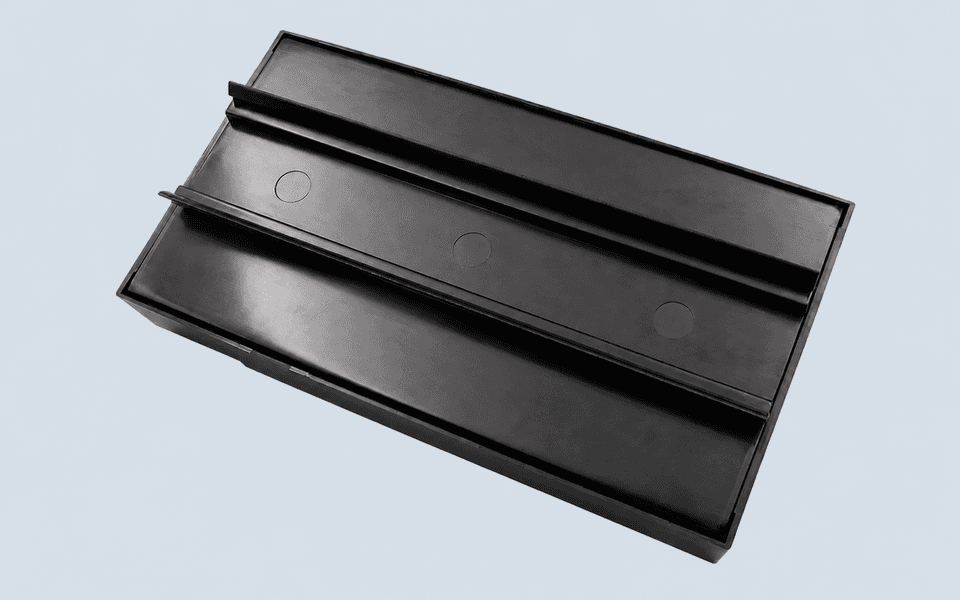

KONE KCEREL712 Relay Board KM870228G05 / KM870228G06

KONE KCEREL712 Relay Board KM870228G05 / KM870228G06 is an elevator electronic relay module used in compatible KONE elevator electrical and control system applications.

This type of board is normally identified by the KM number and KCEREL marking on the old unit. In elevator maintenance, it may be requested when technicians need to replace a damaged relay-related PCB, solve control cabinet signal issues, or repair an electrical control fault. Because KONE boards may have similar appearance but different versions, the complete old-board label should be checked before ordering.

This product may be searched as:

• KONE KM870228G05

• KONE KM870228G06

• KONE KCEREL712

• KCEREL712 Relay Board

• KONE Elevator Relay Board

• KONE Elevator Electronic Board

• KONE Elevator PCB Board

• KONE Elevator Spare Parts

Before quotation, buyers should provide clear photos of the old board label, front PCB, back PCB, relay area, connector layout, and installation position inside the control cabinet. The difference between KM870228G05 and KM870228G06 should not be ignored, as it may relate to board version, component arrangement, connector definition, or site configuration.

Key details to confirm include:

• complete KM number on the old board

• KCEREL712 marking

• G05 or G06 version

• front and back PCB photos

• relay and component layout

• connector and terminal close-ups

• control cabinet installation position

• fault description from the site

• damaged, burned, or corroded areas if visible

This board may be replaced when the elevator has relay control faults, unstable cabinet signals, damaged connectors, PCB failure, or electrical control problems. If the same fault remains after replacement, technicians should also check wiring harnesses, plug connections, power supply, grounding, related control boards, and cabinet configuration.

For buyers in Saudi Arabia, Jordan, Egypt, UAE, Kuwait, Brazil, Chile, Spain, and Italy, old-board photos and complete model confirmation are recommended before shipment. This helps reduce wrong supply and supports faster KONE elevator maintenance work.

FAQ

Are KM870228G05 and KM870228G06 interchangeable?

Not automatically. The board version, relay layout, connector position, and elevator system configuration should be checked before replacement.

What information should I send before quotation?

Please send the old board label, front and back PCB photos, connector close-ups, cabinet position photo, and fault description.
