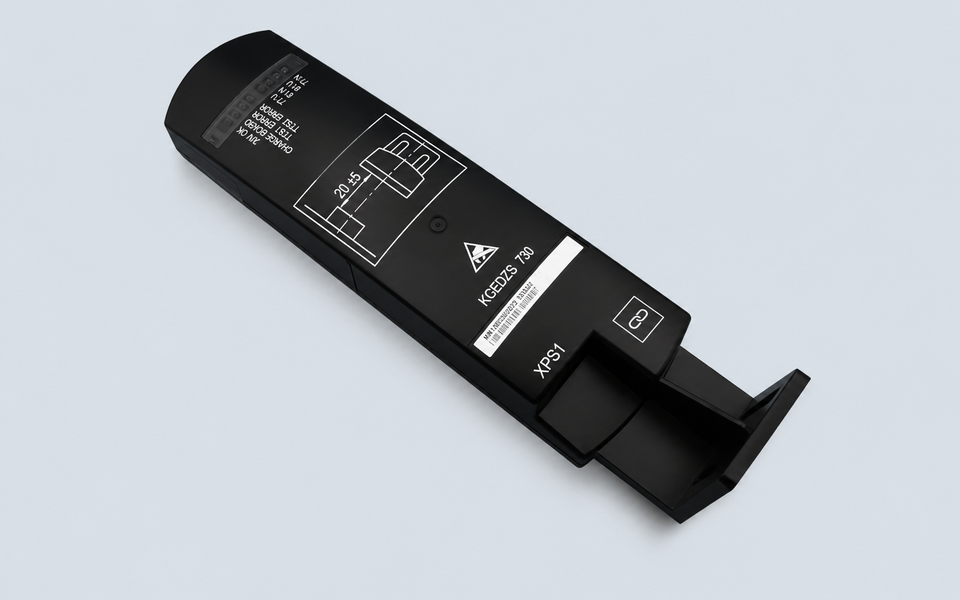

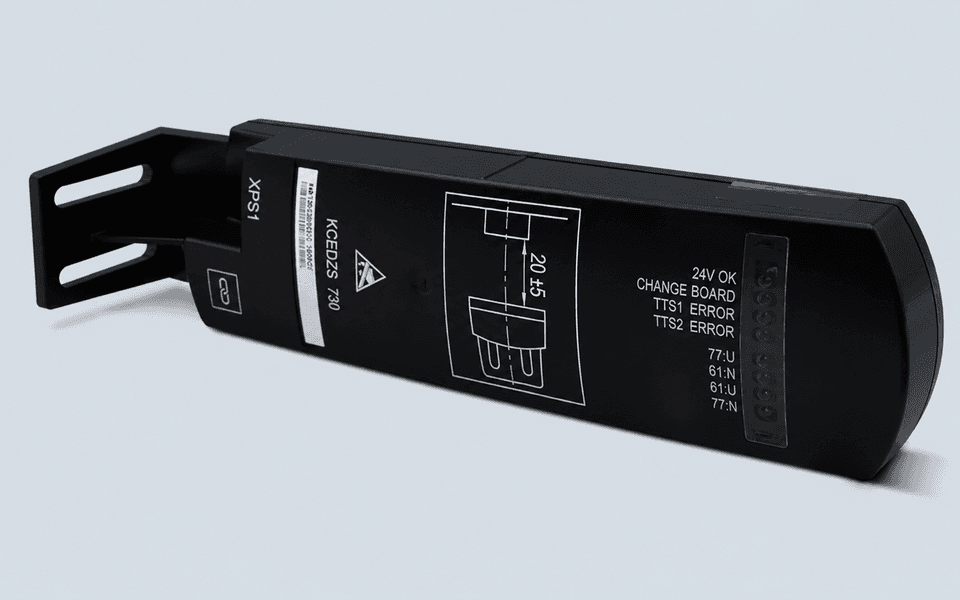

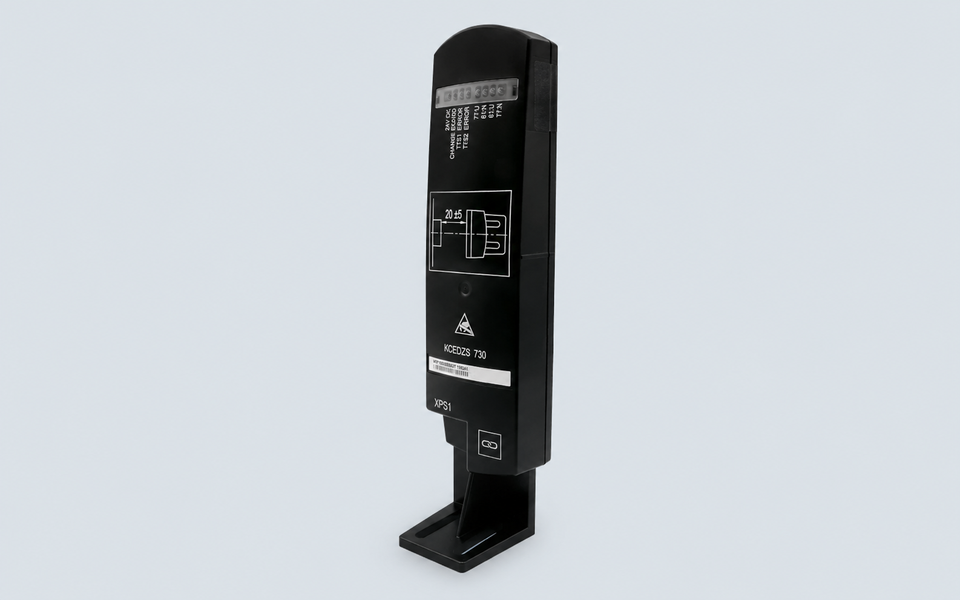

KONE KCEDZS Module Assembly KM1362305G22 KCEDZS730

KONE KCEDZS Module Assembly KM1362305G22 KCEDZS730 is an electronic module designed for compatible KONE elevator control systems.

Unlike standard replacement boards that are identified only by appearance, this module is normally confirmed by both the KM1362305G22 part number and the KCEDZS730 marking. These references are commonly found on the product label or PCB assembly and provide the primary basis for selecting the correct replacement.

This product may be searched as:

• KONE KM1362305G22

• KCEDZS730 Module

• KONE KCEDZS Module Assembly

• KONE KCEDZS Board

• KONE Elevator Module

• KONE EcoSpace Spare Parts

• KONE Elevator PCB Assembly

Confirm the Original Module Before Ordering

When replacing a KCEDZS module, it is recommended to compare the original assembly rather than relying only on the printed number. The label, connector arrangement, fixing points, and surrounding wiring should all be checked together.

To improve matching accuracy, buyers are encouraged to provide:

• complete module label

• KM1362305G22 marking

• KCEDZS730 identification

• front and rear photos

• connector layout

• installation position inside the controller

• elevator model or platform if available

• site fault description

These details help distinguish between different KCEDZS revisions and reduce the possibility of ordering an incorrect module.

Typical replacement requests include damaged PCB assemblies, communication abnormalities, intermittent control signals, connector damage, or electrical faults discovered during routine maintenance. If replacing the module does not eliminate the fault, technicians should also inspect the connected wiring harness, power supply, associated controller boards, and field connections before replacing additional components.

For customers in Saudi Arabia, Jordan, Egypt, UAE, Kuwait, Brazil, Chile, Spain, and Italy, providing complete identification details before shipment helps ensure faster confirmation and smoother installation for overseas maintenance projects.

FAQ

Is KM1362305G22 the same as every KCEDZS module?

Not necessarily. Different KCEDZS assemblies may have different revisions or hardware configurations. The original module label should always be checked.

What information is recommended before requesting a quotation?

Please send the complete module label, KM number, connector photos, installation location, and a brief description of the elevator fault.
