KONE KDS220 KDS300 Display Board KM51216154H06 H07

KONE KM51216154H06 and KM51216154H07 are display PCB references commonly used in compatible KONE landing operating panels.

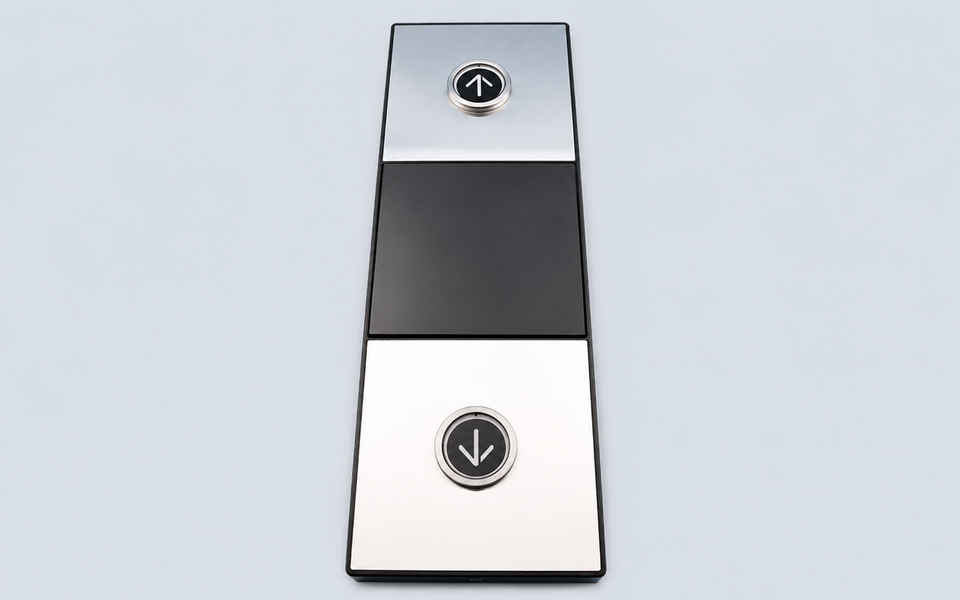

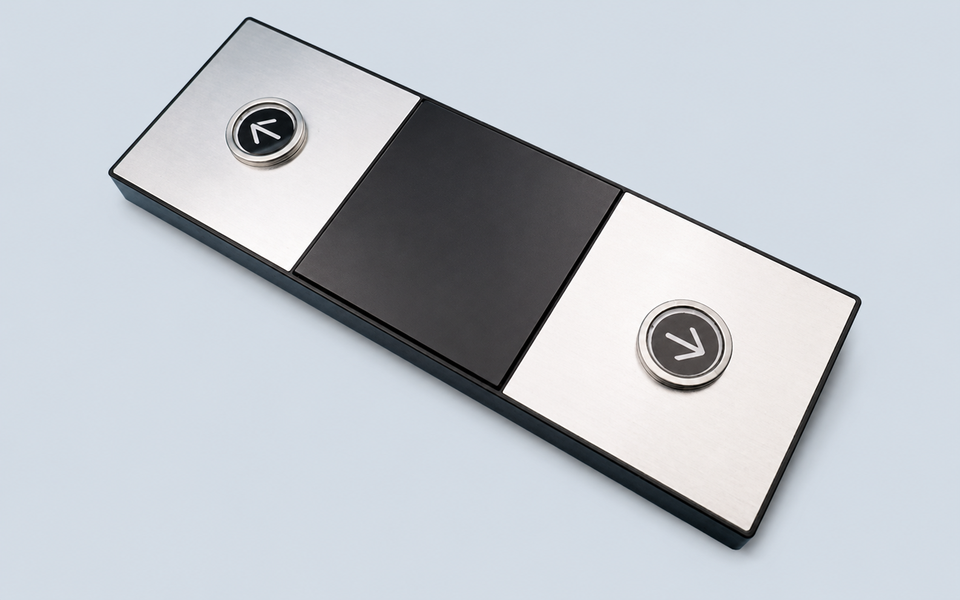

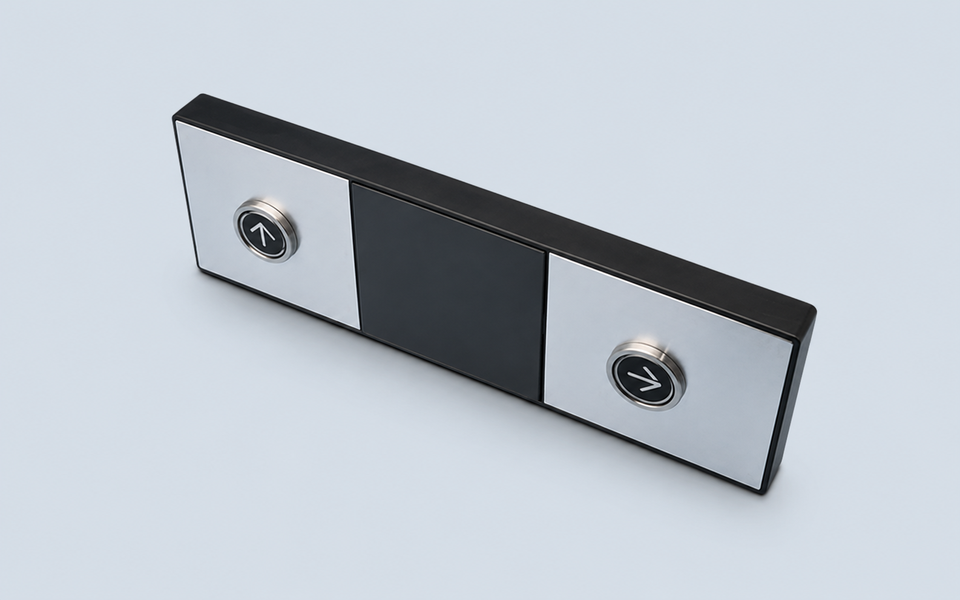

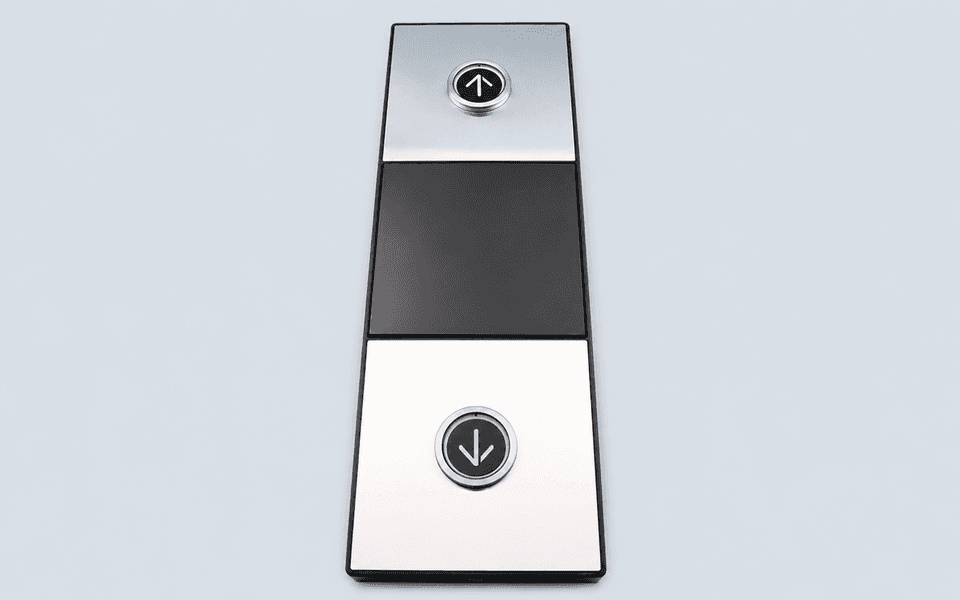

The board may be installed behind a LOP or HOP faceplate to provide floor indication, direction arrows, or related visual information. In the spare-parts market, these references are most frequently associated with the KDS220 panel family, although customers may also search for them together with KDS300 or KDS330 display systems.

Match the Display, Not Only the PCB Shape

A replacement display board should be checked together with the complete landing panel. Two boards may have similar dimensions while using different display colours, connector layouts, communication versions, or faceplate arrangements.

Before quotation, please provide:

• KM51216154H06 or KM51216154H07 marking

• KDS220 or KDS300 panel information

• complete front and rear PCB photos

• display colour and segment style

• connector quantity and position

• landing panel front photo

• button and arrow arrangement

• installed-position photo

• elevator controller information

• quantity required

H06 and H07 should not be assumed to be automatically interchangeable. H07 is also listed with other KM51216153 assembly references, which makes the complete original label important during matching.

Display-board replacement may be considered when the floor number is incomplete, direction arrows fail, the display flickers, or the PCB has visible damage. Technicians should also inspect the panel power supply, plugs, communication wiring, and connector terminals before installing another board.

For enquiries from Saudi Arabia, Jordan, Egypt, Iraq, UAE, Brazil, Chile, Spain, and Italy, a clear photo of the illuminated display together with both sides of the old PCB usually provides the fastest initial confirmation.

Frequently Asked Questions

Is KM51216154H06 mainly a KDS220 display board?

Public spare-parts listings most commonly identify H06 with KDS220 LOP/HOP display applications, although some suppliers also associate it with KDS330 panel assemblies.

Can H06 replace H07 directly?

Not automatically. The PCB marking, assembly label, connector arrangement, display type, and landing-panel system should be compared first.

Is KDS300 definitely compatible with KM51216154H06 or H07?

The available public references are clearer for KDS220 than KDS300. If the original panel is KDS300, please confirm it with complete panel and PCB photos rather than relying on the family name alone.
