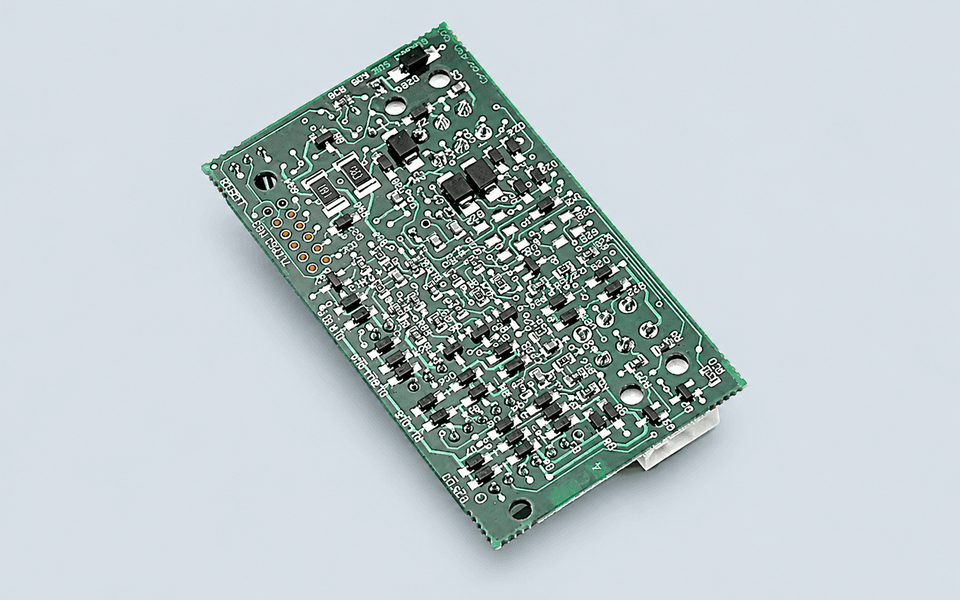

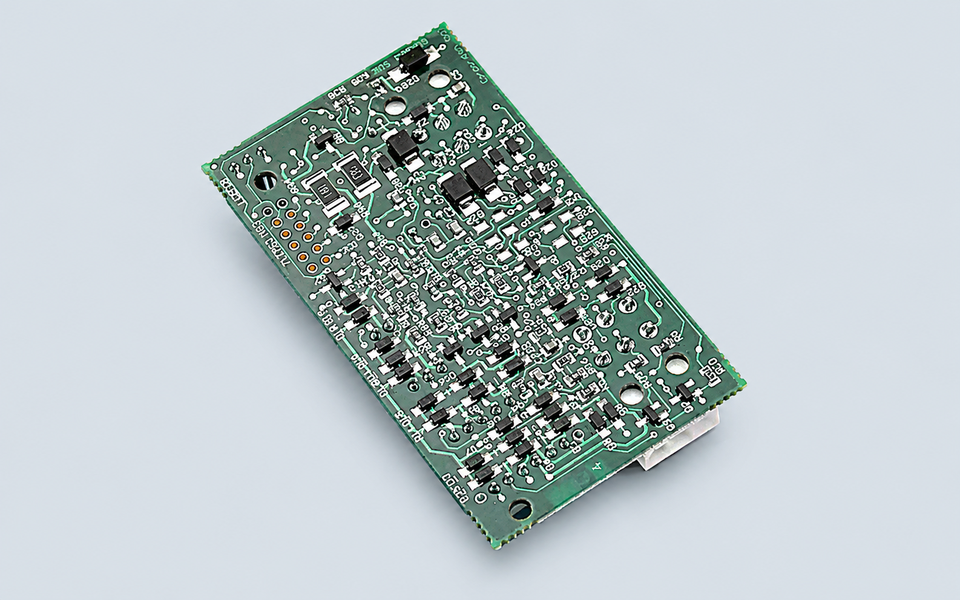

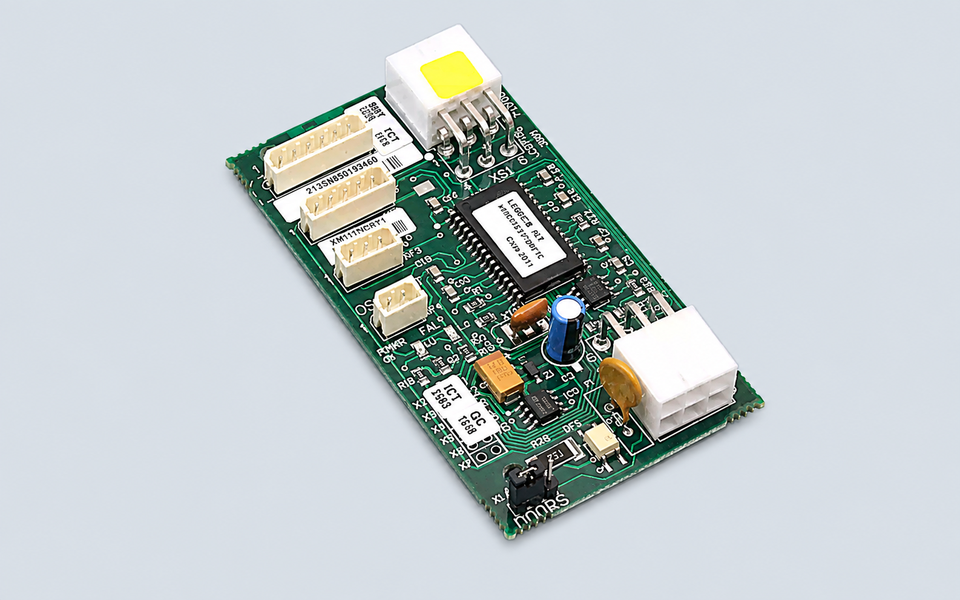

KONE LCEFCB Board KM713700G01 G11 G51 G71 KM713703H05

KONE KM713700G01, KM713700G11, KM713700G51, and KM713700G71 belong to the LCEFCB electronic-board family used in compatible KONE elevator control systems.

KONE officially identifies KM713700G11 and KM713700G71 as LCE FCB assemblies. The original circuit board may also carry the reference KM713703H05. Depending on the market and maintenance documentation, this product may be described as a floor-call board, floor board, shaft communication board, or LCEFCB PCB.

This product may also be searched as:

• KONE KM713700G01

• KONE KM713700G11

• KONE KM713700G51

• KONE KM713700G71

• KONE KM713703H05

• KONE LCEFCB Board

• KONE Floor Call Board

• KONE Shaft Communication Board

• KONE Elevator FCB PCB

• KONE LCE Floor Board

Confirm the Board Position and Complete Version

The letters FCB alone are not enough to select the correct replacement. Before removing the old PCB, technicians should photograph its installed position, surrounding modules, and connected plugs.

For quotation, please provide:

• complete KM713700G01, G11, G51, or G71 label

• KM713703H05 PCB marking

• LCEFCB identification

• front and rear board photographs

• connector and terminal arrangement

• installation position inside the elevator system

• connected shaft or landing wiring

• elevator model and controller platform

• previous repair information

• fault description

• quantity required

G01, G11, G51, and G71 belong to the same LCEFCB family, but they should not be considered automatically interchangeable. Differences may involve PCB revision, connector definition, fitted components, communication configuration, or elevator platform.

Before fitting a replacement board, technicians should inspect the shaft wiring, landing-call connections, plugs, power supply, grounding, and related LCE modules. A loose terminal, damaged cable, or external electrical fault may produce symptoms similar to PCB failure.

Installation, configuration, and functional testing should be completed by qualified elevator technicians. Landing calls, floor signals, communication, and connected controller functions should be verified before the elevator returns to service.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Colombia, Spain, and Italy, complete old-board photos and all visible part numbers are recommended before shipment.

FAQ

What does LCEFCB mean?

It identifies the KONE LCE FCB board family. KONE officially names KM713700G11 and G71 as LCE FCB assemblies.

Is KM713703H05 the complete ordering number?

Usually not. KM713703H05 is commonly printed directly on the PCB, while KM713700G01, G11, G51, or G71 is used as the assembly reference.

Can KM713700G01 replace KM713700G11?

Not automatically. The complete G-version, PCB layout, connectors, installed position, and elevator controller configuration should be checked first.

Is this the main elevator controller?

No. It is an individual LCEFCB PCB assembly used within a compatible KONE elevator control and floor-call system.

What should I send before quotation?

Please send the complete assembly label, KM713703H05 marking, both sides of the PCB, connector close-ups, installation position, and elevator controller information.
