KONE LCEOPT Assembly KM713150G01 G11 G13 G21 KM713153H03 H04 H05

The name LCEOPT is normally the first detail noticed on this KONE elevator PCB, but it is not the only reference needed when sourcing a replacement.

The complete assembly may be identified as KM713150G01, KM713150G11, KM713150G13 or KM713150G21. The circuit board itself may also carry KM713153H03, KM713153H04 or KM713153H05. These numbers should be recorded separately because the assembly reference and the PCB hardware marking do not necessarily describe the same level of the product.

KONE officially lists several KM713150 versions as LCEOPT assemblies within compatible LCE elevator control systems. In the spare-parts market, the board is also frequently described as an LCE option board or fire board. However, the market name should not replace the complete part-number check.

Build an Identification Record

Before the board is packed, repaired or removed from the cabinet, take one photo showing it in its original installed position. This photograph often preserves details that are lost later, including plug locations, unused terminals and nearby module connections.

A useful identification record includes:

• complete KM713150Gxx assembly number

• KM713153H03, H04 or H05 PCB marking

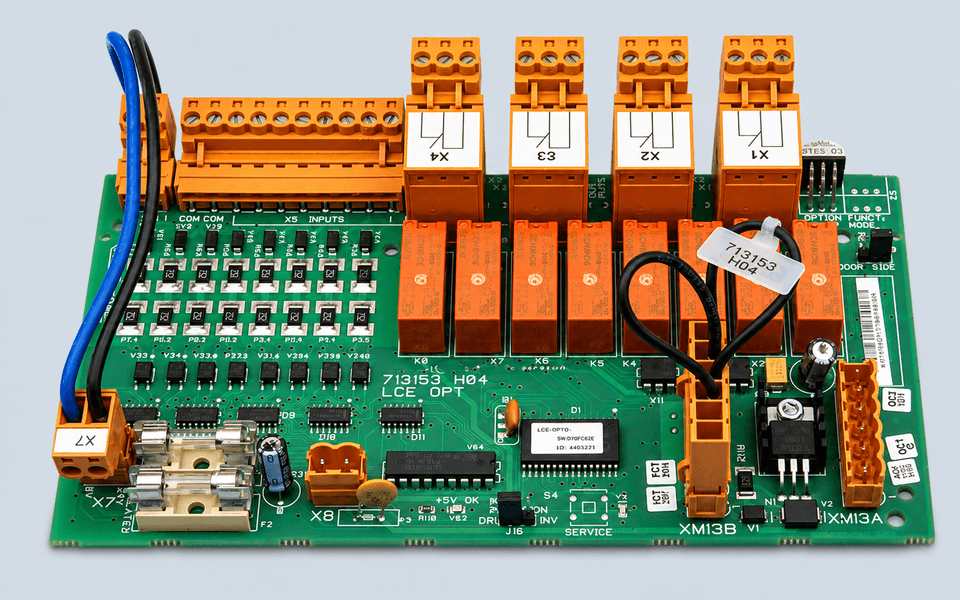

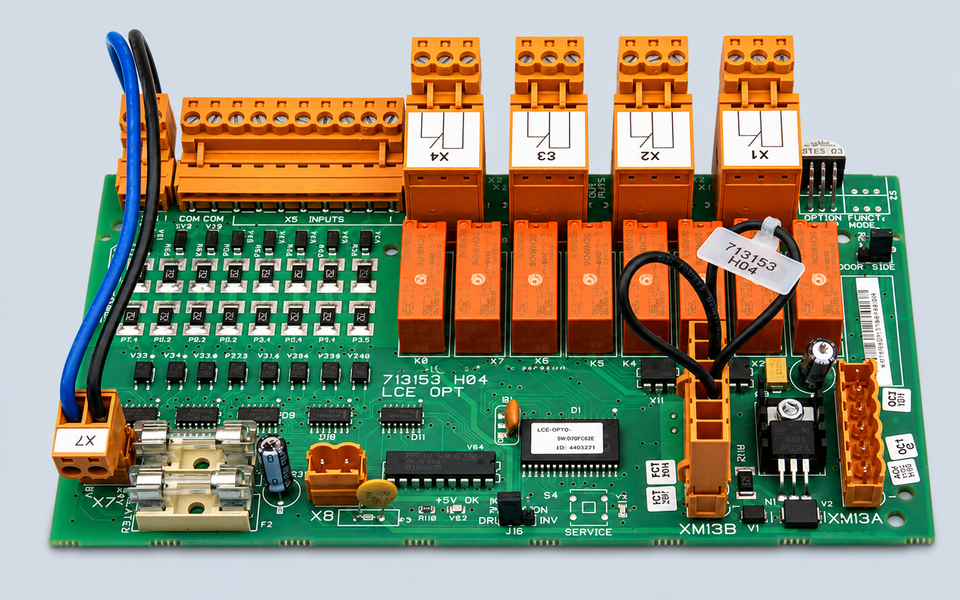

• LCEOPT name printed on the board

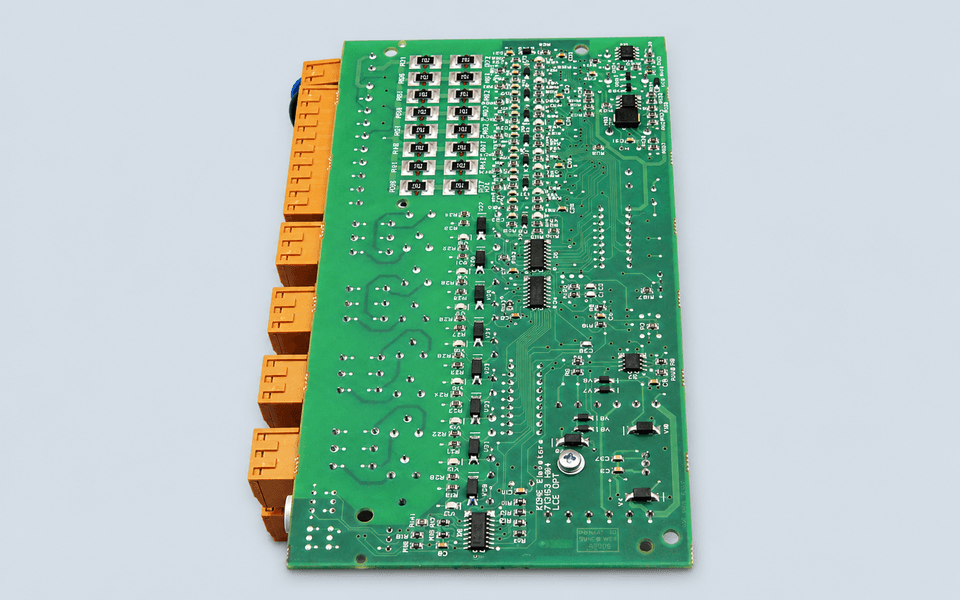

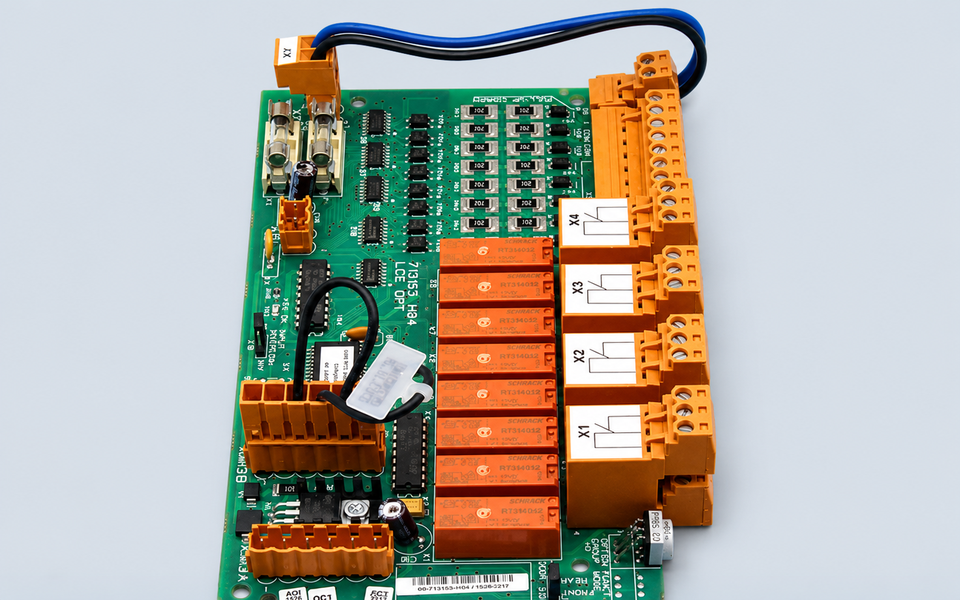

• front and rear PCB photographs

• connector and terminal close-ups

• jumper, switch and removable-device positions

• controller cabinet overview

• elevator model or LCE system information

• original fault and repair history

• required quantity

The G01, G11, G13 and G21 references should not be grouped as automatically interchangeable. The same applies to the H03, H04 and H05 PCB markings. A similar board outline does not confirm matching hardware, fitted components or elevator configuration.

Before another board is installed, the technician should check the controller supply, grounding, connected circuits and plug condition. Any software, configuration or commissioning requirements should also be confirmed by qualified elevator personnel.

For export enquiries from Saudi Arabia, Jordan, Egypt, Iraq, Syria, UAE, Brazil, Peru, Spain and Italy, complete identification photos usually make the first quotation review faster and more accurate.

Frequently Asked Questions

Is LCEOPT the official product name?

Yes. KONE officially lists several KM713150 references as LCEOPT assemblies used in compatible LCE controller and electrification systems.

Is this board also called a KONE fire board?

Many spare-parts suppliers use the name “LCEOPT fire board.” However, KONE’s official public product name is LCEOPT Assembly, so that is the safer primary description for the page.

Can KM713150G01 replace KM713150G11 or G13?

Not based on the family name alone. The original G-number, PCB marking, component layout and elevator configuration should be checked before any replacement is approved.

What is the difference between KM713150 and KM713153?

KM713150Gxx is generally used as the assembly reference, while KM713153H03, H04 or H05 may be printed on the PCB hardware. Both numbers should be included in the enquiry.

Can H03, H04 and H05 be treated as the same revision?

No direct interchangeability should be assumed. Photograph the original PCB marking and compare the complete board before ordering.
