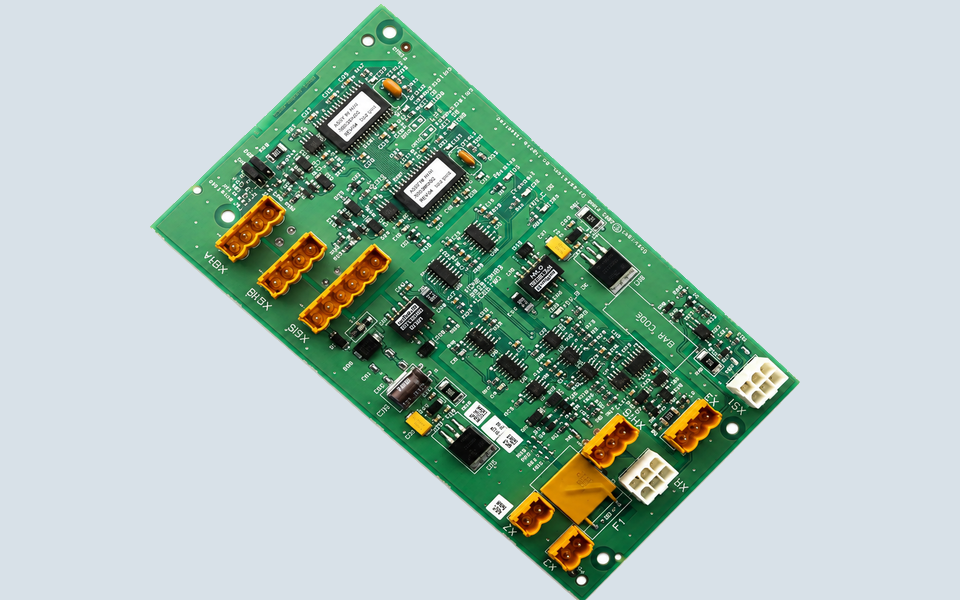

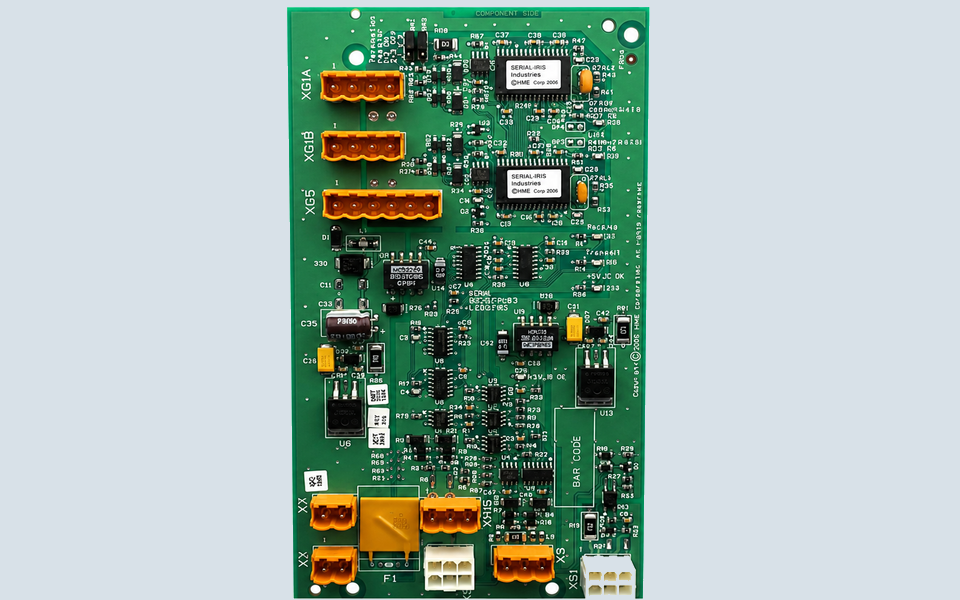

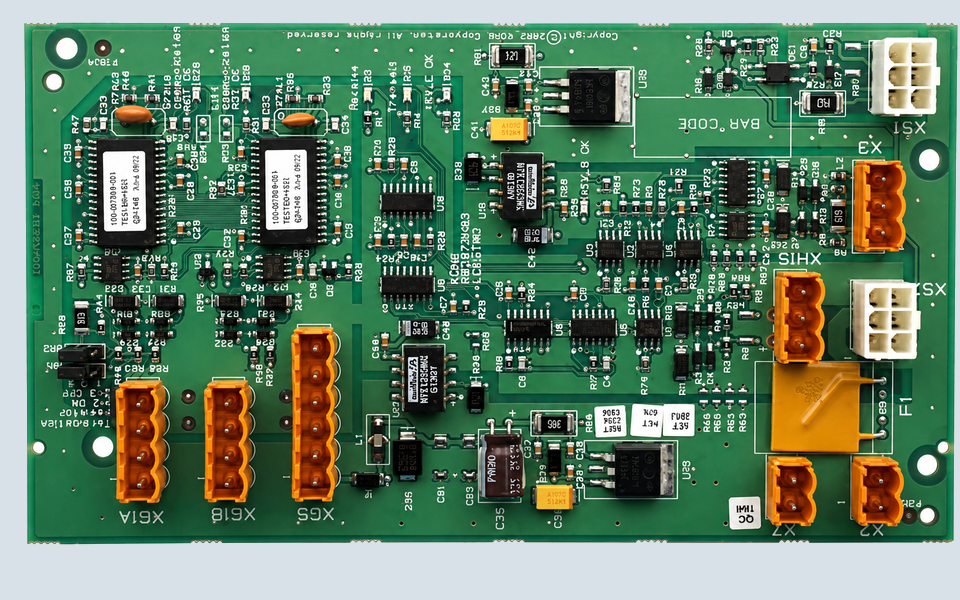

KONE LCEGTWO Rev 0.3 Board KM802870G01 G02 G03 KM802873H03

One of the most common mistakes when ordering this board is assuming that every LCEGTWO Rev 0.3 PCB is identical.

Although KM802870G01, KM802870G02 and KM802870G03 belong to the same LCEGTWO product family, they represent different assembly references. The printed circuit board itself may also carry KM802873H03, which is often mistaken for the spare-part number.

KONE officially identifies KM802870G01 as PCB, LCEGTWO REV 0.3, used within compatible LCE elevator control systems.

Record Both Labels Before Removing the Board

Before disconnecting the original PCB, it is good practice to photograph both the assembly label and the PCB itself.

Useful information includes:

• KM802870G01, G02 or G03 assembly number

• KM802873H03 PCB marking

• LCEGTWO REV 0.3 identification

• front and rear board photographs

• connector locations

• controller cabinet photo

• elevator model

• fault description

• quantity required

Keeping these photos together makes later identification much easier, especially if the board is sent away for repair or compared with another revision.

Similar Appearance Doesn't Mean the Same Version

Boards from the LCEGTWO family often share the same dimensions and connector locations. However, different production revisions may contain hardware updates or configuration changes.

If the original board has damaged connectors, signs of overheating or previous repair work, these details should also be photographed before replacement. This helps determine whether only the PCB requires replacement or whether additional controller components should also be inspected.

Before commissioning, technicians should verify the controller power supply, communication wiring, grounding and connector condition. Functional testing should always be completed after installation.

We regularly supply LCEGTWO boards to elevator maintenance companies in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Brazil, Chile, Spain and Italy, where complete board photos help speed up model confirmation.

Frequently Asked Questions

Is KM802873H03 the same as KM802870G01?

No. KM802870G01, G02 and G03 are assembly references, while KM802873H03 is commonly printed on the PCB itself. Both numbers should be checked before ordering.

Can KM802870G01 replace KM802870G02?

Not automatically. They belong to the same LCEGTWO family, but the installed controller configuration and original assembly number should always be confirmed before replacement.

What is the easiest way to identify the correct version?

Take one photo of the complete board, one close-up of the assembly label, and one close-up showing the PCB marking. These three images usually provide enough information for an initial compatibility check.
