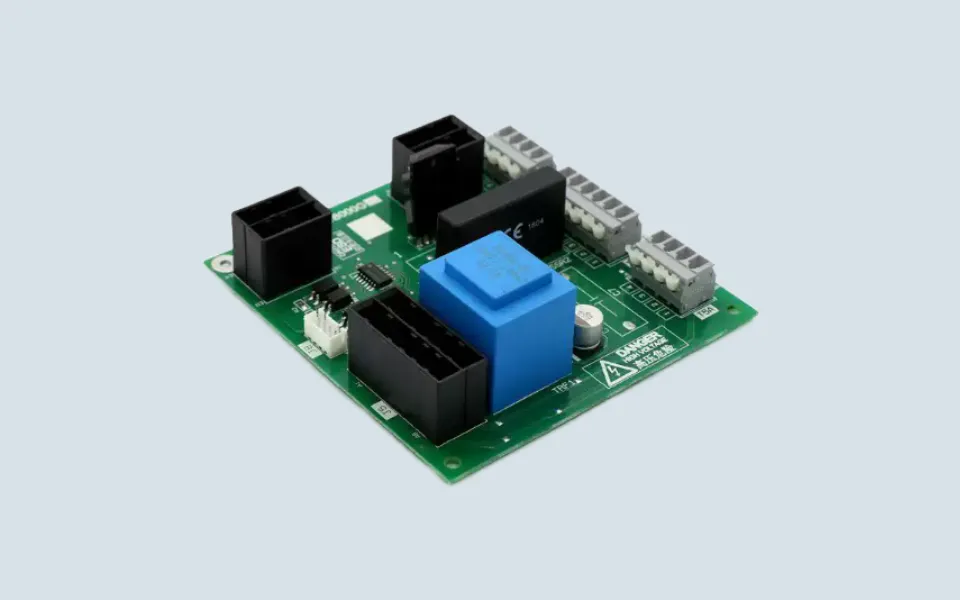

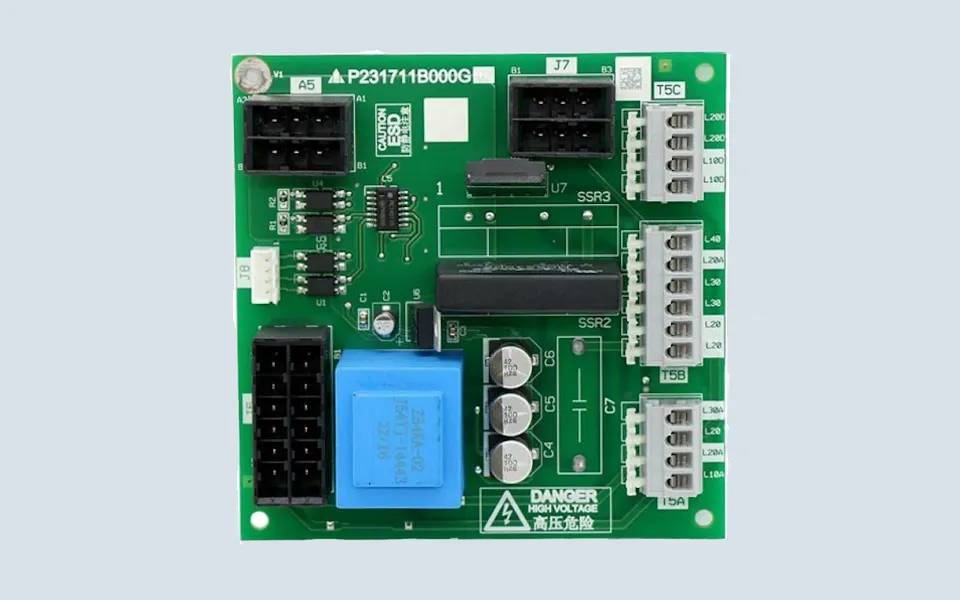

Mitsubishi Car-Top Door Operator Interface Board P231711B000G01 / P231711B000G02

Mitsubishi Car-Top Door Operator Interface Board P231711B000G01 / P231711B000G02 is used in Mitsubishi elevator door operator and door motor interface applications.

This board is usually installed around the car-top or door operator control area, where it helps connect the elevator door drive system with related door motor, control signal, and wiring circuits. In the elevator spare parts market, this product may also be described as a door operator interface board, door motor interface board, door machine adapter board, or elevator door drive interface PCB.

For this product, the exact suffix is important. If the old board label shows P231711B000G01, it should not be replaced by P231711B000G02 only because the number looks similar. The final confirmation should depend on the old board label, connector layout, door operator type, and car-top wiring configuration.

Main Model References

This page can naturally cover the following model references:

• P231711B000G01
• P231711B000G02
• P231711B000G0
• Mitsubishi Elevator Door Operator Interface Board
• Mitsubishi Elevator Door Motor Interface Board
• Mitsubishi Door Machine Adapter Board
• Mitsubishi Elevator Door Drive Interface PCB

Some supplier pages list P231711B000G01 and P231711B000G02 together as Mitsubishi elevator door operator interface board models. Other market listings describe P231711B000G01 as an elevator accessory interface board or door machine adapter board.

Why This Board Is Different From a Door Controller

This board should not be confused with a complete door controller board.

A door controller usually handles door movement control logic, speed control, motor drive output, and parameter adjustment. A door operator interface board is more often related to signal connection, wiring adaptation, or interface communication between the car-top door system and the door operator circuit.

In real maintenance work, technicians may check this board when the door system has signal connection problems, abnormal door motor response, door drive communication issues, or damaged wiring interface symptoms.

What Technicians Usually Check

Before confirming this board, maintenance teams usually compare:

• Old PCB label
• P231711B000G01 or P231711B000G02 suffix
• Connector quantity and direction
• Car-top installation position
• Door operator wiring
• Door motor interface cable
• Related door drive board
• Visible damaged area on the PCB

If the old label only shows P231711B000G0, it is better to take a clear close-up photo of the full label area, because the last digit may be hidden, scratched, or covered by dust.

Door System Notes

Door operator interface problems may create symptoms that look similar to a door controller or motor problem.

For example, technicians may see unstable door response, door motor not receiving correct signal, intermittent door operation, or abnormal communication between the car-top wiring and door machine system.

However, these symptoms may also come from the door controller, door motor, encoder feedback, belt tension, light curtain signal, or connector oxidation. For this reason, the interface board should be checked together with the complete door operator circuit.

Supply Confirmation Reminder

For overseas buyers, the safest way to confirm this product is to provide:

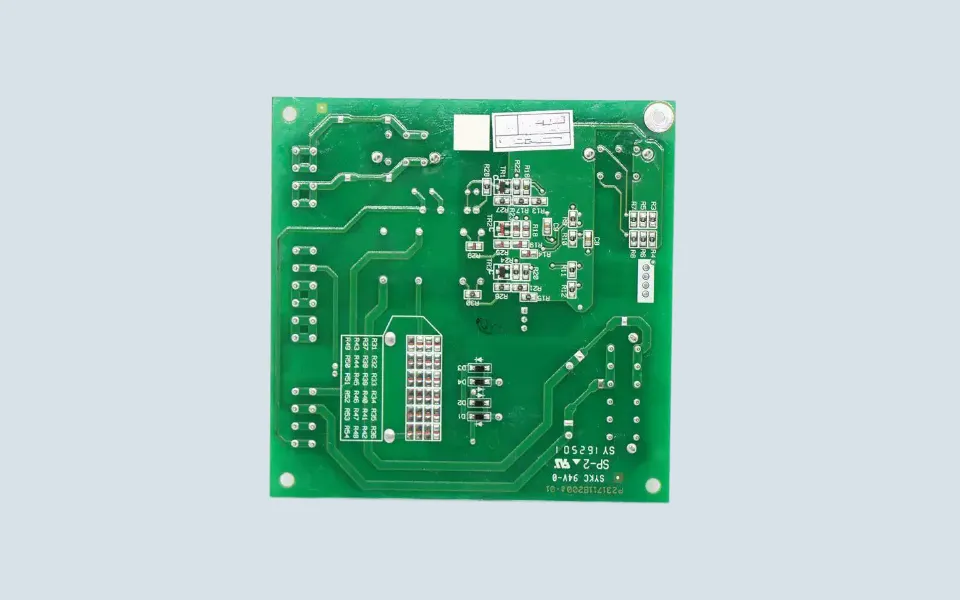

• Front and back photos of the original PCB
• Close-up photo of the P231711B000G01 / P231711B000G02 label
• Connector area photo
• Car-top door operator installation photo
• Door motor label if available
• Existing door fault description

This helps confirm whether the required part is P231711B000G01, P231711B000G02, or another Mitsubishi door operator interface board.
