Mitsubishi Elevator Mainboard Connection Cable — AMPHENOL E195309

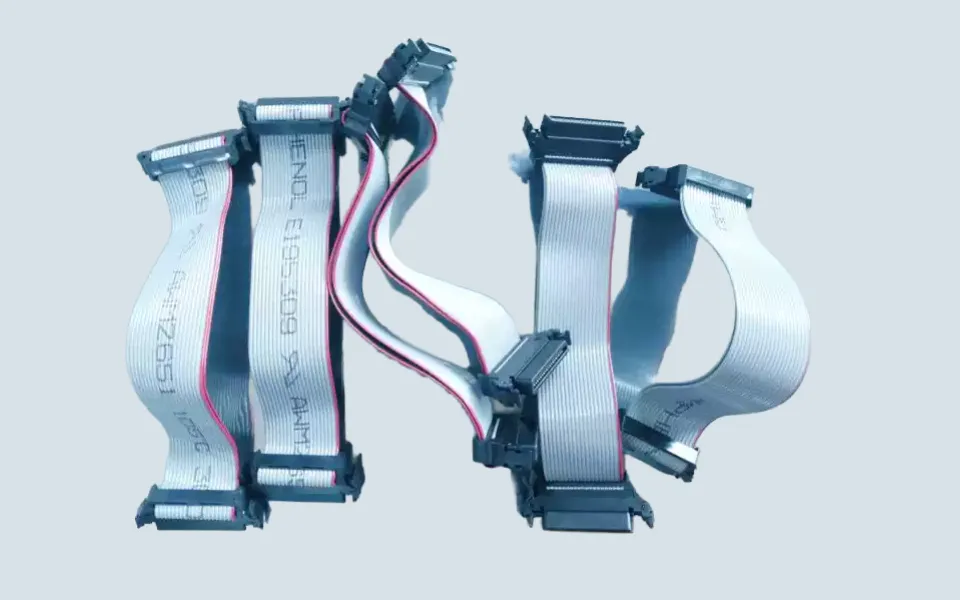

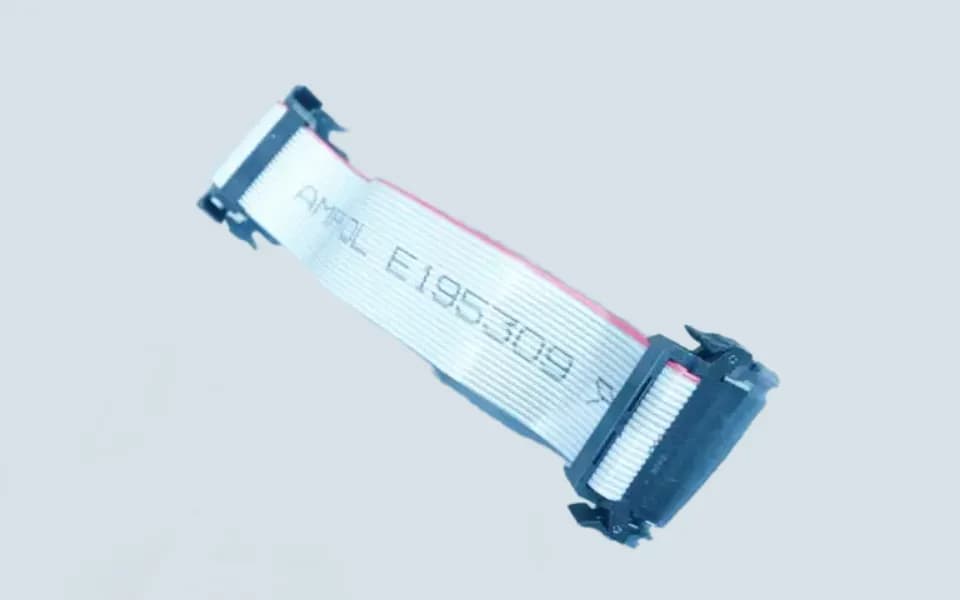

AMPHENOL E195309 is a connection cable assembly commonly used in Mitsubishi elevator controller systems.

This cable is typically installed between the mainboard and related control modules to support signal transmission and system communication during elevator operation.

It is commonly associated with:

• controller communication
• mainboard connections
• signal transmission
• internal cabinet wiring
• system integration assemblies

Reliable cable connections are important for maintaining stable communication between electronic control components.

Common Field Situation

In older Mitsubishi elevator systems, communication faults are not always caused by the mainboard itself.

Technicians may inspect connection cables when encountering:

• intermittent communication alarms
• random controller faults
• display communication loss
• unstable signal transmission
• startup communication errors

In some machine-room environments, long-term vibration, humidity, or repeated maintenance work may gradually affect cable reliability.

Why Connection Cables Matter

A controller system depends on stable communication between multiple electronic modules.

When a connection cable becomes loose, damaged, or oxidized, symptoms may appear that resemble PCB failure.

For this reason, experienced technicians often inspect:

• cable assemblies
• connectors
• terminals
• communication ports

before replacing expensive electronic boards.

System Relationship

The AMPHENOL E195309 cable commonly works together with:

• main control boards
• interface boards
• communication modules
• display systems
• controller cabinets

If communication pathways become unstable, multiple subsystems may be affected simultaneously.

This is why cable integrity is an important part of elevator troubleshooting procedures.

Practical Maintenance Notes

In modernization projects, technicians sometimes replace connection cables together with:

• controller boards
• communication modules
• cabinet terminals
• connector assemblies

to improve long-term system reliability and reduce intermittent faults.

Cable routing and connector locking should always be checked during installation.

FAQ

Can a damaged connection cable cause elevator communication faults?

Yes. In some Mitsubishi systems, loose connectors, damaged wiring, or contact oxidation may interrupt communication between controller modules.

Why do technicians inspect cables before replacing a PCB?

Because many communication-related faults may originate from wiring or connector issues rather than the electronic board itself.

Can vibration affect controller connection cables?

Long-term vibration may gradually loosen connectors or affect cable assemblies, especially in older elevator installations.

Installation Notes

Before replacement:

• verify the connector type and pin configuration
• check cable length and routing path
• inspect terminals for oxidation or damage
• ensure all locking mechanisms are secured

Some Mitsubishi controller generations use different cable assemblies even when the connector appearance is similar.
