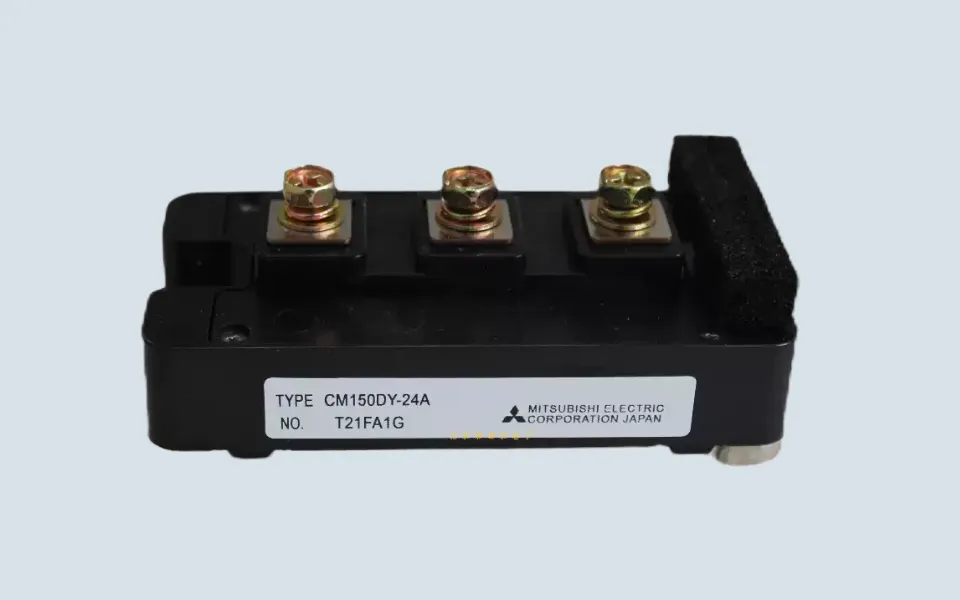

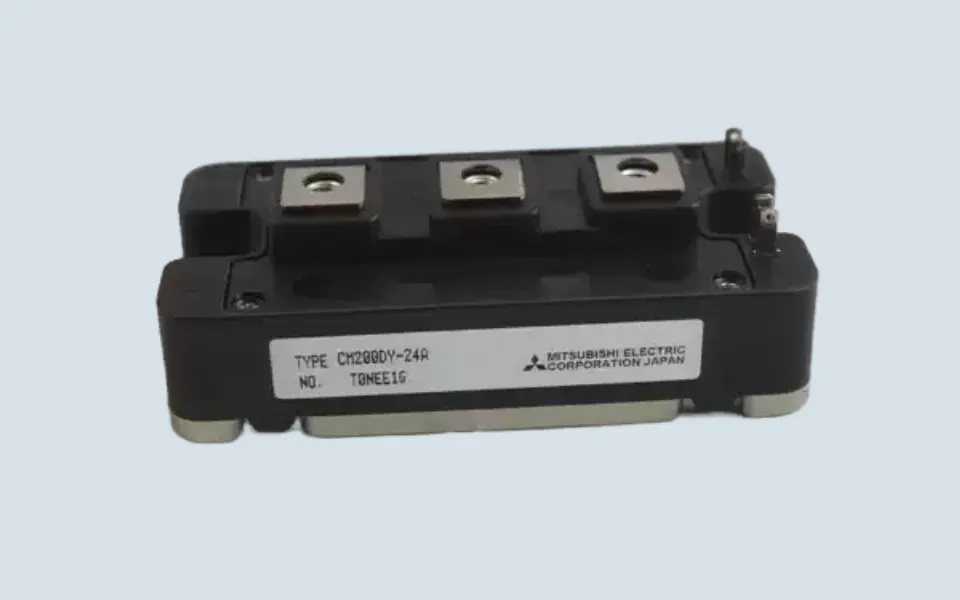

Mitsubishi Elevator Modules: CM100DY-24H, CM150DY-24NF, CM200DY-24A, CM300DY-12H

CM100DY-24H, CM150DY-24NF, CM200DY-24A, and CM300DY-12H are Mitsubishi IGBT power modules commonly used in elevator drive and inverter systems.

These modules are designed for high-power switching applications and are typically installed in elevator drive units responsible for motor control and power conversion. Mitsubishi's DY series modules integrate IGBTs and free-wheel diodes in compact insulated packages for inverter applications.

They are commonly associated with:

• elevator drive systems
• inverter assemblies
• traction motor control
• power conversion circuits
• variable frequency drive (VFD) systems

Common Field Situation

In aging elevator drive systems, power module failures are often linked to long-term thermal stress and continuous operation.

Technicians may inspect IGBT modules when encountering:

• drive unit fault alarms
• elevator startup failures
• abnormal motor acceleration
• inverter protection trips
• intermittent shutdowns under load

In commercial buildings with high traffic volume, drive components operate continuously and may experience increased thermal cycling over time.

Why IGBT Modules Are Important

The IGBT module is one of the core components inside an elevator inverter.

It helps control the power supplied to the traction motor and directly influences:

• acceleration smoothness
• deceleration control
• energy efficiency
• motor response performance
• ride comfort

A stable power module contributes to smoother elevator travel and more reliable drive system operation.

System Relationship

These modules typically work together with:

• inverter control boards
• drive power supplies
• traction motors
• braking resistors
• cooling systems

When a power module becomes unstable, the inverter may generate fault codes or protective shutdown signals.

In some modernization projects, technicians inspect the cooling fan and heat sink assembly together with the IGBT module to ensure proper thermal management.

FAQ

What does an IGBT module do in an elevator?

An IGBT module controls high-power switching inside the inverter and helps regulate power delivered to the traction motor.

Can a faulty IGBT module cause elevator shutdowns?

Yes. In many drive systems, module failure may trigger inverter protection, startup faults, or abnormal motor operation.

Why do IGBT modules fail after long-term operation?

Continuous thermal cycling, inadequate cooling, electrical stress, and aging components may gradually affect module reliability.

Maintenance Notes

Before replacement:

• module model should match the original specification
• voltage and current ratings should be verified
• thermal compound condition should be checked
• heat sink surfaces should be cleaned

Different Mitsubishi drive generations may use different DY-series module configurations depending on motor power and controller design.
