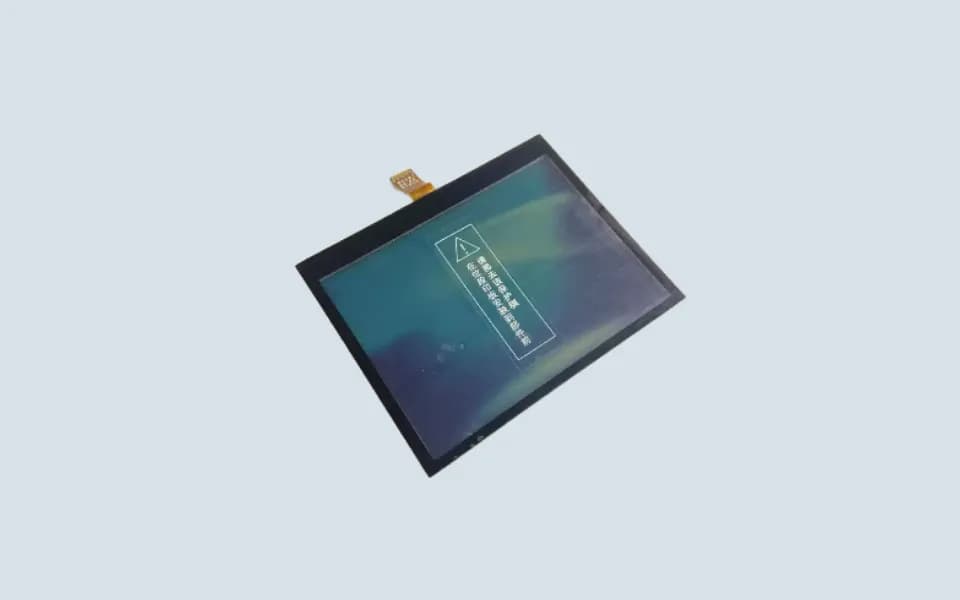

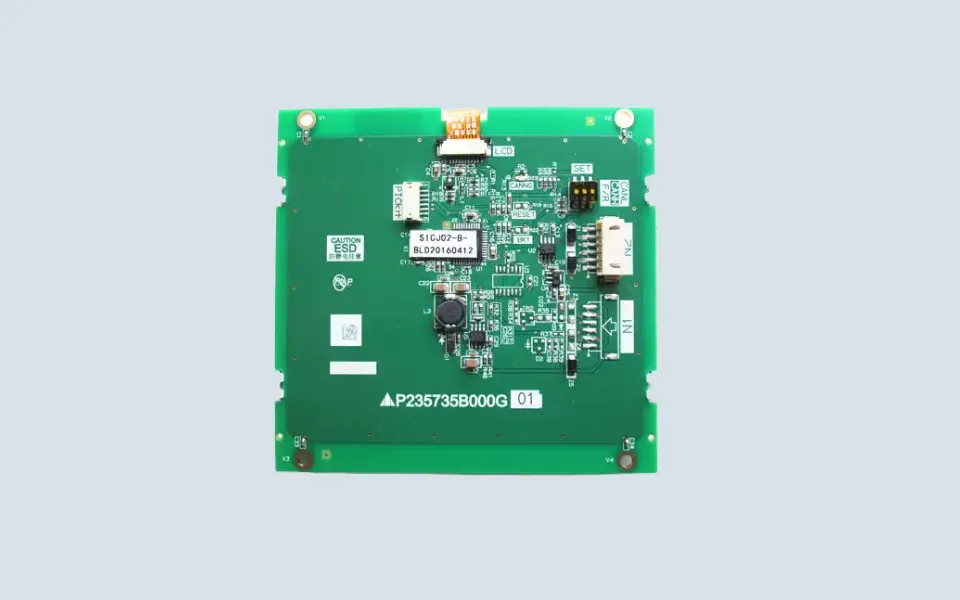

Mitsubishi LCD Display Panel P235735B000G01

Mitsubishi LCD Display Panel P235735B000G01 is commonly used in Mitsubishi elevator car operating panel display systems.

This LCD display board is usually installed inside the COP area to show floor information, running direction, status indication, and passenger-facing display content. In elevator maintenance work, it is often checked when the car display becomes dim, unreadable, unstable, or unable to show correct floor information.

Unlike a main controller board, this part directly affects what passengers see inside the elevator car. For commercial buildings, hotels, hospitals, and residential towers, a clear and stable elevator display is important for both passenger experience and maintenance visibility.

Related Display Board Models

This Mitsubishi LCD display panel may be searched under several related model numbers:

• P235735B000G01

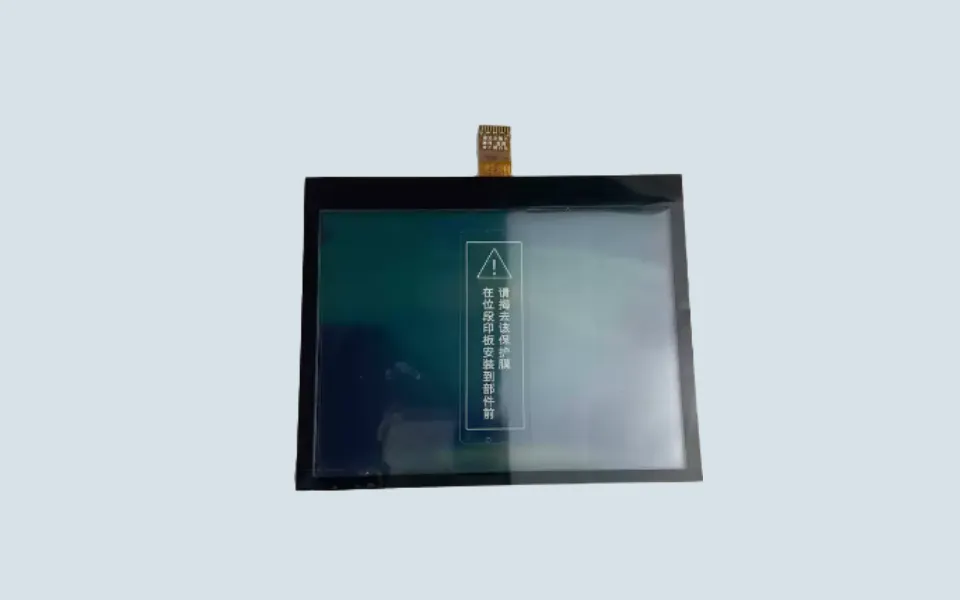

• P235735B000G02
• P235735B000G03

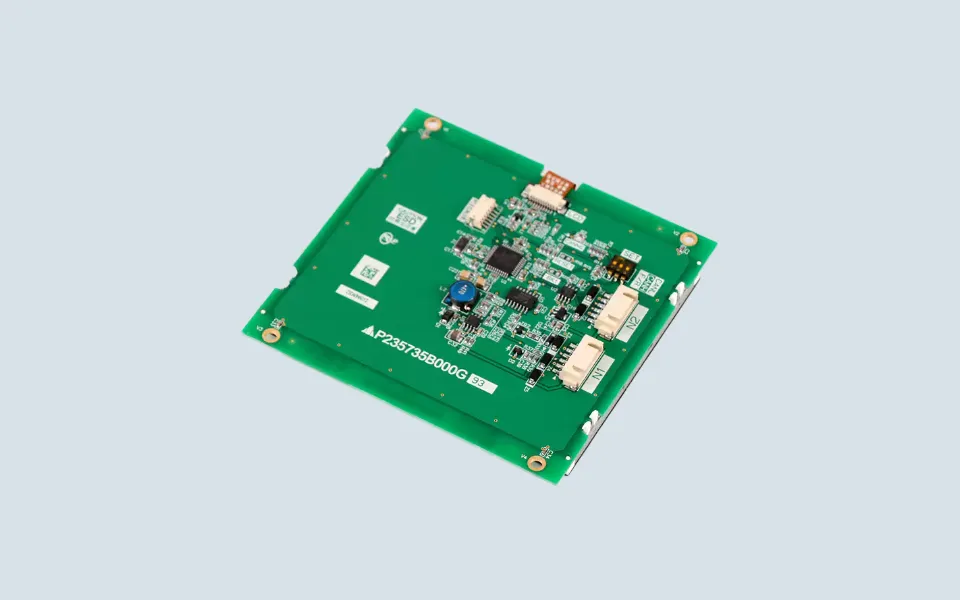

• P235735B000G93

Some suppliers describe this series as Mitsubishi elevator PCB LCD display board or Mitsubishi COP LCD display board. P235735B000G01 and P235735B000G93 are also commonly listed together in market sources, so both model numbers are worth including for long-tail search coverage.

Before ordering, it is better to confirm the original board label, connector position, screen layout, and panel size. Similar Mitsubishi display boards may look close from the front but use different board versions or connector arrangements.

Display Problems Commonly Seen in Older Buildings

In older elevator installations, building managers may report that the car display still works, but the screen becomes weak, unstable, or difficult to read.

Typical symptoms may include:

• dim LCD display
• missing floor numbers
• unstable direction indication
• partial screen failure
• display flickering
• no response after power-on
• wrong or delayed floor information

These symptoms are not always caused by the LCD panel alone. In some cases, technicians also inspect the power supply, communication board, signal cable, and COP wiring before confirming the display board fault.

Replacement Matching Notes

For this type of Mitsubishi LCD display panel, model confirmation is more important than general product appearance.

Before purchase, please check:

• exact model number on the old board
• P235735B000G01 / G02 / G03 / G93 version
• board connector position
• LCD display size
• COP installation space
• cable condition
• original board photo

If the old label is unclear, a photo of the front display, back board, connector, and elevator COP can help confirm the correct replacement.

Practical Maintenance Reminder

When replacing P235735B000G01 LCD display panel, technicians usually test the display after installation by checking floor indication, direction arrow, startup response, and communication stability.

If the new display does not work normally after replacement, the fault may come from the signal line, power supply, or related COP control board rather than the display panel itself.
