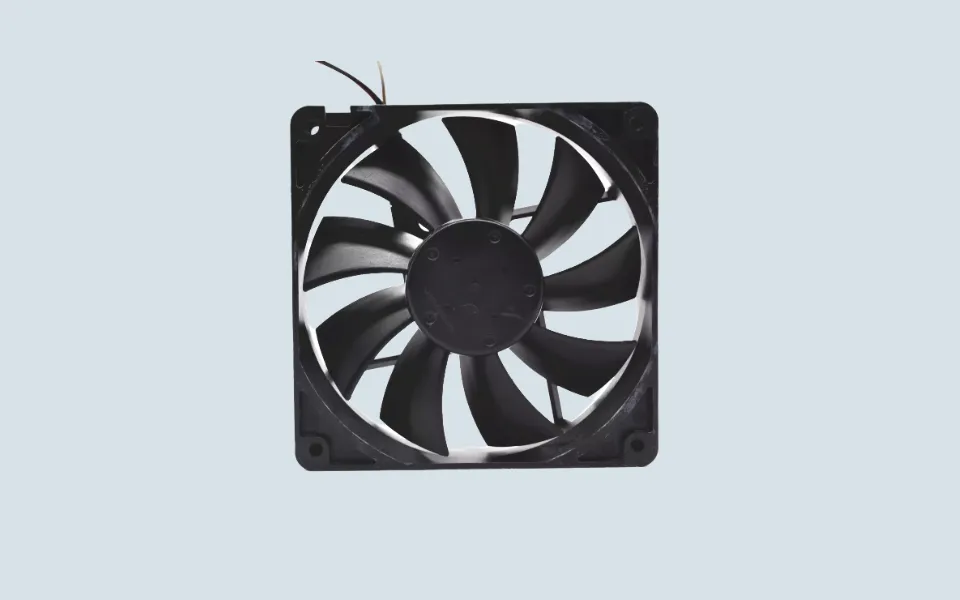

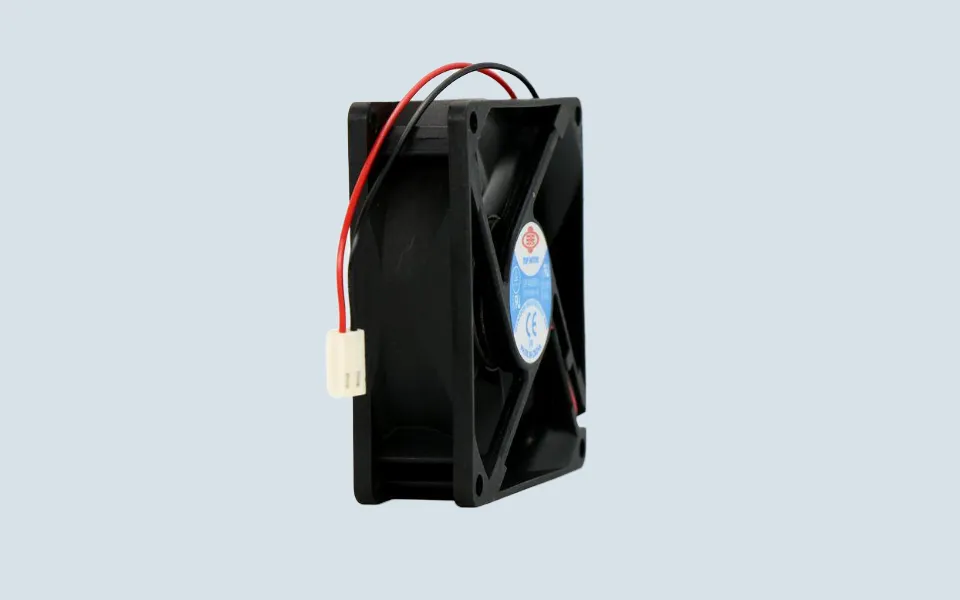

Mitsubishi Elevator Inverter Fan DF4808BA-4 — DC 48V, 0.09A, 8cm

DF4808BA-4 is a DC48V cooling fan commonly used in Mitsubishi elevator inverter cabinets and control systems.

Designed for continuous airflow operation, this fan helps remove heat generated by electronic components inside the drive cabinet and contributes to stable inverter performance during daily elevator operation.

Typical specifications include:

• Model: DF4808BA-4
• Voltage: DC48V
• Current: 0.09A
• Fan Size: 80mm × 80mm × 25mm
• Application: inverter and control cabinet cooling

This type of cooling fan is commonly installed near drive boards, power modules, and control electronics where long-term thermal stability is important.

A Service Situation Found During Summer Maintenance

During routine maintenance in a commercial building in Saudi Arabia, technicians reported that an elevator occasionally entered protection mode during peak afternoon operating hours.

The inverter itself showed no major fault history.

After inspection, the actual issue was traced to reduced airflow from an aging cabinet cooling fan. Dust accumulation and bearing wear had lowered cooling efficiency, causing internal temperatures to rise gradually during continuous operation.

After replacing the DF4808BA-4 fan and cleaning the cabinet ventilation path, operating temperatures returned to normal and the protection alarms disappeared.

Why Small Cooling Fans Can Cause Large Problems

In many elevator systems, cooling fans are inexpensive components compared with inverter boards or IGBT modules.

However, insufficient airflow may affect:

• inverter operating temperature
• power module reliability
• controller stability
• cabinet ventilation efficiency
• long-term electronic component lifespan

Because temperature increases gradually, cooling fan problems are sometimes overlooked until repeated drive alarms begin appearing.

Components Often Checked Together

When replacing a DF4808BA-4 fan, technicians often inspect:

• cabinet air filters
• heat sinks
• inverter cooling channels
• fan connectors
• power supply circuits

In older installations, restricted airflow can sometimes create symptoms that resemble inverter board faults even when the electronics remain functional.

Maintenance Reminder

Before replacement:

• verify DC48V specification
• confirm fan dimensions
• inspect airflow direction
• clean surrounding ventilation paths
• check connector compatibility

Some Mitsubishi inverter generations may use different fan mounting structures even when the fan size appears similar.

Many maintenance teams replace cooling fans proactively during modernization projects because cooling performance directly affects long-term inverter reliability.
