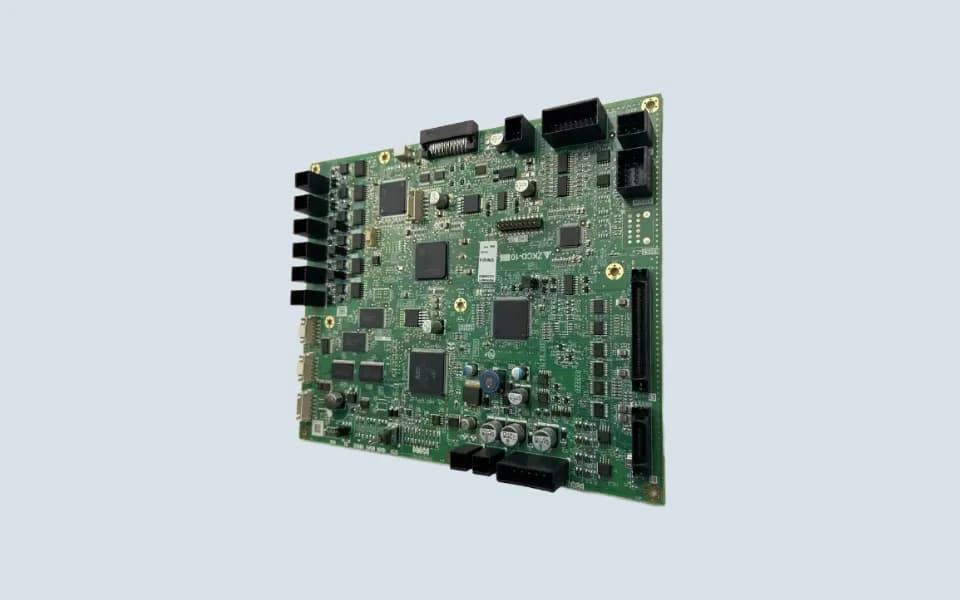

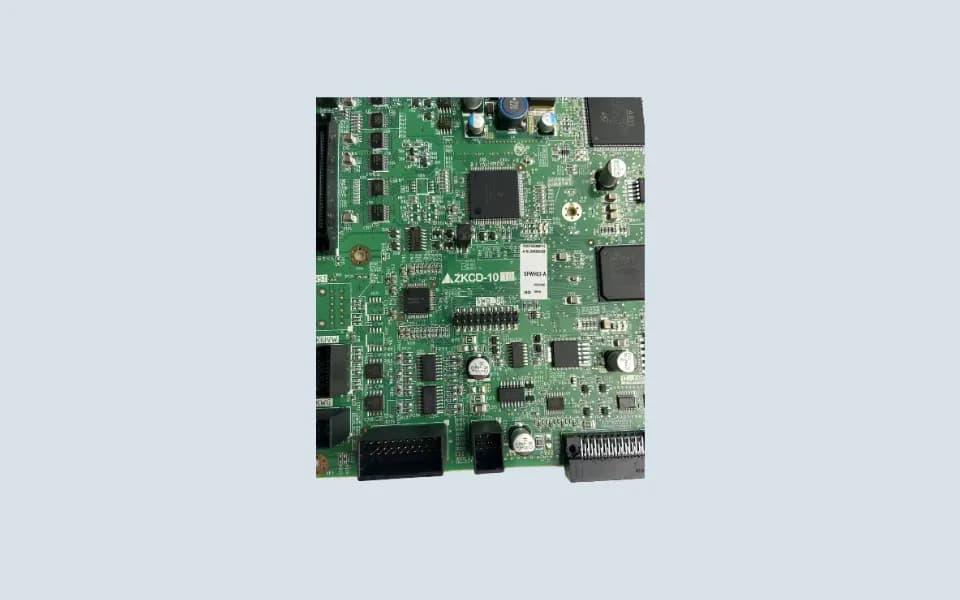

Mitsubishi Elevator Mainboard ZKCD-101A

Mitsubishi Elevator Mainboard ZKCD-101A is a main control PCB board used in Mitsubishi elevator control systems.

This board is usually identified by the printed model number on the PCB or the label on the original mainboard. In the elevator spare parts market, buyers may describe it as a Mitsubishi elevator mainboard, Mitsubishi elevator main control board, Mitsubishi elevator PCB board, or elevator controller main board.

For this type of board, the exact model number is the first confirmation point. The board should not be selected only by appearance, because similar ZKCD series boards may have different software versions, connector layouts, or control system configurations.

ZKCD Series Model References

This page can naturally cover the following related search references:

• ZKCD-101A
• ZKCD-101B
• ZKCD-102A
• ZKCD-102B
• ZKCD-103A
• ZKCD-111A
• ZKCD-121C
• ZKCD-126A

Some product listings group ZKCD-101A with ZKCD-126A, ZKCD-102A, ZKCD-102B, ZKCD-103A, ZKCD-111A, and ZKCD-121C as Mitsubishi elevator main PCB board models. These references are useful for search coverage and customer inquiry matching, but they should not be treated as automatically interchangeable.

Why Mainboard Confirmation Is Different From Other PCB Boards

A Mitsubishi elevator mainboard is not the same as a simple relay board, display board, or power board.

For main control boards, technicians usually need to confirm not only the physical PCB, but also the system version and connection environment. A board with a similar model family may still require a different program, parameter setting, connector configuration, or matching cabinet system.

For this reason, ZKCD-101A should be confirmed by the old board label and actual site photos before ordering.

What Buyers Should Check First

Before confirming Mitsubishi Elevator Mainboard ZKCD-101A, please check:

• Complete ZKCD-101A marking
• Whether the old board shows ZKCD-101B or another ZKCD suffix
• Front and back photos of the PCB
• Connector quantity and position
• Control cabinet installation photo
• Any removable chip, program label, or version marking
• Elevator system or controller cabinet information
• Original fault description if available

If the old board label is unclear, a complete cabinet photo and close-up photos of the PCB markings can help confirm the correct model faster.

Typical Replacement Attention

Mainboard problems may appear as control system startup failure, abnormal elevator response, communication faults, floor signal issues, or visible PCB damage.

However, technicians usually inspect the surrounding system before replacing the mainboard, including:

• Cabinet power supply
• Wiring terminals
• Communication connections
• Fuse or protection circuit
• Related input and output boards
• Connector oxidation
• Signs of water damage, short circuit, or overheating

If the original mainboard was damaged by external power instability, wiring short circuit, or another cabinet fault, replacing only the PCB may not solve the problem.

Practical Supply Reminder

For overseas buyers, the safest way to confirm this part is to send clear photos of the original board before shipment.

If the required board is ZKCD-101A, ZKCD-101B, ZKCD-102A, ZKCD-102B, ZKCD-103A, ZKCD-111A, ZKCD-121C, or ZKCD-126A, please provide the exact label photo. This helps avoid selecting a visually similar but incompatible Mitsubishi elevator mainboard.
