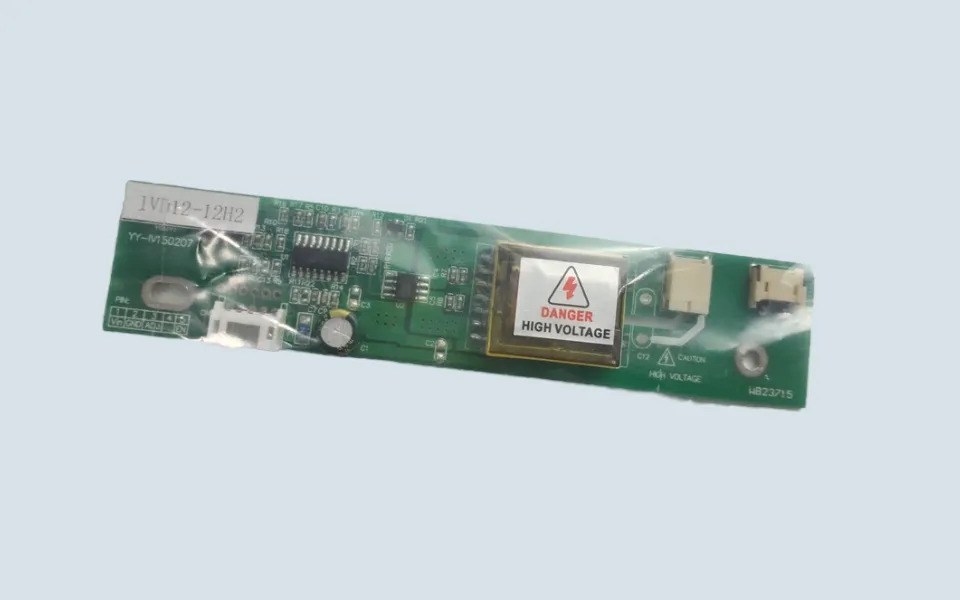

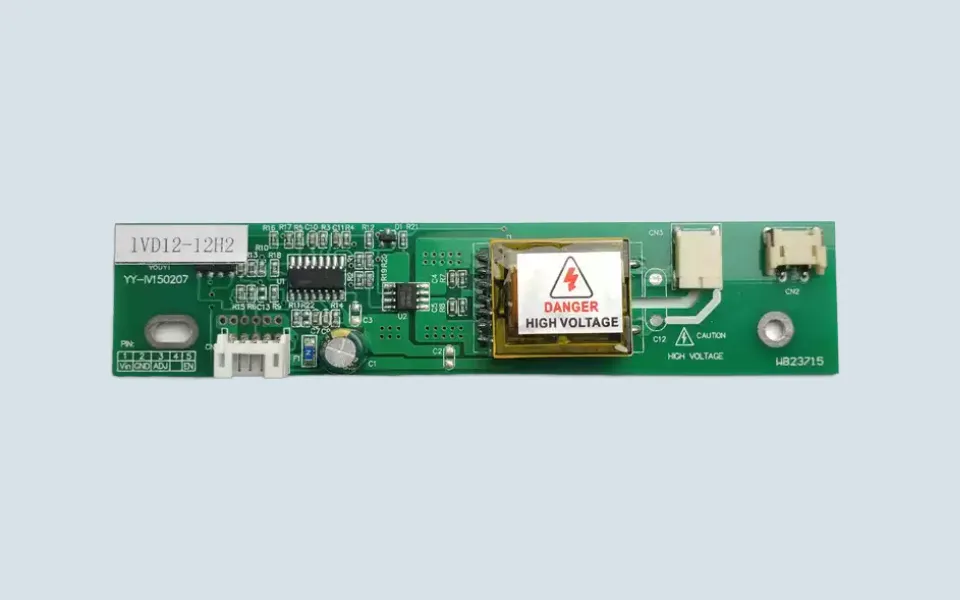

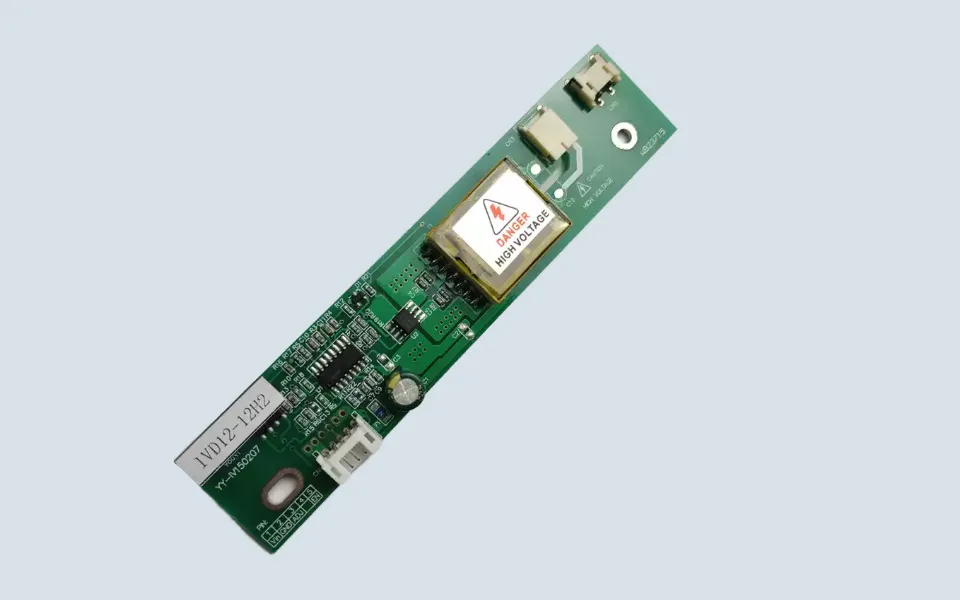

Mitsubishi Elevator LCD Screen High-Voltage Inverter Board (IVD12-12H2)

IVD12-12H2 is commonly used in Mitsubishi elevator LCD display backlight systems.

This high-voltage inverter board is mainly associated with:

• LCD screen backlight power
• display illumination control
• screen startup voltage
• display brightness stability

Usually installed behind the LCD module or inside the display assembly where stable backlight power is required during elevator operation.

Similar inverter modules are commonly used in Mitsubishi LCD display systems and industrial LCD backlight applications.

A Frequent Cause of Positioning Errors

In some older Mitsubishi elevators in Malaysia and Romania, LCD display problems may gradually appear after long-term operation, especially in high-temperature controller environments.

Typical situations may include:

• screen becomes dark intermittently
• display visible under flashlight only
• unstable LCD brightness
• delayed screen startup
• flickering backlight during operation

During troubleshooting work, technicians sometimes replace the inverter board together with the LCD cable or display panel.

Why High-Voltage Inverter Boards Matter

Unlike standard display communication boards, the inverter board mainly supports LCD backlight operation.

If the inverter output becomes unstable, the LCD may still receive signal data but the screen illumination can become abnormal.

Because of this, some Mitsubishi maintenance projects inspect the inverter board first when the display appears black but communication remains normal.

What Technicians Inspect Next

The inverter board commonly works together with:

• LCD display panels
• display communication boards
• screen power circuits
• COP / LOP display modules

Some Mitsubishi display systems use separate inverter structures depending on screen size and display generation. Similar Mitsubishi LCD display systems and inverter-related display modules are commonly found in elevator maintenance markets.

FAQ

Why is the elevator LCD screen dark but still running?

In some Mitsubishi systems, unstable inverter output may affect screen backlight even when display communication remains normal.

Can inverter board problems cause LCD flickering?

Yes. Aging inverter components or unstable high-voltage output may gradually affect display brightness stability.

Things Technicians Usually Check

Before replacement:

• inverter model should match original LCD configuration
• connector layout must be confirmed carefully
• output voltage compatibility should be checked

Some Mitsubishi LCD systems use different inverter boards depending on screen size and backlight structure.
