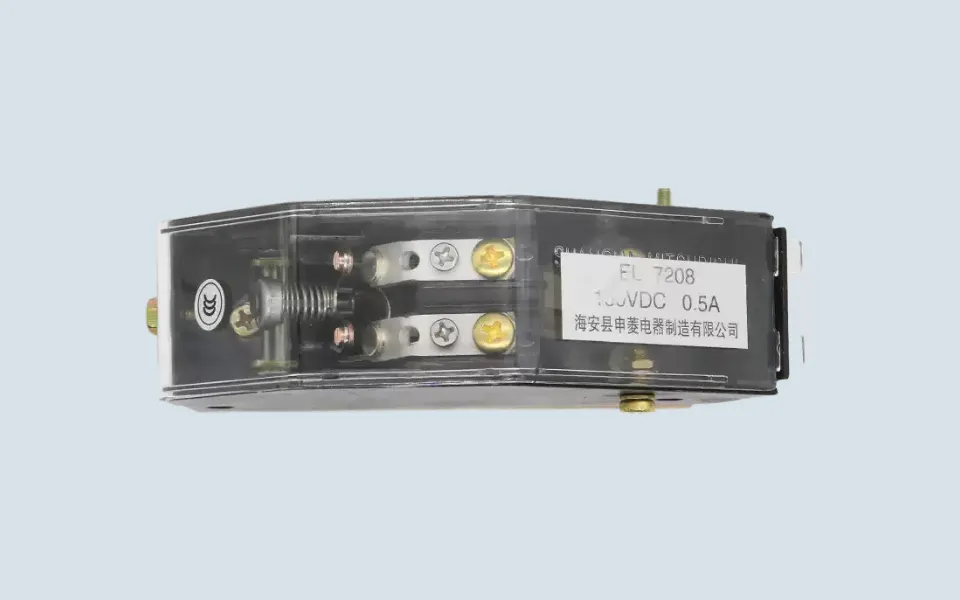

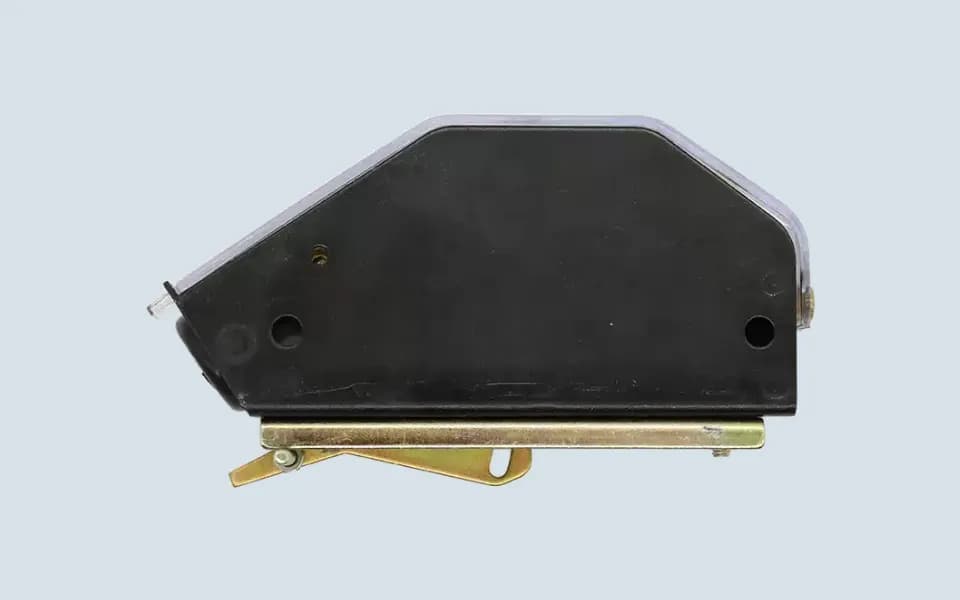

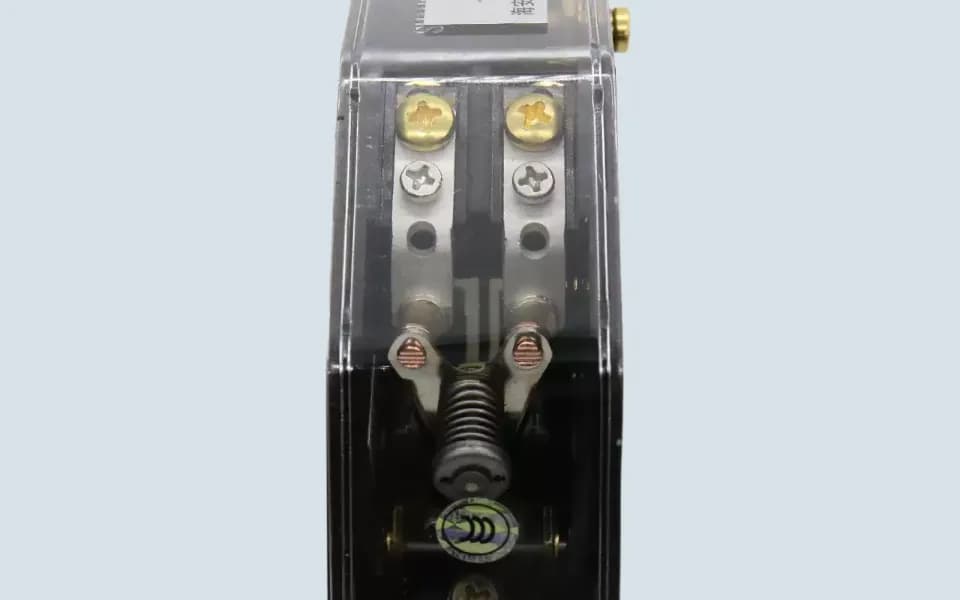

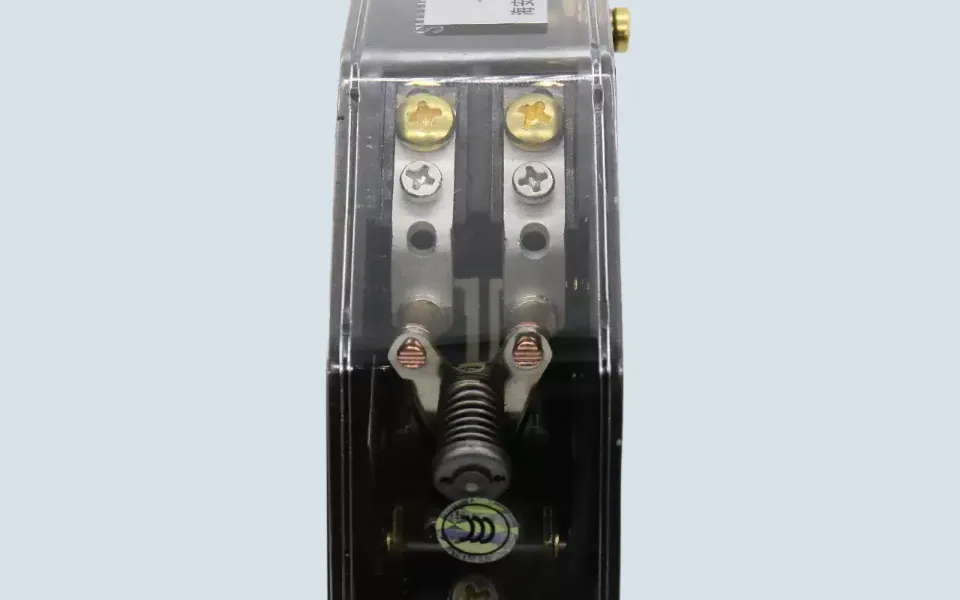

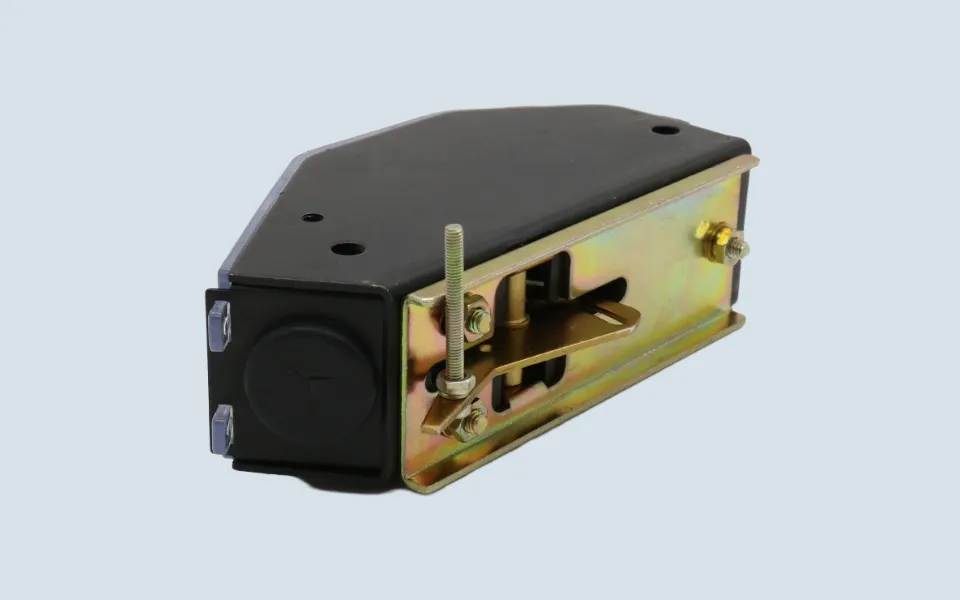

Mitsubishi Elevator Overspeed Governor Limit Switch EL-7208

EL-7208 is a safety-related limit switch commonly used in Mitsubishi elevator overspeed governor systems.

This switch is designed to work with the governor mechanism and safety circuit to monitor operating conditions and provide protective signals when abnormal speed conditions occur.

It is typically found in systems associated with:

• overspeed governor assemblies
• elevator safety circuits
• safety gear activation systems
• controller protection logic
• inspection and monitoring functions

Role in Elevator Safety Systems

Unlike ordinary control switches, the EL-7208 is part of the elevator's safety protection chain.

When the governor detects abnormal operating conditions, the switch may participate in transmitting safety-related signals to the controller or protection circuit.

Because of this, governor switches are commonly inspected during periodic elevator safety testing and maintenance procedures.

Common Maintenance Situation

In some older Mitsubishi elevators operating in commercial buildings and residential towers, technicians may inspect governor switches when encountering:

• governor fault alarms
• intermittent safety circuit interruptions
• abnormal inspection test results
• governor system maintenance requirements
• unexpected safety chain faults

During troubleshooting, the switch is often checked together with the governor mechanism, wiring terminals, and related safety devices.

Why Safety Circuit Reliability Matters

The governor system is one of the most important mechanical safety devices in an elevator.

A stable safety circuit helps ensure proper communication between:

• governor assemblies
• safety gear systems
• controller safety inputs
• monitoring circuits

For this reason, maintenance companies usually include governor switches in annual safety inspections and modernization assessments.

FAQ

What does an overspeed governor switch do?

The switch helps provide status or protection signals within the elevator safety system and works together with the governor assembly.

Can a faulty governor switch affect elevator operation?

Yes. In some systems, unstable switch contacts or wiring issues may cause safety circuit faults or inspection warnings.

Why are governor components inspected regularly?

Because governor systems are part of the elevator's core safety protection mechanism and require reliable operation throughout the service life of the elevator.

Installation Notes

Before replacement:

• switch model should match the original governor configuration
• contact type should be verified
• mounting position should remain unchanged
• safety circuit connections should be checked carefully

Some Mitsubishi governor systems use different switch configurations depending on elevator model and controller generation.
