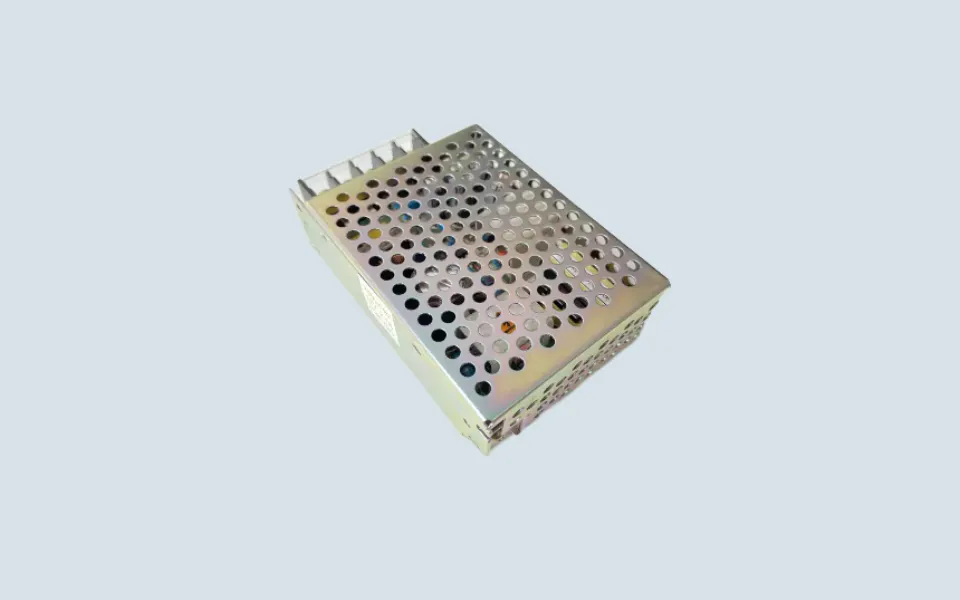

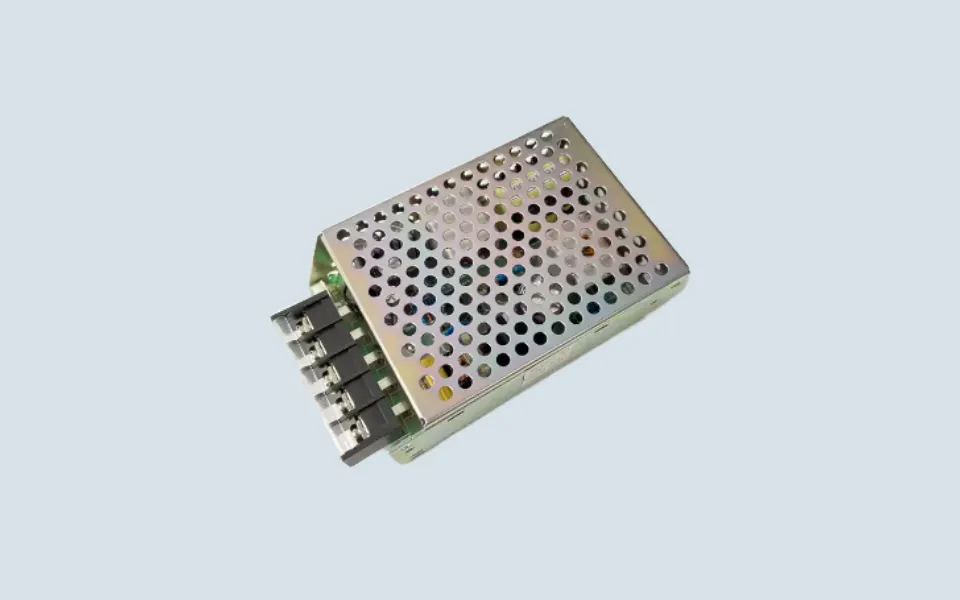

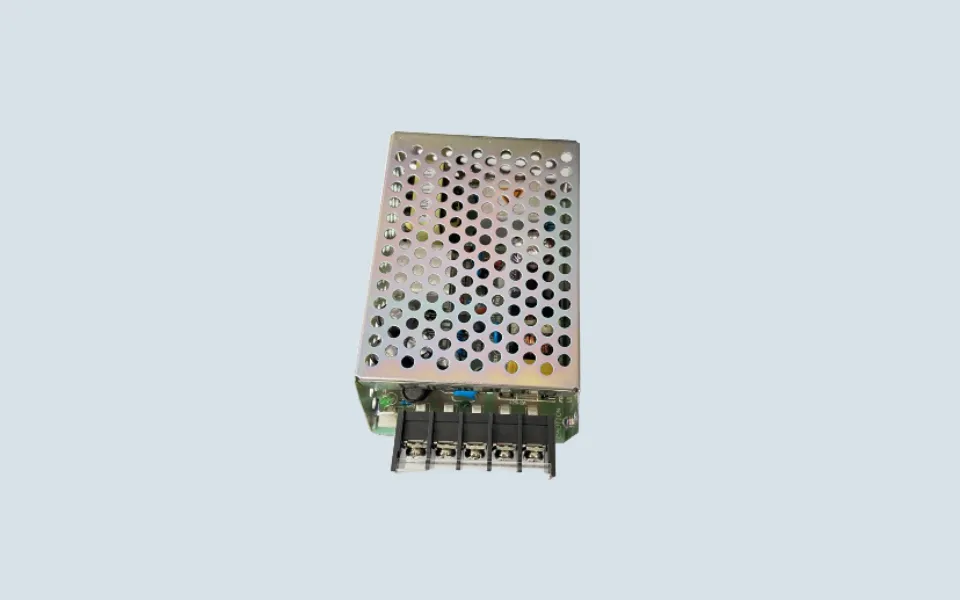

Mitsubishi Elevator Switching Power Supply Z59LX-103

Mitsubishi Elevator Switching Power Supply Z59LX-103 is commonly used in Mitsubishi elevator control cabinet power supply systems.

This power supply unit is usually installed inside the elevator controller cabinet or related electrical control section to provide stable low-voltage output for signal circuits, display modules, communication boards, relay circuits, and other electronic control components.

In elevator maintenance work, Z59LX-103 is usually checked when low-voltage power becomes unstable and causes intermittent display reset, signal interruption, communication board restart, or abnormal controller input behavior.

Related Power Supply Models

This Mitsubishi elevator switching power supply may be searched under several related model numbers:

• Z59LX-103
• LDA30F-12
• CUS30-12
• CUS30-12-2.5A
• Z59LX-83
• Z59LX-100

Your existing product indexing shows Z59LX-103 LDA30F-12 CUS30-12 together, so these model references are worth adding into the page for long-tail SEO coverage. A separate market listing also shows CUS30-12-2.5A / Z59LX-100 as a Mitsubishi elevator switching power supply board reference.

These models should be treated as related Mitsubishi elevator power supply references, not automatically interchangeable replacements. Before ordering, the original label, output voltage, connector type, and control cabinet wiring should be confirmed carefully.

A Low-Voltage Fault Found During Maintenance

In one elevator maintenance case, the elevator could still run, but the floor display occasionally restarted during operation.

At first, technicians suspected the display board or communication board.

After checking the control cabinet, they found that the low-voltage power supply output was unstable under load. The display board itself was not damaged, but the unstable power supply caused repeated reset behavior in the signal circuit.

After replacing the switching power supply and checking the wiring terminals, the display and communication response returned to stable operation.

Why This Problem Is Often Misjudged

A weak switching power supply does not always stop the elevator immediately.

In real maintenance work, technicians may notice:

• intermittent display reset
• communication interruption
• controller input errors
• relay circuit instability
• random low-voltage faults
• abnormal signal response after long operation

These symptoms can look similar to PCB failure. Because of this, experienced maintenance teams usually check the power supply output before replacing expensive control boards.

Parts Often Checked Together

When servicing Mitsubishi Elevator Switching Power Supply Z59LX-103, technicians usually inspect:

• AC input voltage
• DC output voltage
• wiring terminals
• fuse condition
• display board power input
• communication board power input
• cabinet grounding
• cabinet ventilation condition

In older Mitsubishi control cabinets, terminal oxidation, unstable input voltage, or poor heat dissipation may also affect power supply reliability.

Before Ordering

Please confirm the following before purchase:

• original model number: Z59LX-103
• LDA30F-12 / CUS30-12 marking if available
• output voltage
• output current
• terminal or connector type
• mounting size
• original power supply label photo
• elevator controller cabinet model

Some Mitsubishi switching power supplies may look similar but use different voltage outputs or wiring structures. The safest way to confirm compatibility is to provide a clear photo of the original label and cabinet connection.
