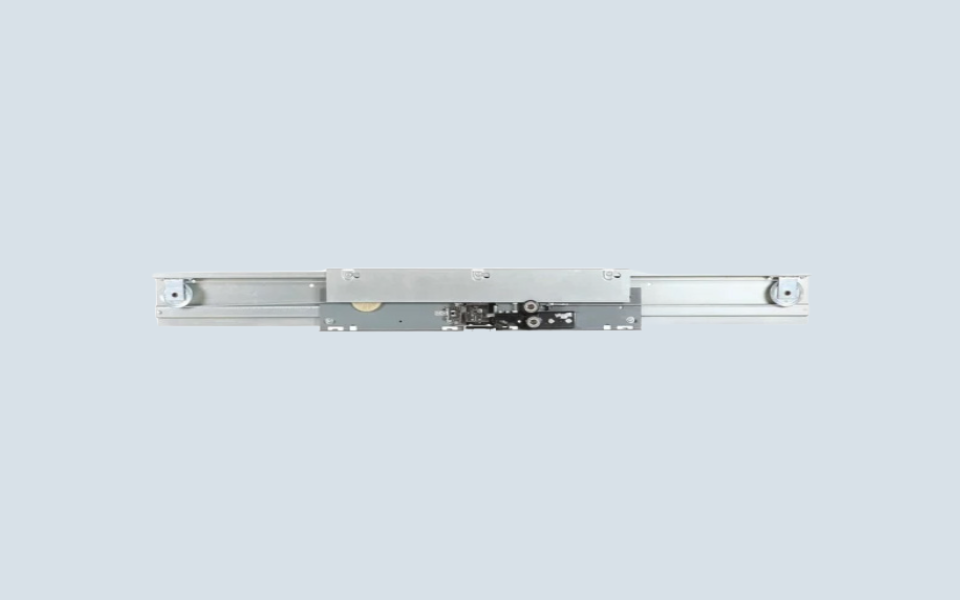

Mitsubishi Landing Door

Elevator Shaft Door System for Safe Floor-Level Operation

Product Overview

The Mitsubishi Landing Door is the fixed door system installed at each floor level, designed to work together with the elevator car door to control passenger access. Unlike the car door, which moves with the cabin, the landing door is part of the building structure and must remain securely locked unless the car is correctly positioned.

In long-running installations across regions such as Thailand and the UAE, Mitsubishi landing doors are often maintained as part of the original system rather than replaced entirely. This is mainly because the door structure, locking mechanism, and safety circuit are closely integrated with the elevator’s control logic.

For maintenance teams, the focus is usually on keeping the system stable rather than modifying its original configuration.

---

Role in Elevator Safety System

The landing door is not just a physical barrier — it is part of the elevator safety system.

Its key functions include:

• preventing access to the shaft when the car is not present
• working with the door lock system to ensure safe operation
• coordinating with the car door during opening and closing
• providing structural separation between floors and shaft

Because of this, landing doors are directly connected to safety circuits and interlock systems.

---

Structural Characteristics

Mitsubishi landing doors are typically designed with:

• integrated door lock mechanism
• panel and frame structure fixed to the shaft
• linkage with car door movement
• compatibility with system-specific control signals

Unlike more interchangeable systems, the design is usually aligned with the original elevator setup.

---

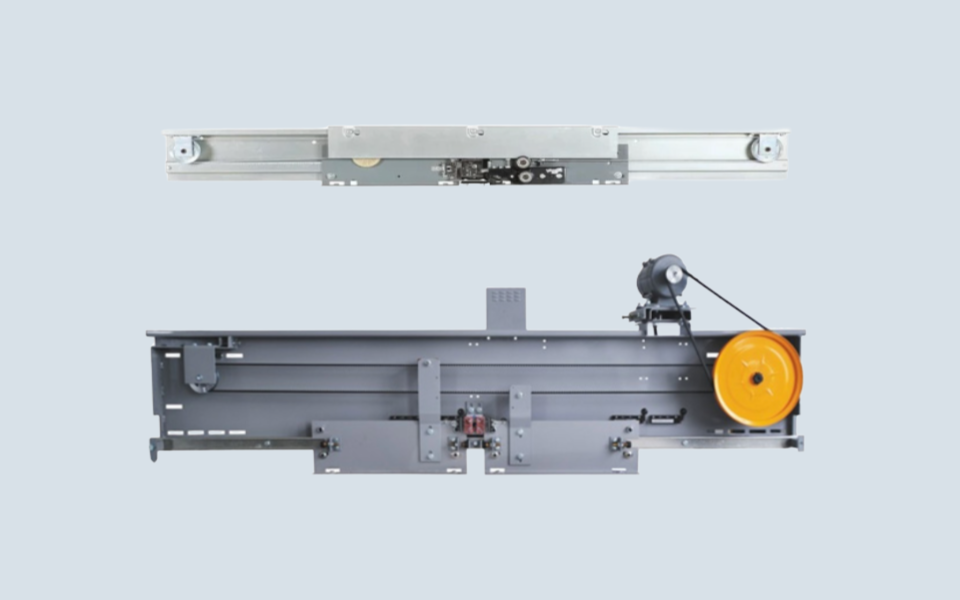

Difference from Car Door

It’s important to understand the distinction:

• Car Door → moves with the elevator car
• Landing Door → fixed at each floor

The landing door depends on the car door to trigger its opening, which means both systems must operate in coordination.

---

Application Context

Mitsubishi landing doors are commonly found in:

• residential high-rise buildings
• office buildings
• hotels and commercial projects

In Southeast Asian markets such as Thailand, many buildings continue using original Mitsubishi door systems for long periods, with maintenance focused on component-level replacement rather than full system upgrades.

---

Maintenance Considerations

Technicians typically inspect landing doors when:

• door fails to open with the car
• locking mechanism becomes unstable
• alignment between car and landing door is affected
• noise or resistance increases during operation

In many cases, issues are related to the door lock, rollers, or alignment rather than the full door structure.

---

Practical Observations

From a service perspective:

• Mitsubishi landing doors are usually system-dependent
• replacement often requires matching original specifications
• maintenance focuses on safety reliability rather than modification

This approach is common in installations where long-term stability is already proven.

---

Frequently Asked Questions

What is a Mitsubishi landing door?
It is the door installed at each floor, designed to control access to the elevator shaft.

Is it different from the car door?
Yes. The landing door is fixed, while the car door moves with the elevator.

Why is the landing door important?
It is part of the safety system and prevents access to the shaft when the car is not present.

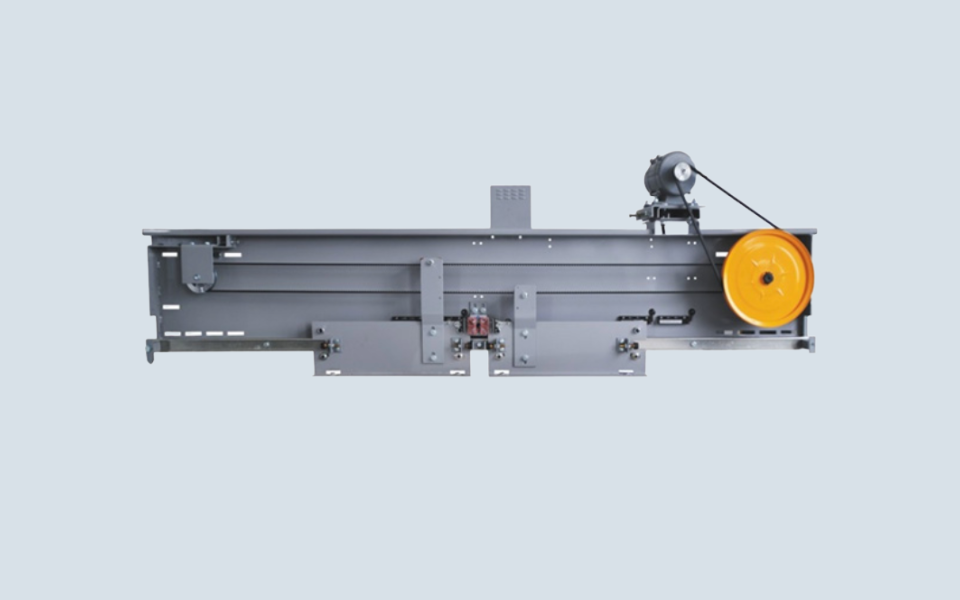

Corresponding Mitsubishi Car Door
