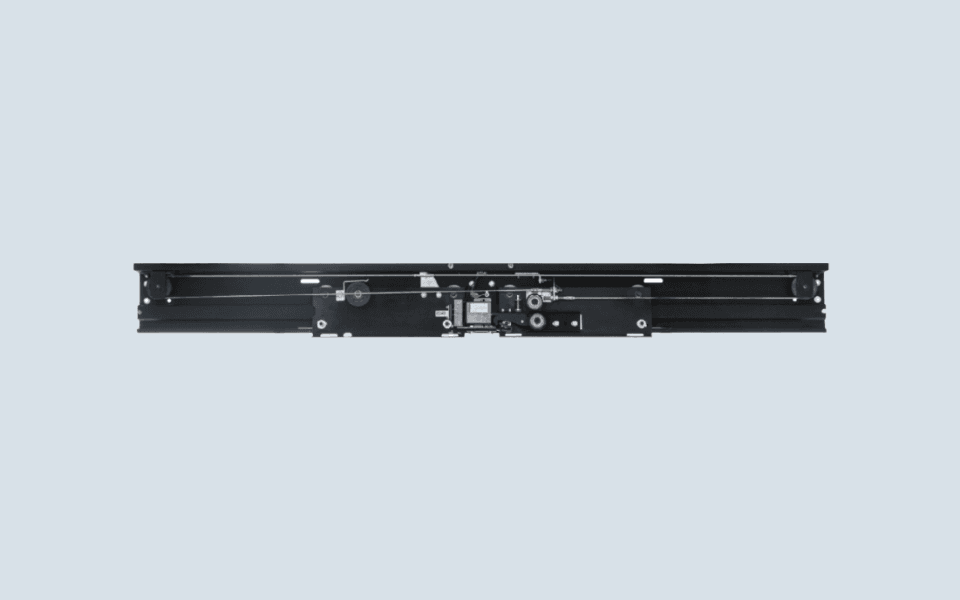

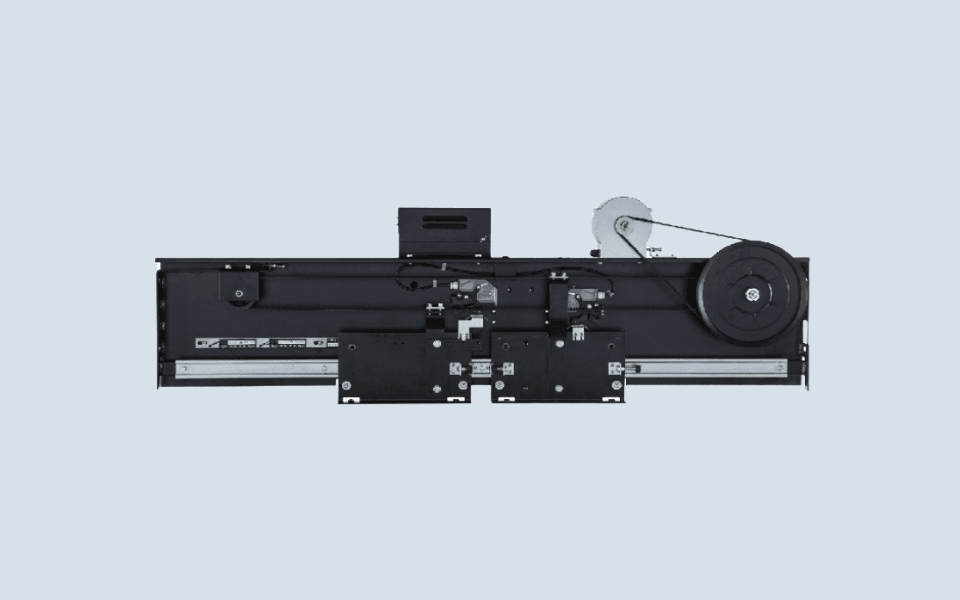

VVVF Car Door Operator Center Opening

Variable Frequency Door Operator for Elevator Center Opening Systems

Product Overview

The VVVF Car Door Operator Center Opening is a drive system used to control the opening and closing movement of elevator car doors in center opening configurations. It combines motor control, transmission components, and electronic regulation to ensure smooth and stable door operation.

In practical installations, especially in projects across the UAE and Spain, center opening door systems are widely used because they provide balanced movement and efficient passenger flow. The VVVF control method allows the door to start and stop more smoothly compared with traditional constant-speed systems.

Rather than being a single part, the door operator is a complete assembly that determines how the door behaves in daily operation.

---

What “VVVF” Means in Door Operation

VVVF stands for Variable Voltage Variable Frequency, a control method used to adjust motor speed dynamically.

In door operator systems, this provides:

• smoother acceleration when the door starts moving
• controlled deceleration before closing
• reduced mechanical shock
• quieter operation

In real projects, this difference is noticeable, especially in buildings with high daily traffic.

---

Center Opening Configuration

In a center opening system, two door panels move symmetrically from the center to both sides.

This configuration offers:

• balanced force distribution
• wider effective opening
• smoother passenger flow
• more stable operation compared with side-opening systems

Because both panels move simultaneously, the door operator must maintain synchronized motion, which makes VVVF control particularly important.

---

System Components

A typical VVVF door operator works together with:

• door motor
• control board / inverter
• door cam and linkage system
• rollers and sliders
• door panels and track system

---

Application Context

VVVF center opening door operators are commonly used in:

• commercial buildings
• residential towers
• hotels
• office buildings
• modernization projects

In South American markets such as Brazil, this type of door system is frequently selected for its balance between cost, performance, and maintenance familiarity.

---

Performance Advantages

Compared with basic door operators, VVVF systems provide:

• smoother door movement
• reduced noise during operation
• improved component lifespan
• better passenger experience

These advantages become more obvious in high-frequency usage environments.

---

Maintenance and Replacement

Technicians may inspect or replace door operator components when:

• door movement becomes unstable
• opening or closing speed is inconsistent
• noise or vibration increases
• control response becomes delayed

In many cases, issues are not caused by the full operator but by related components such as motors, boards, or sliders.

---

Frequently Asked Questions

What is a VVVF door operator?
It is a door control system that uses variable frequency technology to control motor speed and improve door movement performance.

What is center opening in elevator doors?
It means the doors open from the center to both sides simultaneously.

Is VVVF better than traditional door systems?
Yes, it provides smoother operation, less noise, and better control.

Side opening door operators are also used in installations with limited space.
