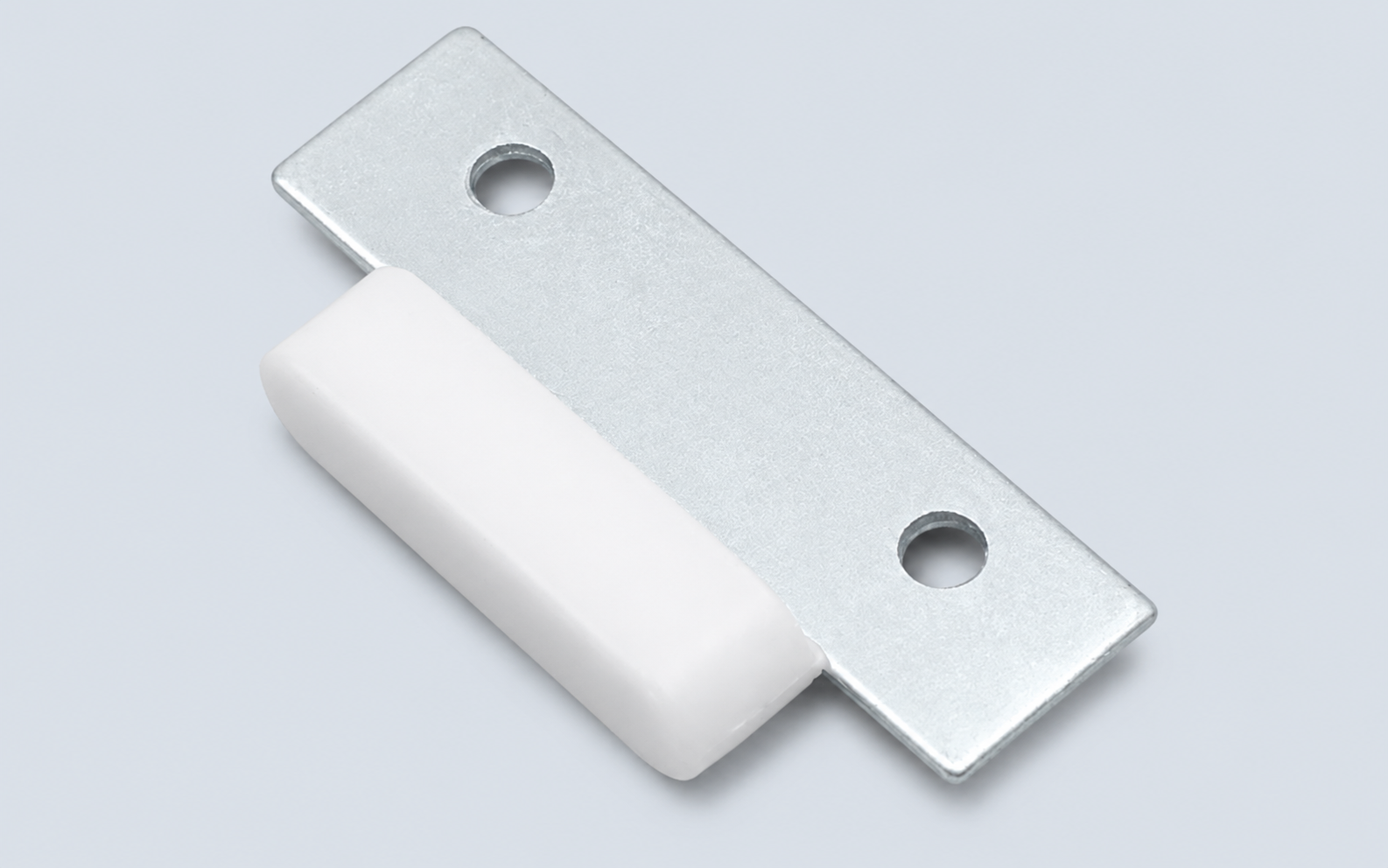

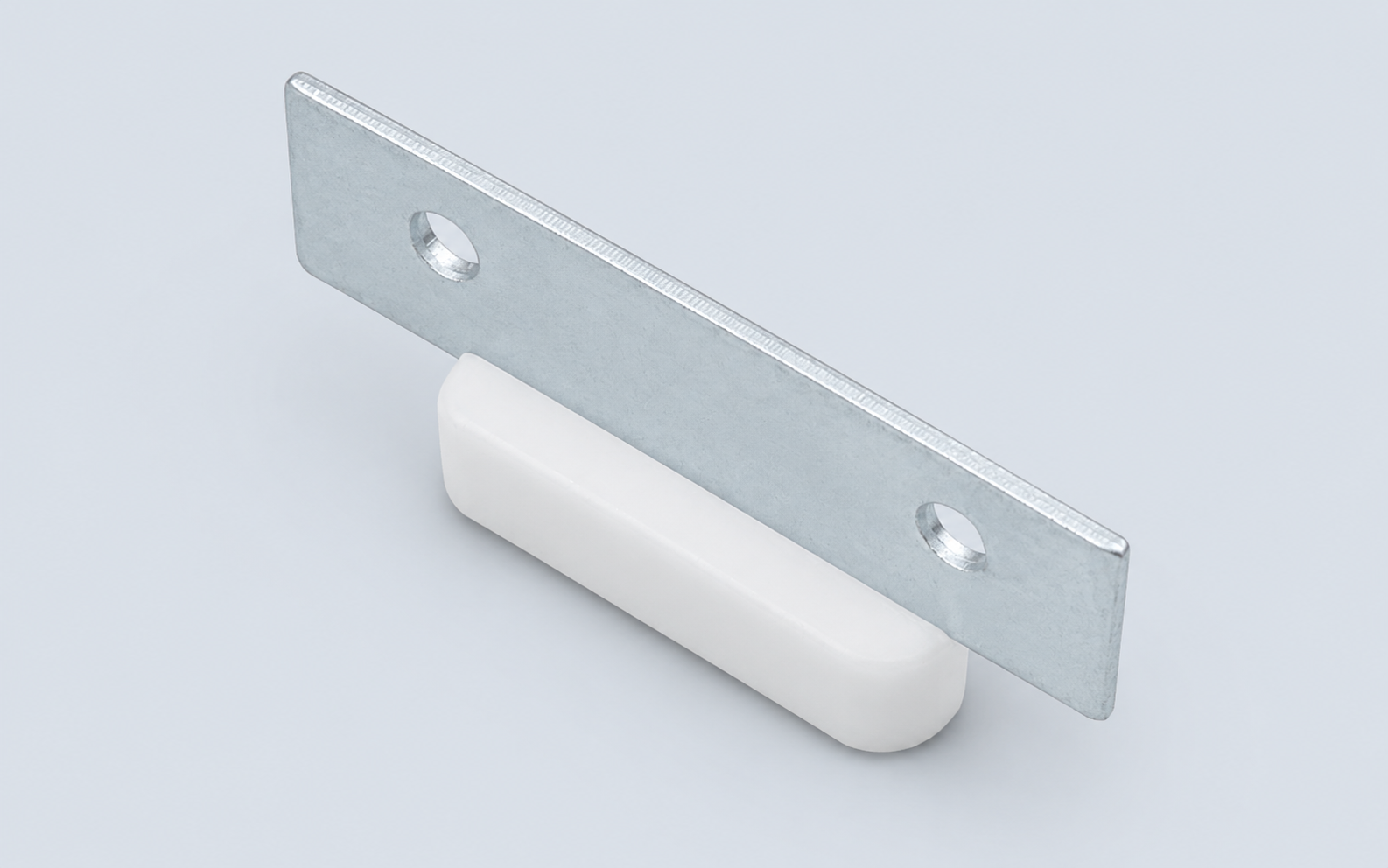

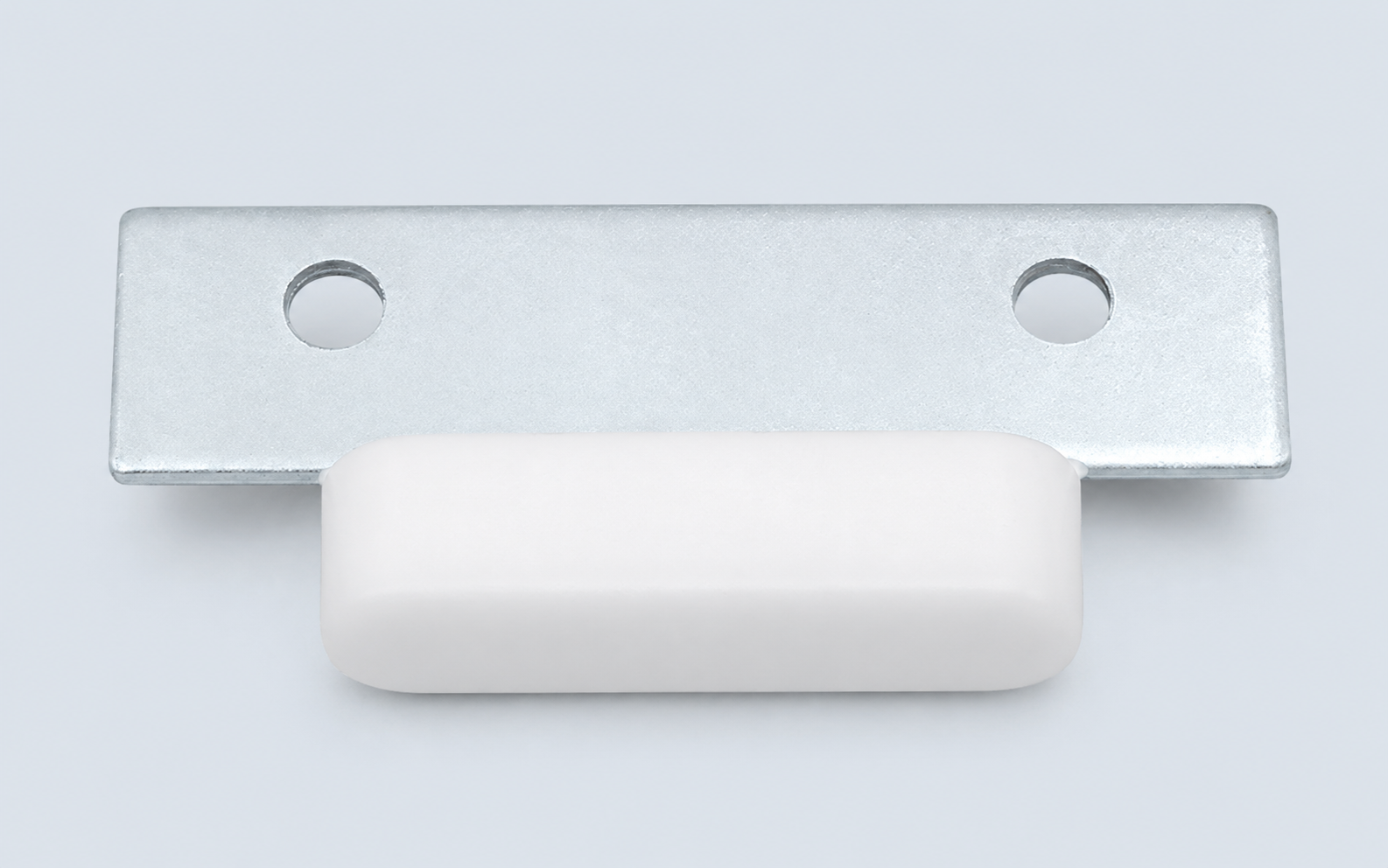

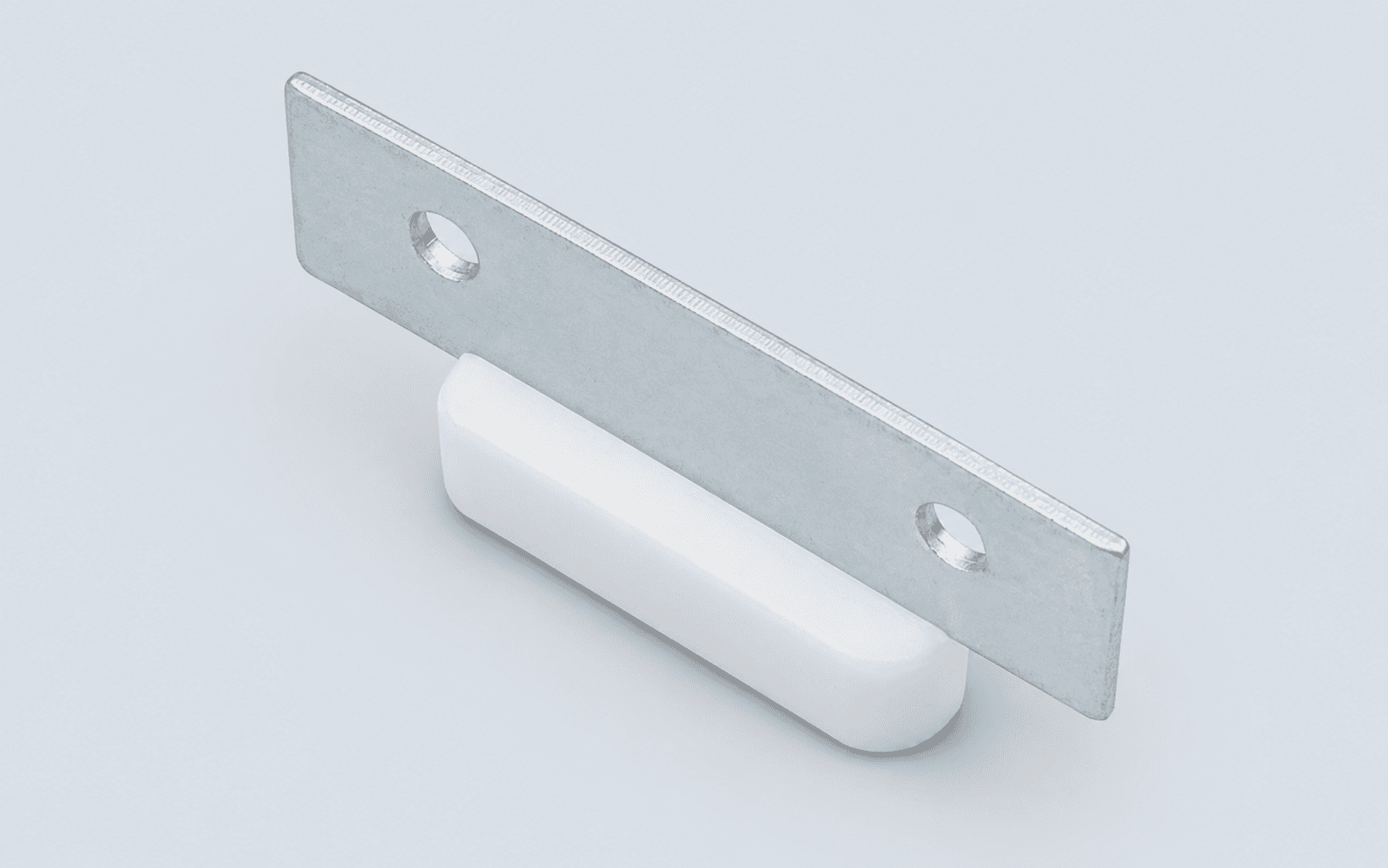

OTIS Elevator Door Slider

OTIS Elevator Door Slider is a mechanical guiding component used in compatible OTIS elevator car-door or landing-door systems.

The slider is normally installed at the lower edge of the door panel and moves inside the sill groove during opening and closing. It helps control lateral door movement, reduces door-panel shaking, and keeps the panel aligned with the door track.

This product may also be searched as:

• OTIS Door Slider

• OTIS Elevator Door Guide Shoe

• OTIS Landing Door Slider

• OTIS Car Door Slider

• OTIS Door Shoe

• Elevator Door Sill Slider

• Elevator Door Guide Block

• OTIS Elevator Door Spare Parts

Match the Slider With the Door Sill

A door slider should not be selected only by its colour or general appearance. Similar OTIS sliders may have different body widths, fixing structures, insert shapes, or sill-groove requirements.

Before ordering, buyers should confirm:

• complete old slider photo

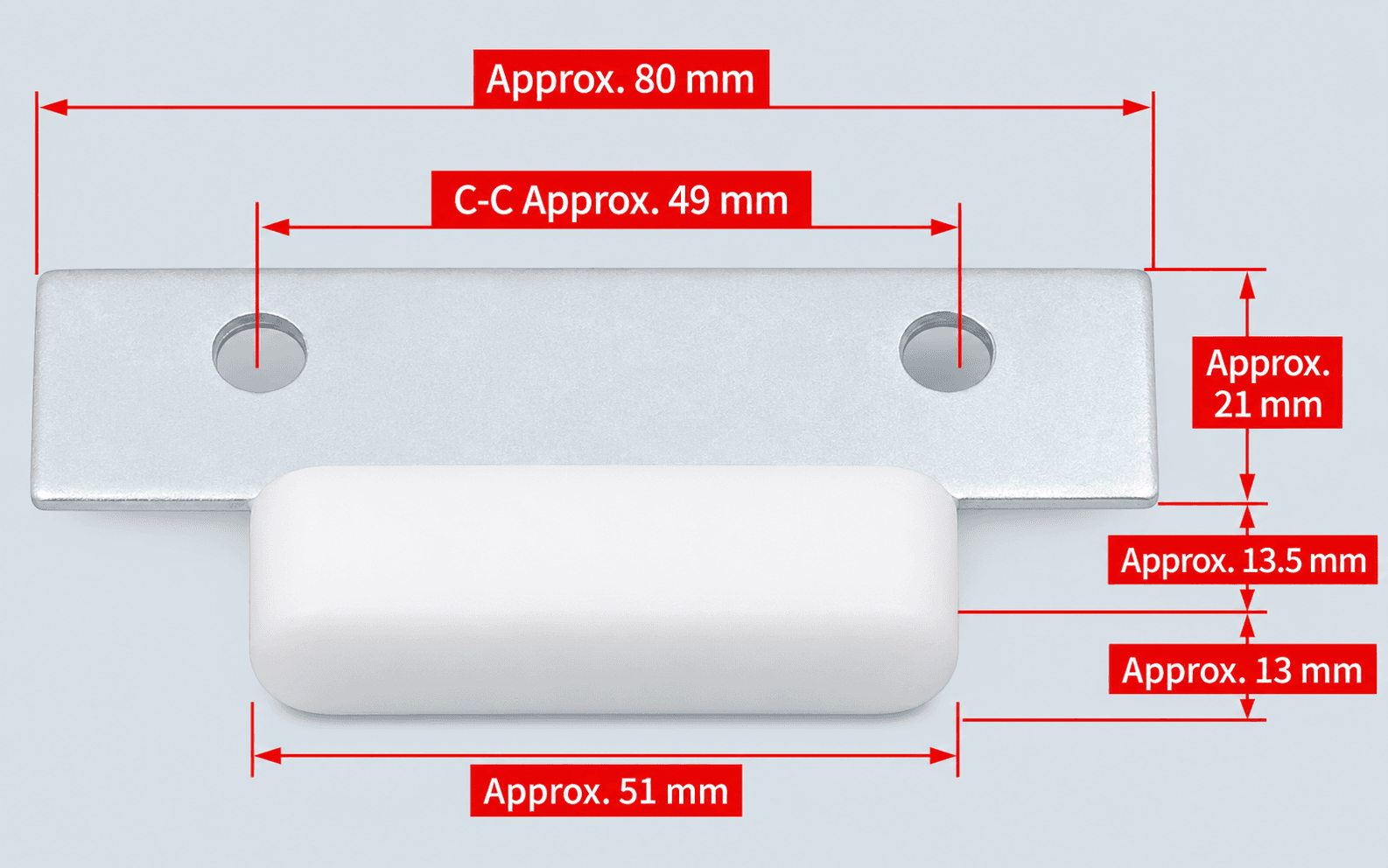

• overall length, width, and height

• guide portion thickness

• sill-groove width

• mounting-hole spacing

• screw or clip fixing method

• metal bracket or plastic-only structure

• car-door or landing-door application

• installed-position photo

• door-system model, if available

• quantity required per door

Some sliders are supplied as a complete assembly with a metal support bracket, while others are supplied only as the replaceable plastic guide block. Buyers should confirm whether they need the complete slider assembly or only the worn insert.

Common Signs of Wear

Replacement may be required when the slider becomes cracked, worn, loose, deformed, or excessively thin after long-term contact with the sill groove.

A damaged door slider may cause:

• door-panel shaking

• scraping noise near the sill

• uneven door gaps

• poor door alignment

• excessive lateral movement

• increased resistance during opening and closing

• wear inside the sill groove

If the door still moves poorly after replacing the slider, technicians should also inspect the sill groove, door hanger rollers, lower fixing bracket, door-panel alignment, door track, and operator adjustment.

Before installation, the sill groove should be cleaned thoroughly. Dust, stones, metal fragments, or hardened dirt inside the groove can damage the replacement slider and create additional door resistance.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, clear old-part photos and dimensional measurements are recommended before shipment.

FAQ

Is an OTIS Door Slider the same as a door hanger roller?

No. The hanger roller supports the upper part of the door panel and runs along the door track. The door slider guides the lower part of the panel inside the sill groove.

Can the plastic insert be replaced without changing the bracket?

In some versions, yes. If the metal bracket remains straight and undamaged, only the plastic slider insert may need replacement. The original structure should be checked first.

Are all OTIS Door Sliders interchangeable?

No. Their size, mounting-hole spacing, guide thickness, bracket structure, and sill-groove compatibility may differ.

What dimensions are most important?

Please confirm the overall slider dimensions, guide thickness, mounting-hole spacing, and the width of the sill groove.

What should I send before quotation?

Please send front, side, and installed photos, basic dimensions, the sill-groove width, fixing structure, and required quantity.
