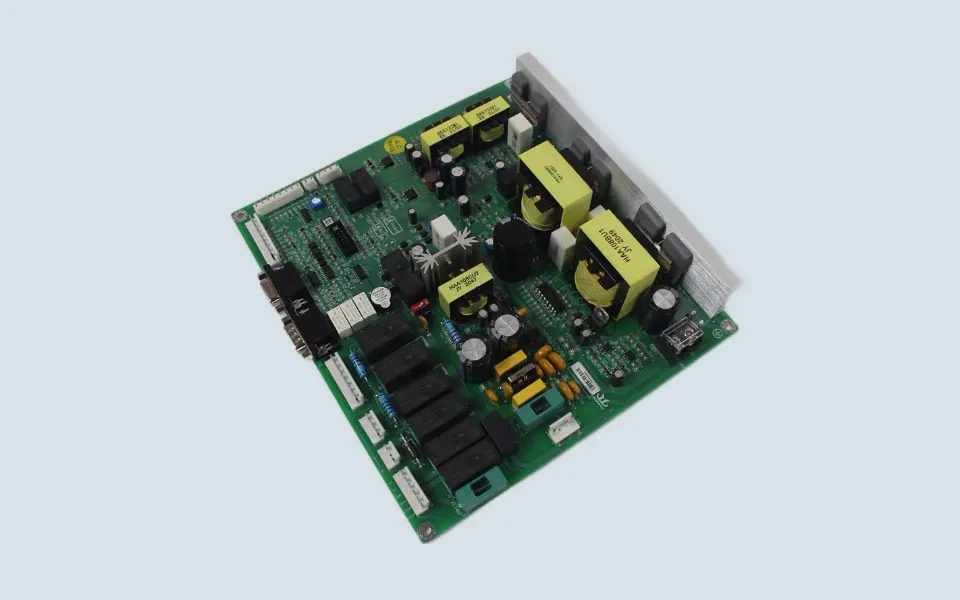

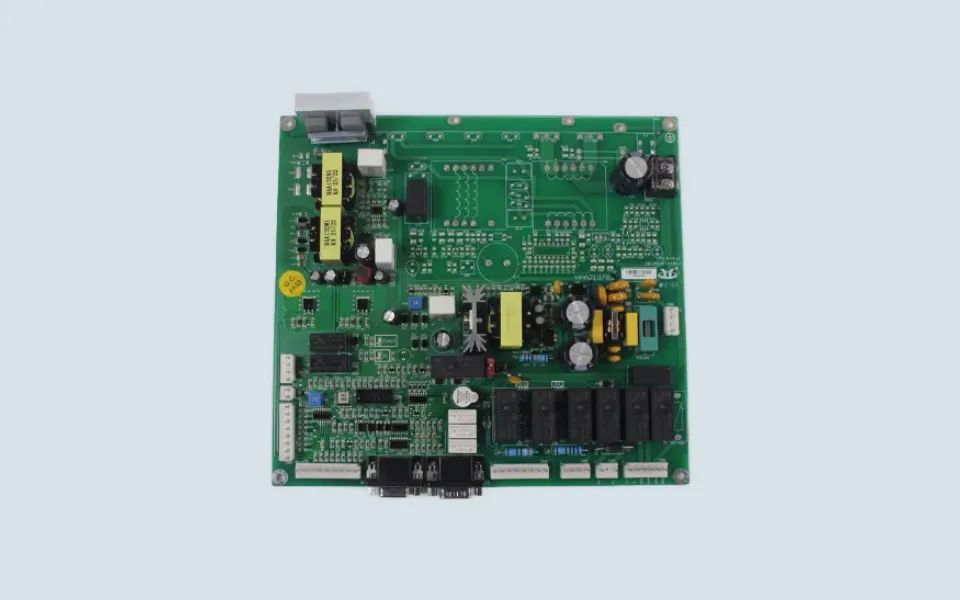

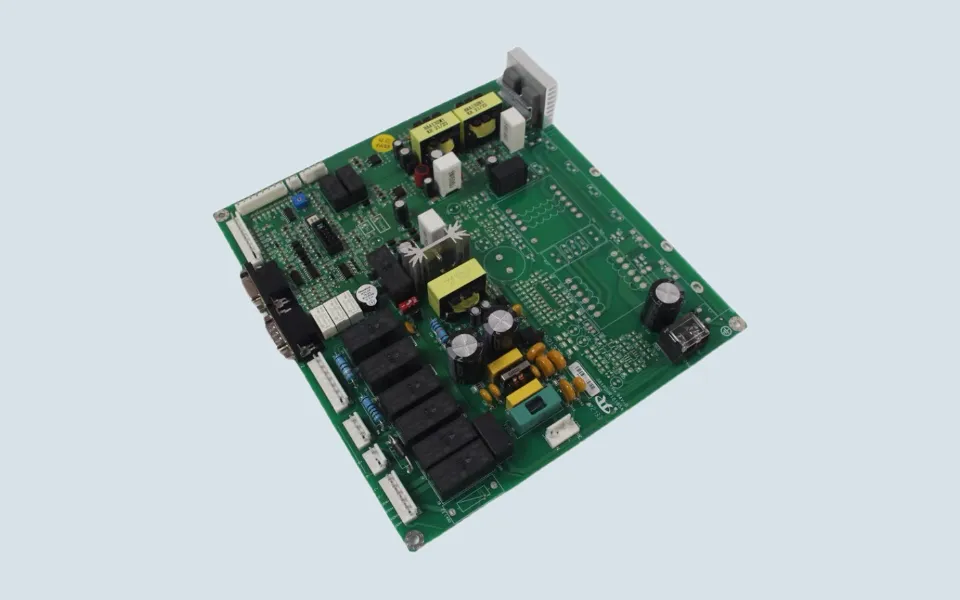

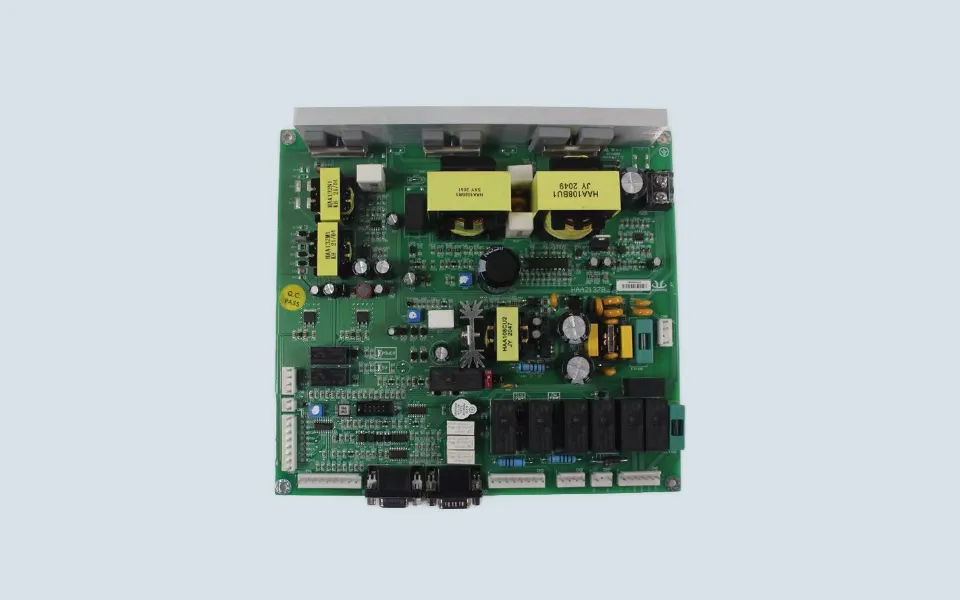

XIOLIFT Brake Board HAA2137B1/B2

XIOLIFT Brake Board HAA2137B1/B2 is used in elevator brake control circuit and maintenance replacement applications in XIOLIFT elevator systems.

This board is normally related to the elevator control cabinet brake circuit, brake release signal, brake power control, or related safety/control wiring depending on the original system design. In actual replacement, it should be confirmed by the old PCB marking, board version, connector layout, wiring plug direction, and installation position.

In elevator spare parts purchasing, this product may be searched as:

• XIOLIFT Brake Board

• HAA2137B1 Brake Board

• HAA2137B2 Brake Board

• XIOLIFT HAA2137B1

• XIOLIFT HAA2137B2

• Elevator Brake Control Board

• Elevator Brake PCB

• XIOLIFT Elevator PCB Board

The main references for this page are:

• HAA2137B1

• HAA2137B2

• HAA2137B1/B2

• XIOLIFT Brake Board HAA2137B1

• XIOLIFT Brake Board HAA2137B2

B1 and B2 should be checked together for search and inquiry matching, but they should not be treated as automatically interchangeable versions. Before ordering, buyers should confirm the exact marking on the old board.

Important checking points include:

• complete PCB marking

• whether the old board shows HAA2137B1 or HAA2137B2

• connector quantity and position

• brake circuit terminal area

• wiring plug direction

• board version or revision code

• installation position in the control cabinet

• front and back photos of the old board

• connector close-up photos

• elevator brake fault code or site symptom

This board may be checked when the elevator has brake release failure, brake control abnormality, brake signal fault, damaged connector, burned component, or control cabinet brake circuit problem. These faults may also come from brake coil, brake power supply, controller output, safety circuit, wiring harness, or loose terminals.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Brazil, Chile, Spain, and Italy, clear old-board photos are recommended before shipment, especially when ordering this brake board together with other XIOLIFT elevator control boards or electrical spare parts.
