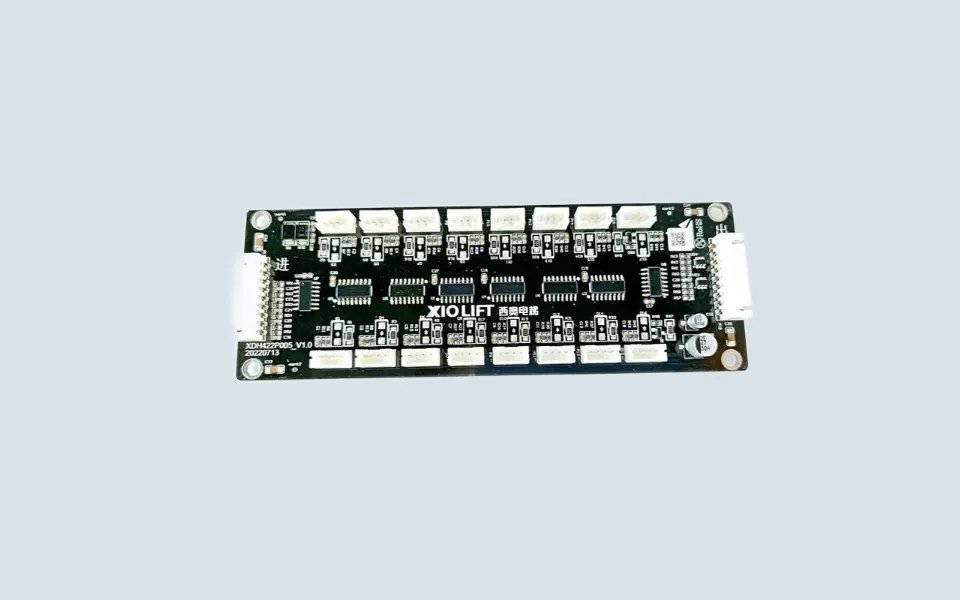

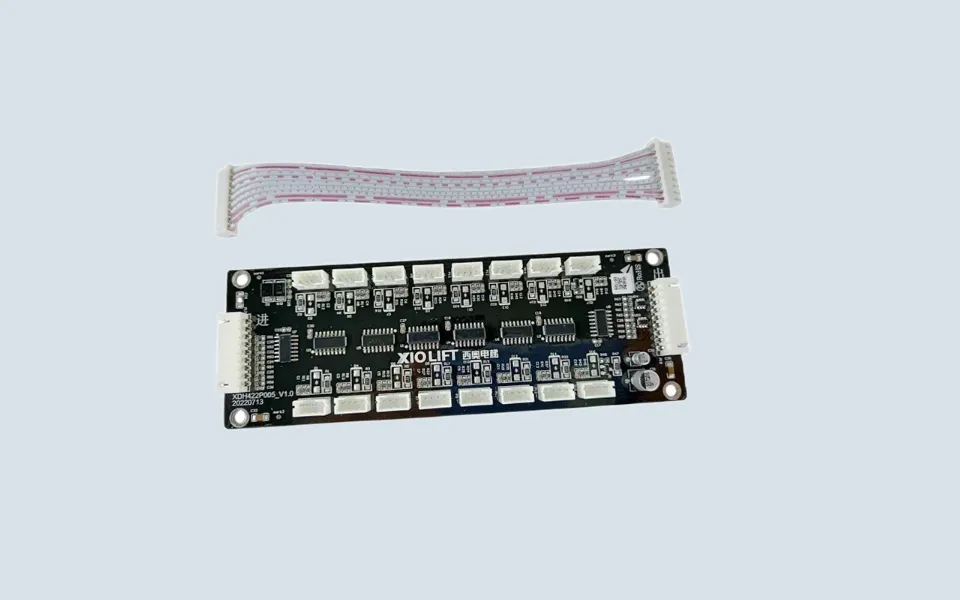

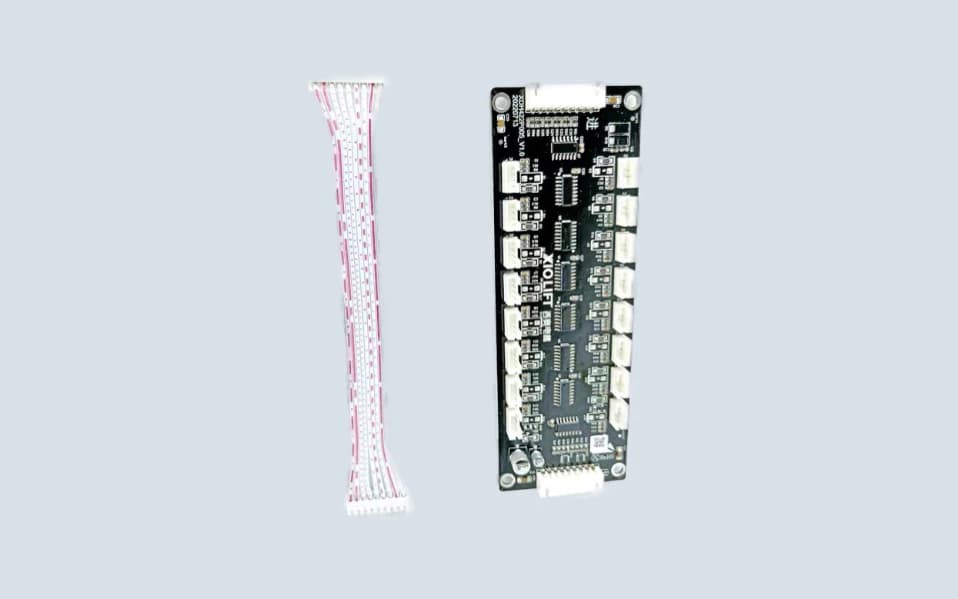

XIOLIFT Car Communication Board RS16 XDH422P005

XIOLIFT Car Communication Board RS16 XDH422P005 is used for elevator car-side communication and signal transfer in XIOLIFT elevator systems.

This board may be connected with the car operating panel, car-top unit, travelling cable interface, display circuit, button command circuit, or other car-side signal lines depending on the original elevator configuration. In real maintenance work, it is usually confirmed by the old PCB marking, XDH part code, connector layout, wiring plug direction, and installation position.

In elevator spare parts purchasing, this product may be searched as:

• XIOLIFT Car Communication Board RS16

• XIOLIFT RS16 Board

• XDH422P005 Communication Board

• XIOLIFT XDH422P005

• Elevator Car Communication PCB

• Elevator COP Communication Board

• Elevator Car Signal Interface Board

• XIOLIFT Elevator PCB Board

The main references for this page are:

• RS16

• XDH422P005

• XIOLIFT RS16

• XIOLIFT XDH422P005

• XIOLIFT Car Communication Board RS16 XDH422P005

RS16 and XDH422P005 should be checked together during inquiry. Some customers may search by the RS16 board marking, while others may use the XDH422P005 part code from a label, quotation, or spare parts record. These references help with search coverage, but they should not be treated as automatic replacement numbers for other XIOLIFT communication boards.

Before ordering, buyers should confirm:

• complete PCB marking on the old board

• whether RS16 appears on the PCB

• whether XDH422P005 appears on the label or record

• connector quantity and connector direction

• communication plug or terminal position

• board version or revision if available

• installation position near COP, car-top unit, or car-side interface area

• old board front and back photos

• connector close-up photos

• elevator fault code or site symptom

This board may be checked when the elevator has car communication faults, COP response problems, display or button signal abnormality, intermittent car-side signal loss, damaged connectors, or communication errors after previous repair.

These problems may also come from travelling cable damage, COP wiring, car-top unit wiring, controller communication port, power supply, grounding, or connector oxidation. The complete car communication path should be checked before confirming the RS16 board fault.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, clear old-board photos are recommended before shipment. If this RS16 XDH422P005 board is ordered together with COP boards, display boards, car-top boards, travelling cable parts, or other XIOLIFT elevator spare parts, model and interface confirmation should be completed before packing.

FAQ

Is RS16 the same as RS40-C?

Not necessarily. Both may be related to car-side communication, but the PCB marking, connector layout, system matching, and installation position may be different. Please confirm with old board photos.

Should I order by RS16 or XDH422P005?

Both references are useful. If possible, send photos showing the RS16 PCB marking and any XDH422P005 label or record for confirmation.

What photos are needed before quotation?

Please send the front side, back side, connector close-ups, PCB marking, installation position, and any fault code from the elevator site.
