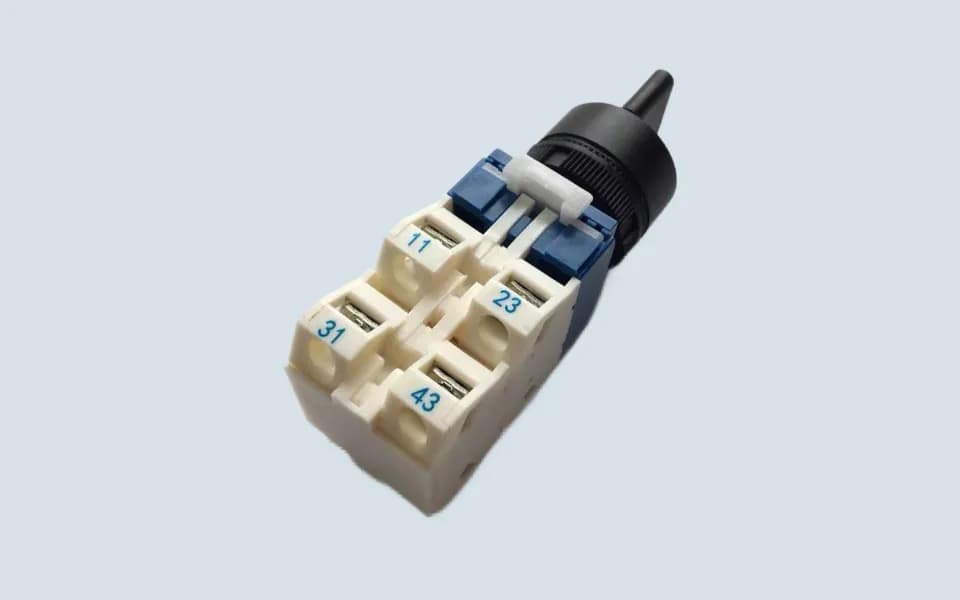

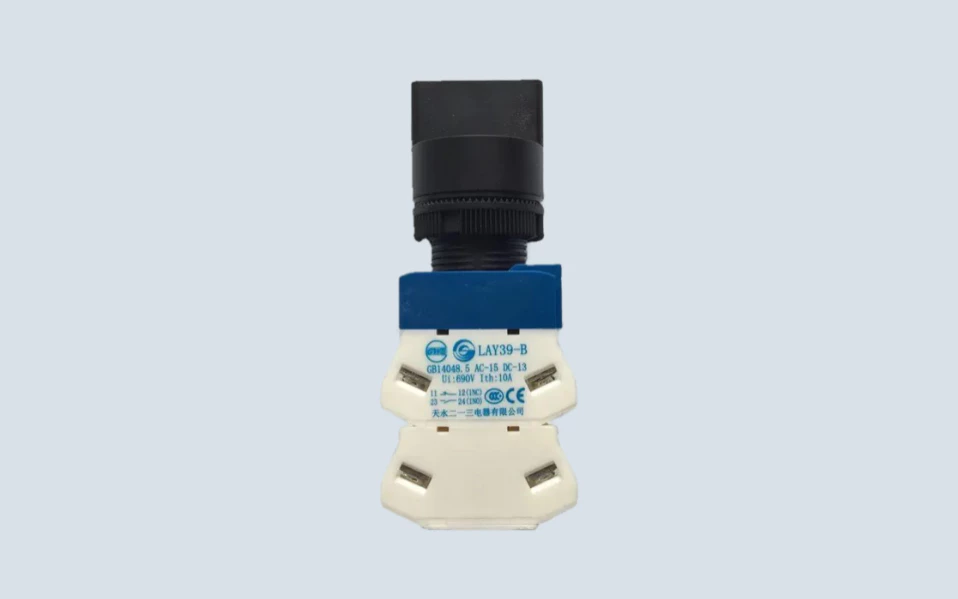

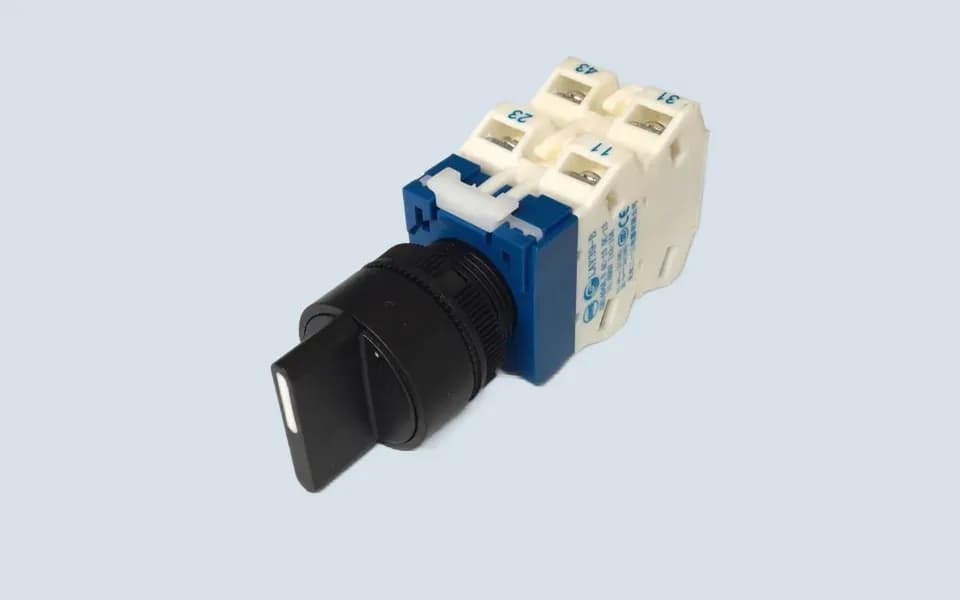

XIOLIFT Car-top Inspection Switch LAY39-B

XIOLIFT Car-top Inspection Switch LAY39-B is used in elevator car-top inspection operation, maintenance control, and inspection box switch replacement applications.

This switch is normally installed on the elevator car-top inspection box or related maintenance control panel. It may be used as part of the inspection operation circuit, service control interface, or manual maintenance operation area, depending on the original XIOLIFT elevator configuration.

In elevator spare parts purchasing, this product may be searched under several different names:

• XIOLIFT Car-top Inspection Switch
• XIOLIFT Elevator Inspection Switch
• LAY39-B Inspection Switch
• Elevator Car-top Switch
• Elevator Inspection Operation Switch
• Elevator Maintenance Switch
• Elevator Inspection Box Switch
• Car-top Control Switch
• Elevator Service Switch
• LAY39-B Elevator Switch

The main model references for this page are:

• LAY39-B
• LAY39B
• LAY39 B
• XIOLIFT LAY39-B
• Car-top Inspection Switch LAY39-B
• Elevator Inspection Switch LAY39-B
• XIOLIFT Car-top Inspection Switch LAY39-B

These references are useful for search coverage and customer inquiry matching. However, LAY39-B should not be selected only by model name. For actual replacement, the old switch appearance, contact type, button or selector style, mounting size, wiring terminal, and installation position must be checked before ordering.

Not a Complete Inspection Box

This product should be described as an inspection switch, not as a full car-top inspection box.

In an elevator car-top inspection area, the inspection box may include several parts, such as inspection switch, up button, down button, run button, emergency stop button, terminal wiring, and sometimes power supply or interface components. LAY39-B refers to the switch component used in that control area, so buyers should confirm which switch on the inspection box needs replacement.

If the old switch is damaged, loose, has poor contact, broken actuator, unstable signal, or damaged terminals, the elevator inspection operation may not respond correctly. However, the fault may also come from inspection box wiring, emergency stop circuit, controller input, terminal connection, or car-top harness damage.

What to Check on the Old Switch

For this product, the old switch sample is the most useful reference.

Before quotation, buyers should confirm:

• complete model marking on the old switch
• whether the switch shows LAY39-B
• button type or selector type
• switch color and head style
• contact block type if visible
• normally open or normally closed contact requirement
• number of contact blocks
• mounting hole size
• panel thickness and fixing nut condition
• wiring terminal position
• installation position on the car-top inspection box
• old switch front, side, back, and terminal photos
• elevator fault or replacement reason

For LAY39-B inspection switches, the front appearance alone is not enough. Two switches may look similar from the outside, but the contact block, terminal direction, or switching function may be different.

Typical Replacement Situations

Maintenance teams may request this XIOLIFT car-top inspection switch when the elevator has problems such as:

• inspection switch not working
• switch contact failure
• unstable inspection mode signal
• damaged switch head
• loose mounting nut
• broken terminal behind the switch
• wrong switch installed during previous repair
• inspection box refurbishment
• car-top maintenance panel damage
• old switch needing replacement after long service

These problems are usually checked during elevator maintenance or troubleshooting on the car top. If the inspection switch signal is abnormal, technicians should also check the related wiring, terminal block, emergency stop loop, inspection operation buttons, and controller input before confirming the switch fault.

Contact and Mounting Details Matter

Do not replace XIOLIFT Car-top Inspection Switch LAY39-B only by similar front shape.

Inspection switches may have different contact combinations, actuator styles, locking methods, mounting sizes, terminal layouts, and panel fixing structures. If the contact type or wiring definition is wrong, the elevator may not enter inspection mode correctly, or the maintenance operation signal may remain abnormal after replacement.

Before installation, technicians should compare the old and new switches carefully. The switch head, contact block, terminal numbers, mounting hole, fixing nut, and wiring direction should match the original part. If the old switch has multiple contact blocks, each wiring position should be recorded before removal.

For overseas buyers, sending clear photos of the old switch front side, back side, terminal area, contact block, and car-top inspection box position is the safest way to confirm the correct replacement before shipment.

Practical Procurement Notes

This product is often purchased together with other XIOLIFT elevator inspection and car-top maintenance parts, such as inspection boxes, emergency stop buttons, up/down buttons, terminal blocks, car-top boards, wiring harnesses, and power supply units.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, inquiries for this type of inspection switch often come from elevator maintenance sites where the old switch is already damaged or removed from the car-top inspection box.

When sending an inquiry, the buyer should provide the old switch model, clear front photo, terminal photo, contact block photo, installation position, and quantity required. If the LAY39-B switch will be shipped together with other XIOLIFT elevator spare parts, switch type and contact confirmation should be completed before packing to reduce the risk of wrong supply.
