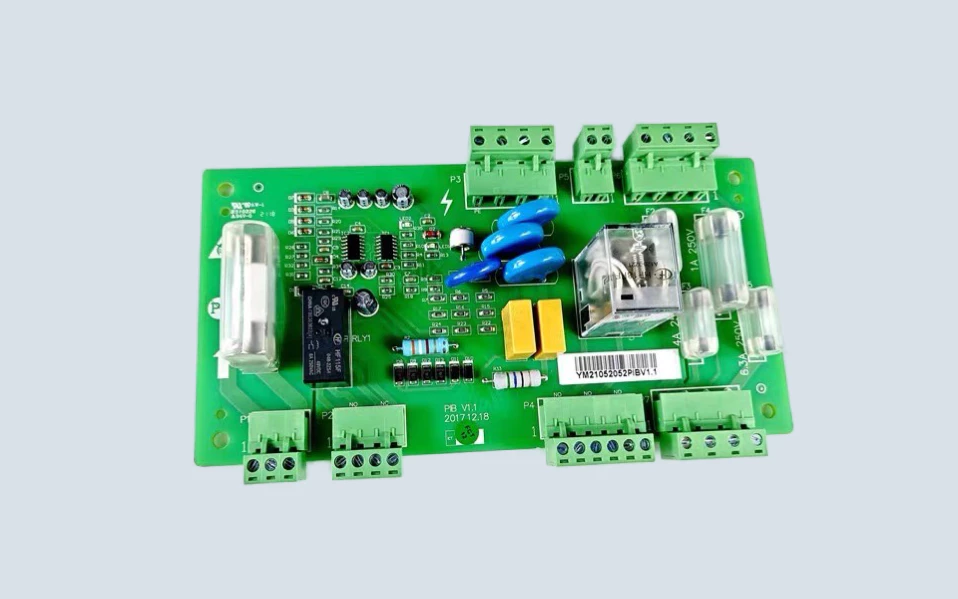

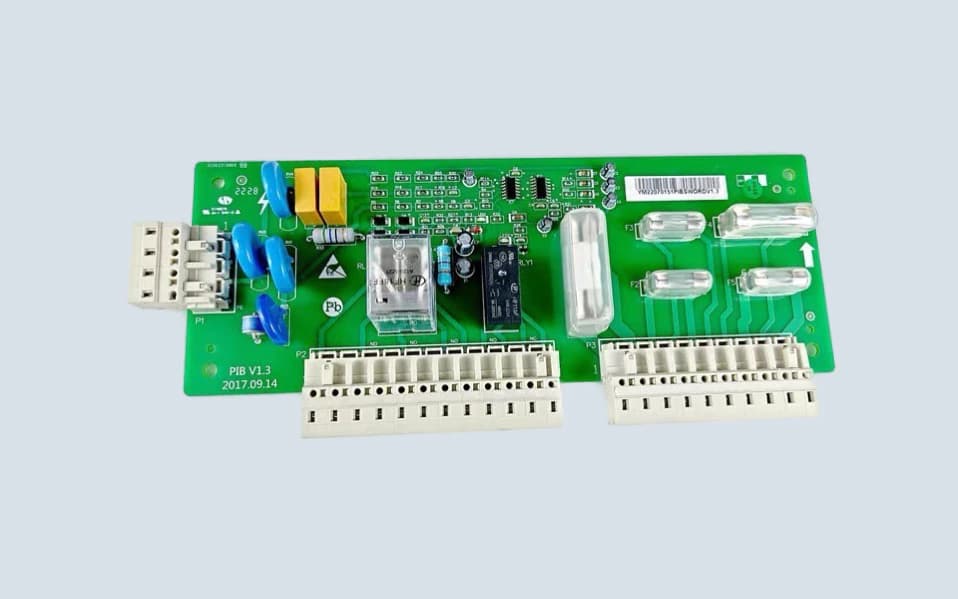

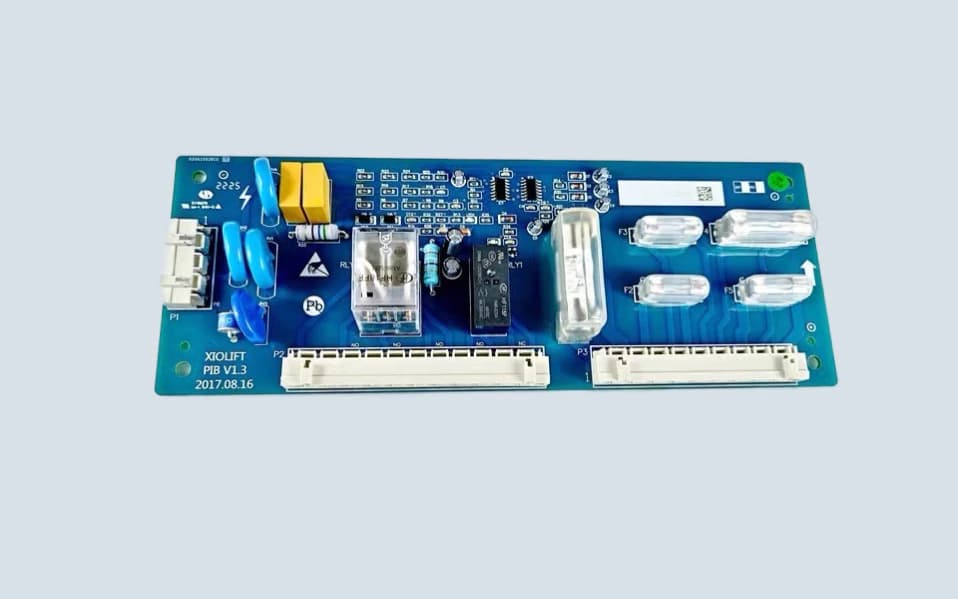

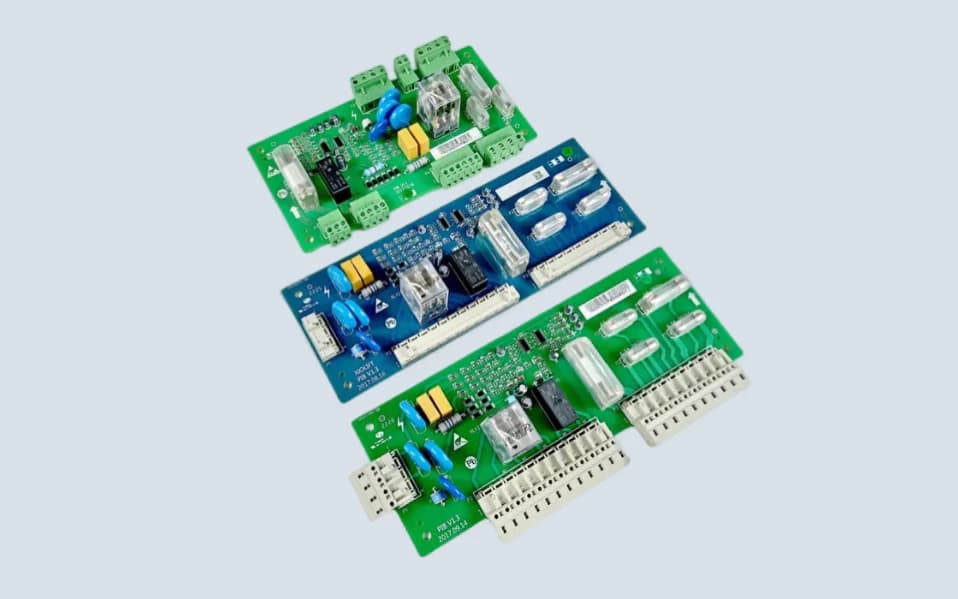

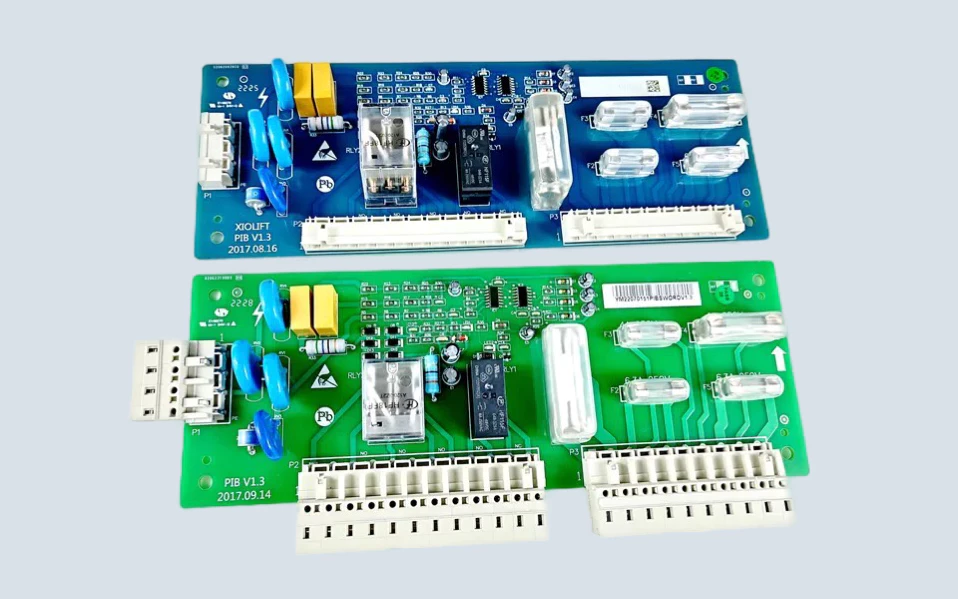

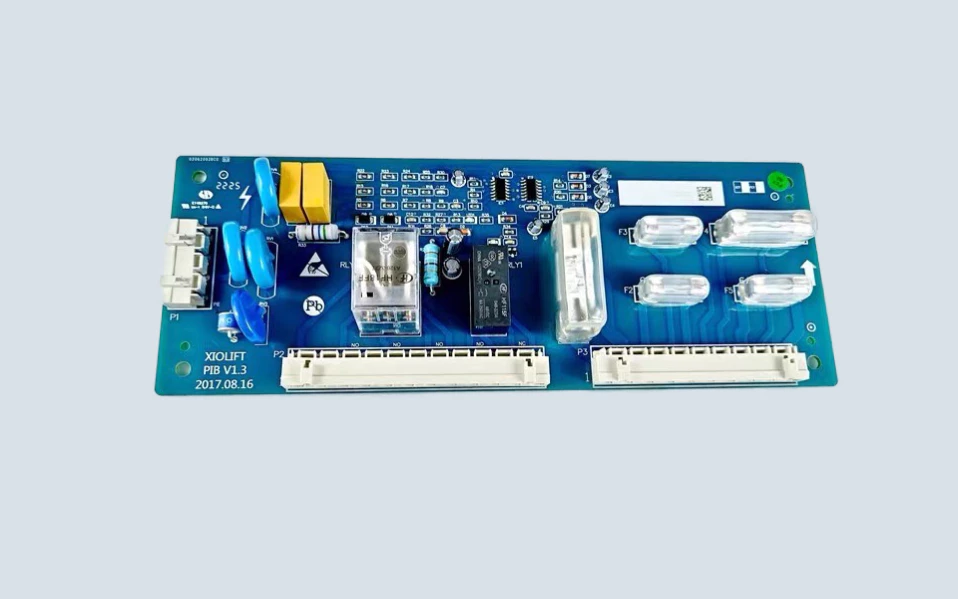

XIOLIFT PIB Safety Circuit Board V1.1 V1.3

XIOLIFT PIB Safety Circuit Board V1.1 / V1.3 is used in XIOLIFT elevator safety circuit and control cabinet signal applications.

This board is normally related to the elevator safety circuit area, where safety signals, protection inputs, and control cabinet circuit conditions may be monitored or transferred depending on the elevator system configuration.

In the elevator spare parts market, this product may also be searched as:

• XIOLIFT PIB Board
• XIOLIFT Elevator Safety Circuit Board
• XIOLIFT Safety Circuit PCB
• XIOLIFT Elevator PCB Board
• XIOLIFT Control Cabinet PCB
• Elevator Safety Circuit PCB
• PIB V1.1 Elevator Board
• PIB V1.3 Elevator Board

The main model references for this page are:

• PIB V1.1
• PIB V1.3

These two versions are useful for search coverage and customer inquiry matching. However, V1.1 and V1.3 should not be treated as automatically interchangeable without checking the old board label, connector layout, cabinet wiring, and elevator system version.

Safety Circuit Position in the Elevator Cabinet

The PIB board should not be described as a normal signal board or display board.

In an elevator control system, the safety circuit is directly related to safe operation. If the safety circuit signal is abnormal, the elevator may stop running, fail to start, or report safety-related faults.

The PIB board may work together with:

• safety circuit wiring
• door lock circuit
• emergency stop circuit
• inspection operation circuit
• control cabinet terminals
• safety relay or related input signal
• controller-side safety signal processing

Because of this, technicians usually check the complete safety circuit path before confirming whether the PIB board itself is faulty.

V1.1 and V1.3 Version Confirmation

For this product, the version number is very important.

A customer may simply ask for “XIOLIFT PIB board,” but the original elevator may use PIB V1.1, PIB V1.3, or another related version. A similar PCB appearance does not mean the connector definition, circuit design, or cabinet wiring is the same.

Before ordering, please confirm:

• Complete PIB V1.1 or PIB V1.3 marking on the old board
• Front and back photos of the PCB
• Connector quantity and connector direction
• Control cabinet installation position
• Terminal wiring photos if available
• Nearby board numbers inside the cabinet
• Existing elevator fault description from the maintenance technician
• Whether the old board has been repaired or modified before

If the old board label is unclear, a full photo of the control cabinet and close-up photos of the connector area can help confirm the correct version faster.

When Technicians Usually Check the PIB Board

Maintenance teams may inspect the XIOLIFT PIB safety circuit board when the elevator has problems such as:

• safety circuit fault
• elevator cannot start
• door lock signal abnormality
• emergency stop signal abnormality
• inspection operation signal issue
• intermittent cabinet safety fault
• visible PCB damage
• connector or terminal wiring problem

These symptoms are not always caused by the PIB board itself. The door lock, emergency switch, safety switch, wiring harness, cabinet power supply, controller input circuit, and terminal connections should also be checked before confirming the PCB fault.

Practical Replacement Notes

Do not select XIOLIFT PIB V1.1 / V1.3 only by appearance.

Elevator safety circuit boards may look similar, but the board version, connector layout, circuit function, and cabinet wiring requirement may be different. Before installation, technicians should compare the original board and replacement board carefully.

If the original PIB board was damaged by wiring short circuit, unstable cabinet power, moisture, connector oxidation, or an external safety circuit problem, replacing only the PCB may not fully solve the fault.

For overseas buyers, sending clear photos of the original PIB V1.1 or PIB V1.3 board, connector area, control cabinet position, and fault information is the safest way to reduce wrong supply before shipment.

FAQ

Can PIB V1.3 replace PIB V1.1 directly?
It should not be treated as a direct replacement without checking the old board and cabinet wiring. The version, connector layout, and safety circuit configuration should be confirmed first.

Is this board a main control board?
No. It is better described as a safety circuit PCB or PIB board, not a main controller motherboard.

What is the most important detail before ordering?
The old board version label is the most important. Please confirm whether the old board is PIB V1.1 or PIB V1.3 and provide clear photos before quotation.
