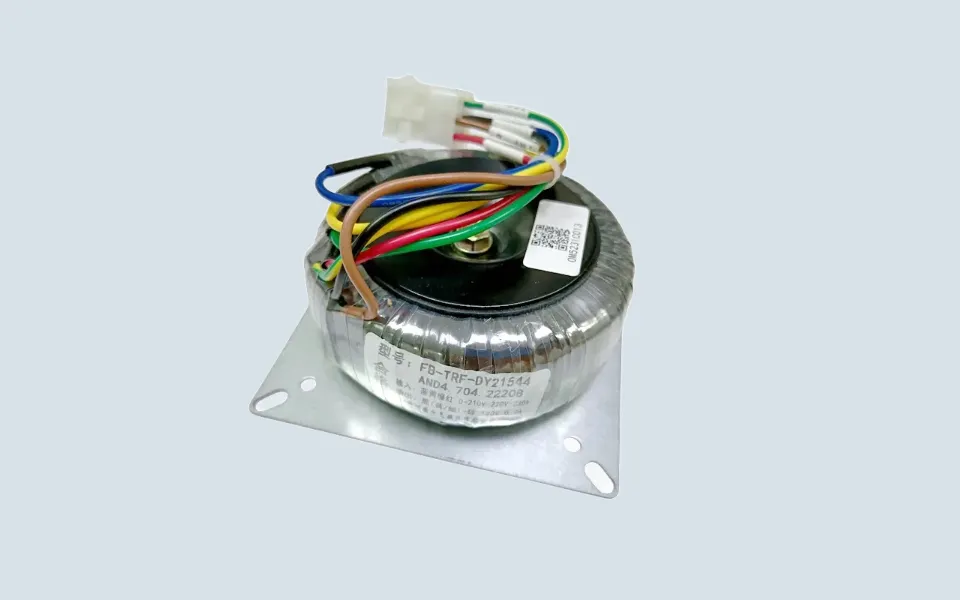

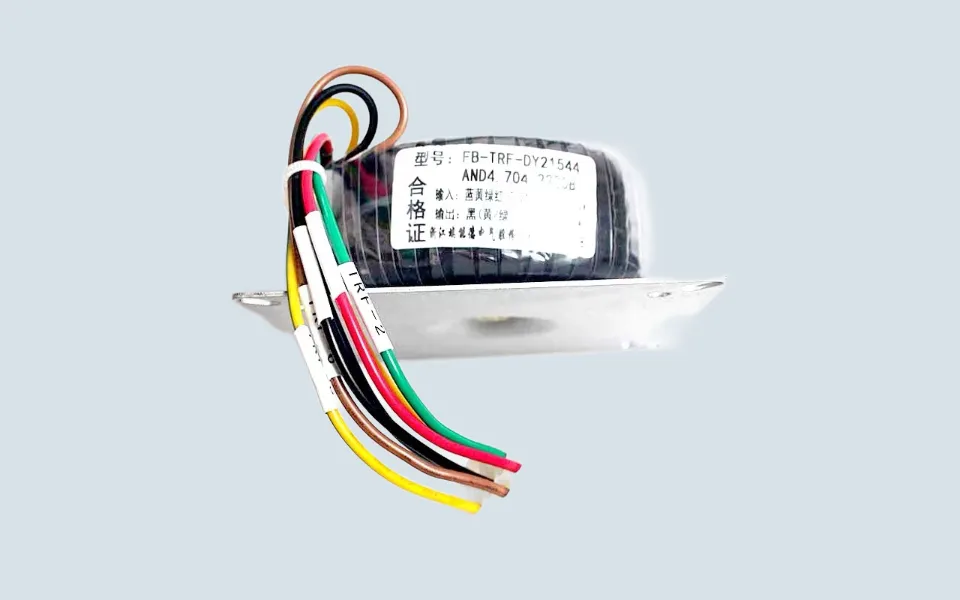

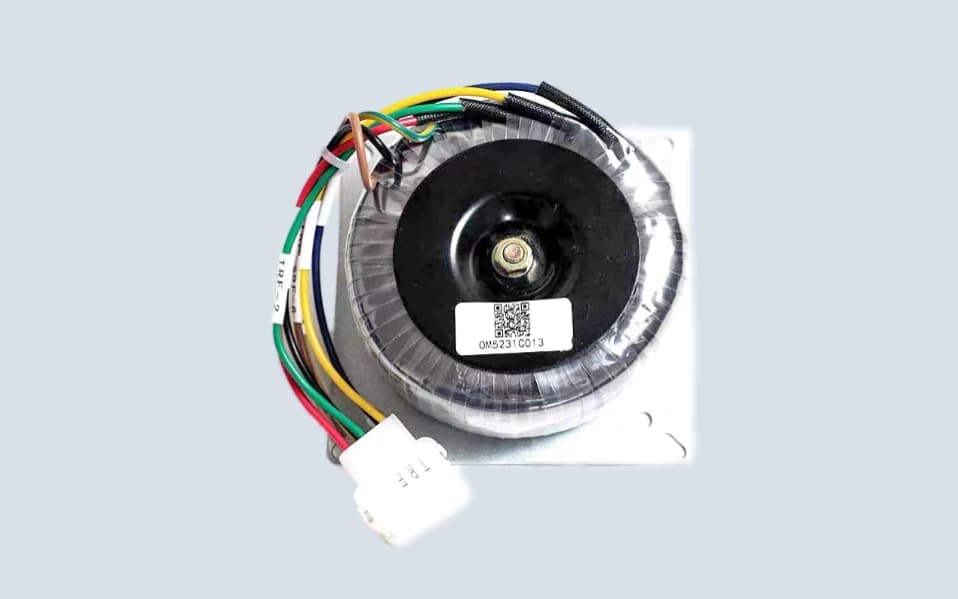

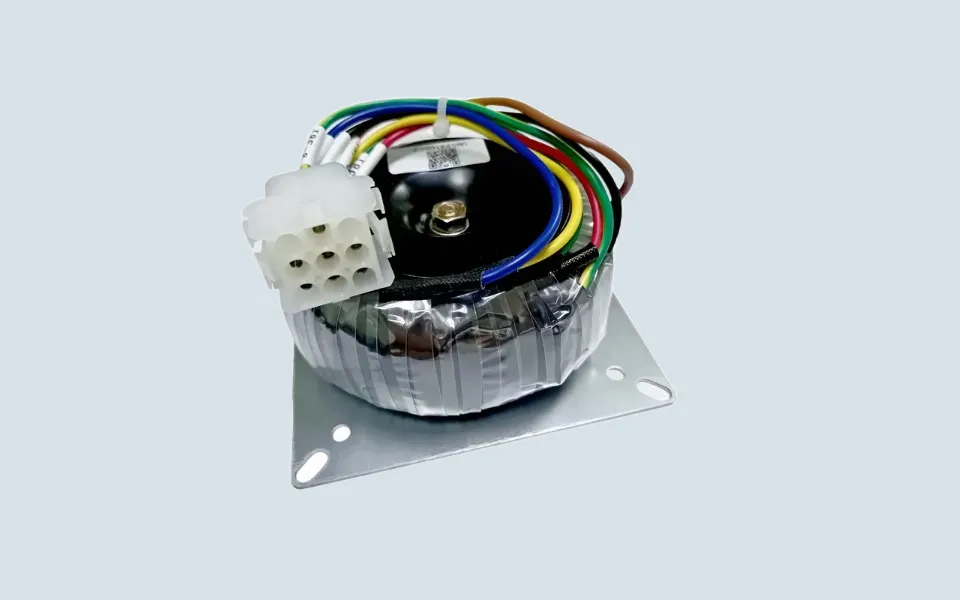

XIOLIFT Transformer FB-TRF-DY21544

XIOLIFT Transformer FB-TRF-DY21544 is used in elevator control cabinet power conversion and auxiliary circuit power supply applications.

This transformer may be installed inside the elevator control cabinet or electrical control section, depending on the original XIOLIFT elevator configuration. It is usually related to control circuit power, signal circuit power, relay circuit supply, or other low-voltage auxiliary electrical parts.

In elevator spare parts purchasing, this product may be searched as:

• XIOLIFT Transformer

• XIOLIFT Elevator Transformer

• FB-TRF-DY21544 Transformer

• Elevator Control Cabinet Transformer

• Elevator Power Transformer

• Elevator Auxiliary Transformer

• XIOLIFT Control Transformer

The main references for this page are:

• FB-TRF-DY21544

• FB TRF DY21544

• DY21544

• XIOLIFT FB-TRF-DY21544

• XIOLIFT Transformer FB-TRF-DY21544

For this product, the nameplate is the most important reference. A transformer with a similar size may still have different input voltage, output voltage, rated capacity, terminal arrangement, or mounting structure.

Before ordering, buyers should confirm:

• complete model number on the old transformer label

• input voltage marking

• output voltage marking

• rated capacity if shown

• terminal layout and wiring direction

• number of input and output terminals

• mounting hole position

• installation position inside the control cabinet

• old transformer label, terminal, side, and cabinet photos

• elevator fault or replacement reason

This transformer may be checked when the elevator has control power loss, unstable low-voltage circuit, relay power abnormality, burned transformer smell, damaged terminals, or no output voltage. These problems may also come from short circuit on the load side, loose wiring, damaged control boards, incorrect external load, or cabinet power supply faults.

Do not replace XIOLIFT Transformer FB-TRF-DY21544 only by appearance. Before installation, technicians should compare the old and new transformer label, voltage rating, terminal positions, and mounting holes carefully.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, clear old-label photos and terminal wiring photos are recommended before shipment, especially when this transformer is ordered together with XIOLIFT control boards, power supply boards, relays, or other elevator electrical spare parts.

FAQ

Can I order this transformer only by FB-TRF-DY21544?

The model number is important, but the input voltage, output voltage, terminal layout, and mounting position should also be confirmed before ordering.

What photos are needed?

Please send the old transformer label, terminal wiring, side view, mounting position, and control cabinet installation photo.

Is it the same as a switching power supply?

No. This is described as a transformer, not a switching power supply. The electrical rating and wiring should be checked according to the old unit.
