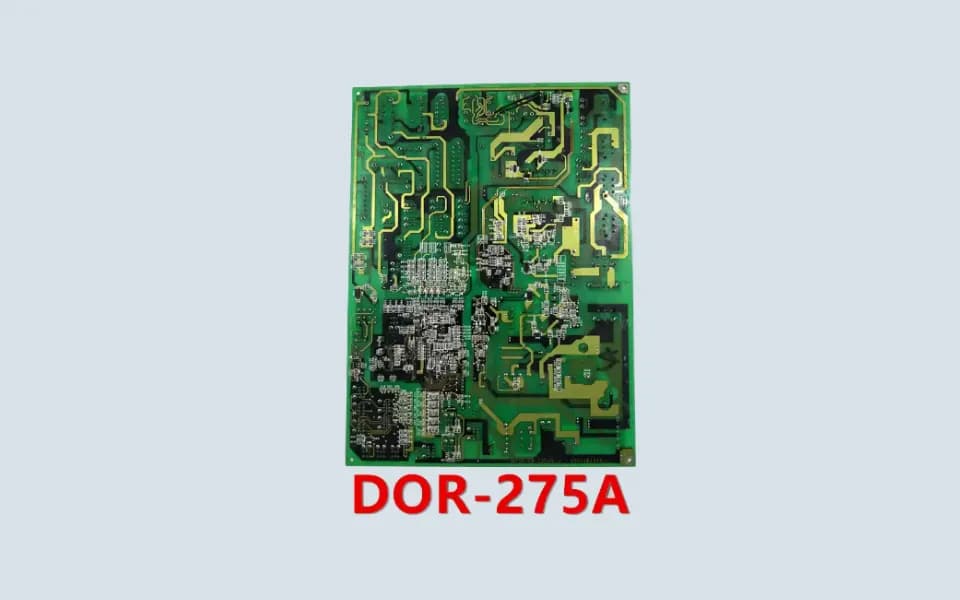

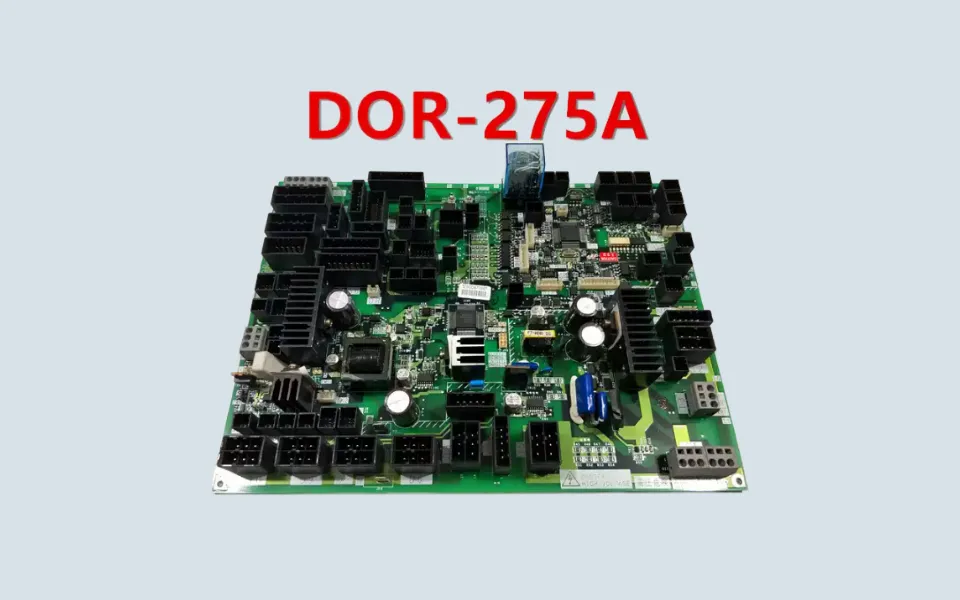

DOR-275A Mitsubishi Machine-Room-Less Door Controller Board

DOR-275A Mitsubishi Machine-Room-Less Door Controller Board is used in Mitsubishi elevator door machine and door operator control systems.

In the elevator spare parts market, this board is usually described as a Mitsubishi elevator door machine board, door operator PCB, MRL door controller board, or car-top door control board. It is commonly associated with Mitsubishi machine-roomless elevator door systems, where the door controller works together with the door motor, encoder, belt, door linkage, and door protection circuit.

Unlike a simple signal board, DOR-275A is part of the door operation system. It may affect door opening response, closing control, speed adjustment, and door movement stability.

DOR-275 Series Model References

This page can naturally cover the following model references:

• DOR-275A
• DOR-275D
• Mitsubishi Elevator Door Machine Board DOR-275A
• Mitsubishi Elevator Door Operator PCB DOR-275A
• Mitsubishi MRL Door Controller Board
• Mitsubishi Car-Top Door Control Board

Public supplier pages commonly list DOR-275A and DOR-275D together as Mitsubishi elevator door machine board models. Some descriptions also call this board the main control board of the door system for Mitsubishi machine-roomless elevators.

These model references are useful for search and quotation confirmation, but DOR-275A and DOR-275D should still be checked against the original board label before replacement.

What Makes This Board Different

DOR-275A is mainly related to door machine operation, not general elevator control.

When a door system becomes unstable, technicians may check this board together with:

• Door motor
• Door operator belt
• Encoder feedback
• Door pulley
• Hanger rollers
• Door protection sensor
• Door controller wiring
• Car-top connection area

A door fault may look like a board problem, but mechanical resistance, belt tension, encoder signal loss, or light curtain signal issues can create similar symptoms.

Site Symptoms That May Lead to Inspection

Maintenance teams may inspect the DOR-275A board when the elevator door shows:

• Door opening failure
• Door closing timeout
• Door movement hesitation
• Door motor not responding
• Repeated door reopening
• Unstable door speed
• Door operator fault indication
• Abnormal response after power-on

These symptoms should be checked as part of the complete door operator system. Replacing the board alone may not solve the problem if the original issue comes from the motor, wiring, encoder, or mechanical door resistance.

Confirmation Before Supply

For accurate supply, please provide:

• Clear photo of the DOR-275A label
• Front and back photos of the PCB
• Connector area photo
• Door operator installation photo
• Door motor label if available
• Whether DOR-275D appears on the old unit or system document
• Existing door fault description

If the old board label is unclear, photos of the whole door operator box and nearby wiring are usually more useful than only providing the elevator model.

Replacement Note

Do not choose DOR-275A only by appearance.

Before installation, technicians should compare the original PCB number, connector direction, board layout, and door operator configuration. If the old board was damaged by unstable power, motor overload, encoder wiring fault, or external short circuit, the surrounding door system should be checked before replacing the PCB.

For overseas buyers, matching the exact DOR model first and confirming the door operator structure second is the safest way to reduce wrong supply.
