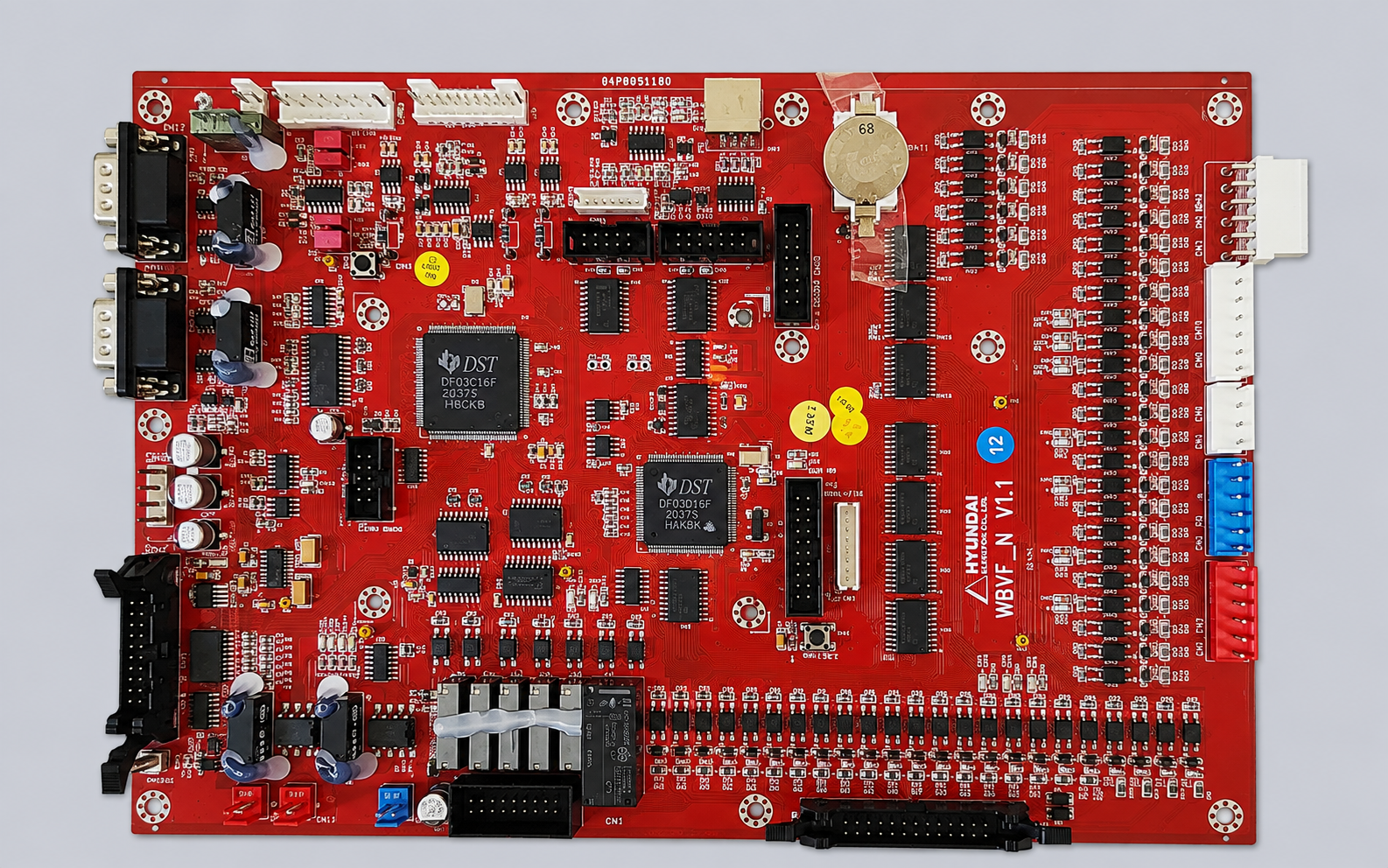

Hyundai WB100GT-N WBVF_N / WBVF_NT Inverter Main Board

The Hyundai WB100GT-N WBVF_N / WBVF_NT Inverter Main Board is the main control PCB used in the WB100GT-N elevator drive system. It manages the inverter control section and works together with the gate board, encoder board, sensing board and power supply modules.

The Control Board Behind the WB100GT-N Drive

WBVF_N and WBVF_NT belong to the inverter main board family rather than the power stack or gate drive section.

These boards handle important drive control and interface functions, including communication, motor control signals, encoder-related connections and inverter monitoring.

Common markings may include:

• WBVF_N

• WBVF_N V1.0

• WBVF_NT

• WBVF_NT V1.0

• WBVF_NT V1.1

• WB100GT-N application

Board Version Comes Before Appearance

WBVF_N and WBVF_NT boards can look similar, but the PCB version and connector configuration should be checked before replacement.

For accurate selection, please provide:

• Complete WBVF_N or WBVF_NT marking

• PCB revision

• Front and rear board photos

• Connector arrangement

• WB100GT-N inverter nameplate

• Rated inverter power

• Required quantity

FAQ

What is WBVF_N / WBVF_NT used for?

It is used as an inverter main control board in Hyundai WB100GT-N elevator drive applications.

Is WBVF_NT V1.0 used with WB100GT-N?

Yes. WBVF_NT V1.0 is documented in the spare-parts market as a WB100GT-N frequency converter mainboard.

Can WBVF_N and WBVF_NT be interchanged directly?

Not automatically. The board version, connectors and complete inverter configuration should be checked first.

For Hyundai WB100GT-N WBVF_N / WBVF_NT requirements, send us the original board photos and inverter nameplate for replacement checking before quotation.
