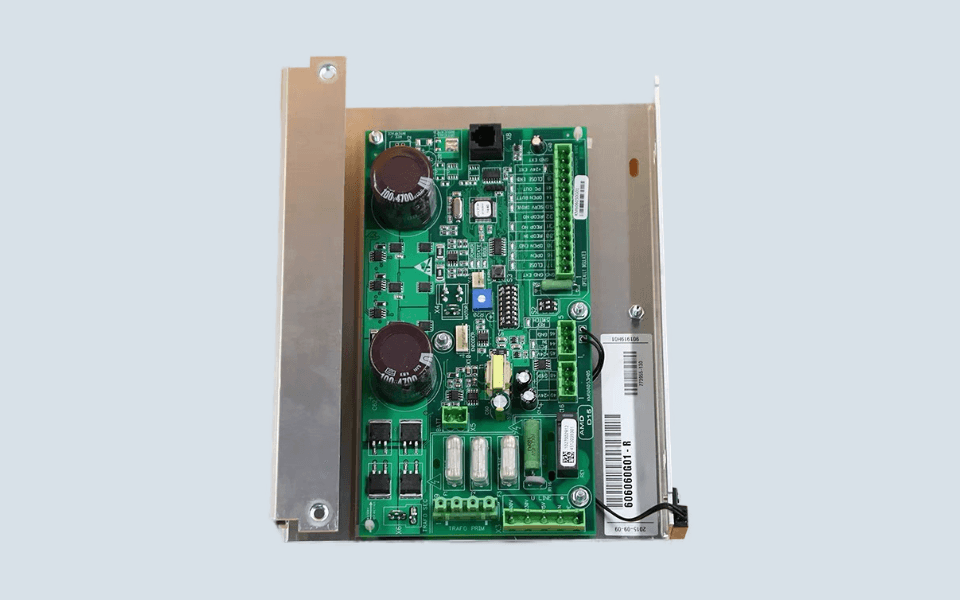

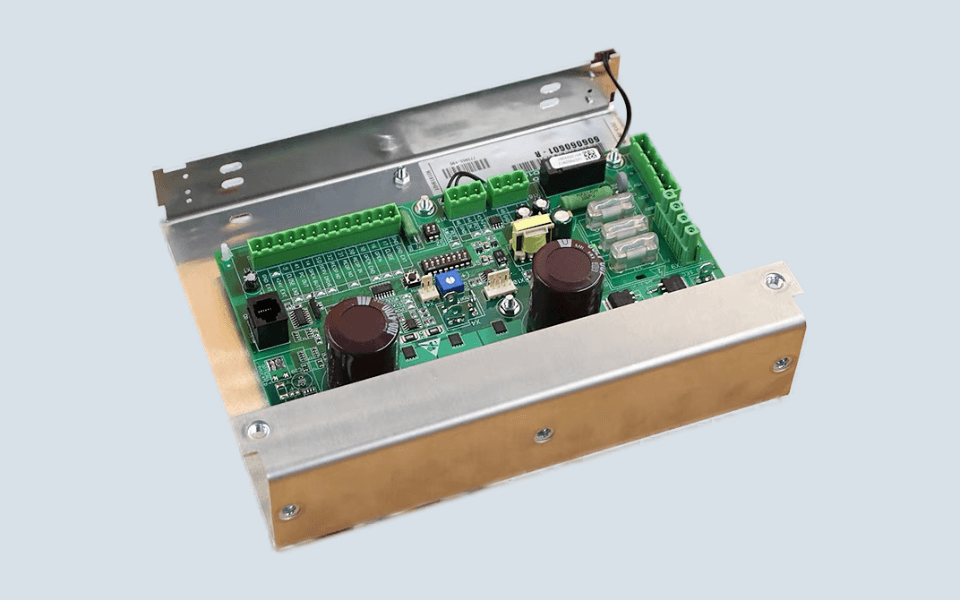

KONE KM6060 Series Door Drive Controller Board KM606050G01

KONE KM6060 Series Door Drive Controller Board KM606050G01 is used in KONE elevator automatic door operator control systems.

This product is part of the electrical control side of the elevator door machine. It should not be confused with a KONE door motor. The motor drives the physical door movement, while KM606050G01 is related to door command processing, motor drive response, opening and closing control, and door operator signal management.

In the elevator spare parts market, this product may also be searched as:

• KONE Door Controller Board KM606050G01
• KONE Door Board KM606050G01
• KONE Door Drive Controller PCB
• KONE Door Operator Drive Controller
• KONE AMD Door Drive Board
• KONE Door Motor Controller Board
• KONE Elevator Door Machine Board
• KONE Elevator Door Control PCB

The main model reference for this page is:

• KM606050G01

Related market references may include:

• KM606060G01
• KM606060G01-R
• KM606040G01
• KM606030G01
• KM606053H05

These references are useful for search coverage and quotation confirmation. They should not be treated as automatic replacement models. The old controller label, connector layout, door operator type, and site wiring should always be checked first.

A Door Drive Board, Not a Motor Assembly

KM606050G01 belongs to the door operator control area.

It works with the door motor, door belt, pulley, hanger rollers, light curtain, door lock signal, door vane, and controller wiring. If this board does not match the original door operator system, the elevator door may not open or close correctly even when the motor itself is still in good condition.

This is why the page should not be written like a normal door motor page. The correct positioning is door drive controller board or door operator drive PCB.

Where This Board Is Usually Checked

Maintenance teams may inspect KM606050G01 when the KONE elevator door system shows problems such as:

• door motor not responding
• door opening failure
• door closing failure
• unstable door movement
• repeated door reopening
• door stops before fully closed
• door operator fault indication
• damaged PCB or connector area

These symptoms may also come from other parts of the door system. Before confirming the board fault, technicians usually check the door motor, encoder or feedback signal, light curtain, door lock circuit, belt tension, rollers, wiring terminals, and power supply condition.

Important Details Before Ordering

For this product, the old controller photos are more useful than only the elevator model.

Before ordering KONE Door Controller Board KM606050G01, please confirm:

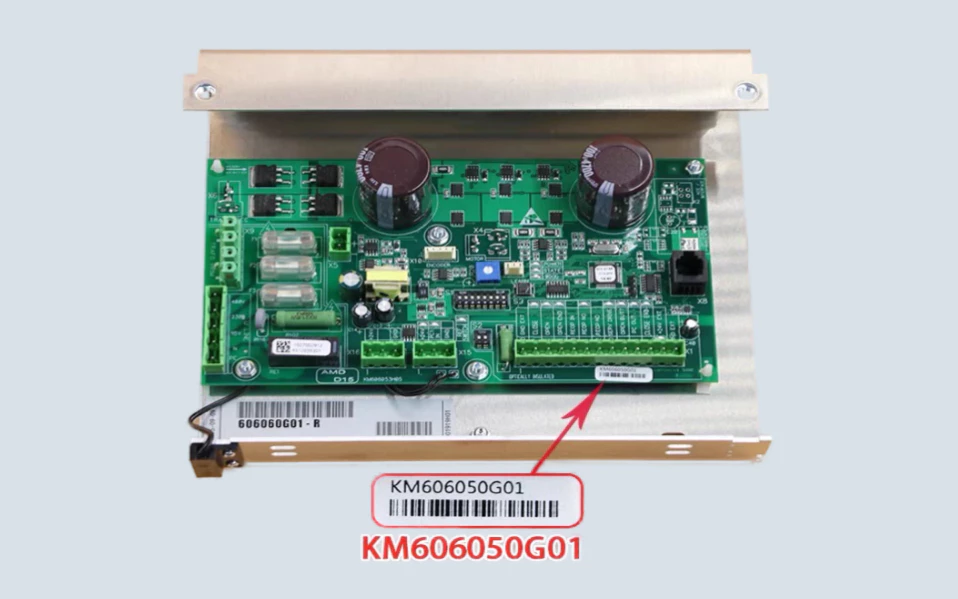

• complete KM606050G01 marking on the old board
• whether KM606060G01 or KM606060G01-R appears on the old unit or document
• whether the door system is AMD or another KONE door operator type
• connector quantity and wiring direction
• complete controller board photo
• door operator installation photo
• door motor label if available
• existing door fault description from the technician
• any visible fault code or display indication

If the old controller is installed inside a door machine box, please provide photos of both the internal board and the complete door operator assembly. This helps confirm whether the required item is KM606050G01 or another KM6060 series KONE door controller.

Different From KM606040G01 and KM602810G02

KM606050G01 should have its own product page.

KM606040G01 is commonly positioned as a KONE AMD electronic box or door operator board. KM602810G02 is usually described as an electronic box with board 602800G02. KM603800G01 is more suitable for AMD Drive 1.5 door machine board pages.

KM606050G01 is better written as a KM6060 series door drive controller board. This helps avoid repeated content across KONE door controller pages and makes the product easier for buyers to identify.

Practical Replacement Notes

Do not select KM606050G01 only by appearance.

KONE door controller boards may look similar, but the internal board version, connector definition, door system compatibility, and control logic may be different. After replacement, technicians may need to check door learning, opening and closing response, door protection input, motor wiring, and controller signal condition.

If the old board was damaged by unstable power, wiring short circuit, motor overload, moisture, connector oxidation, or an external door system fault, replacing only the controller board may not fully solve the problem.

For overseas buyers, sending clear photos of the original KM606050G01 board, connector area, door machine box, and complete door operator system is the safest way to reduce wrong supply before shipment.
