Mitsubishi Elevator Door Operator Belt 1520 AV10x1325La

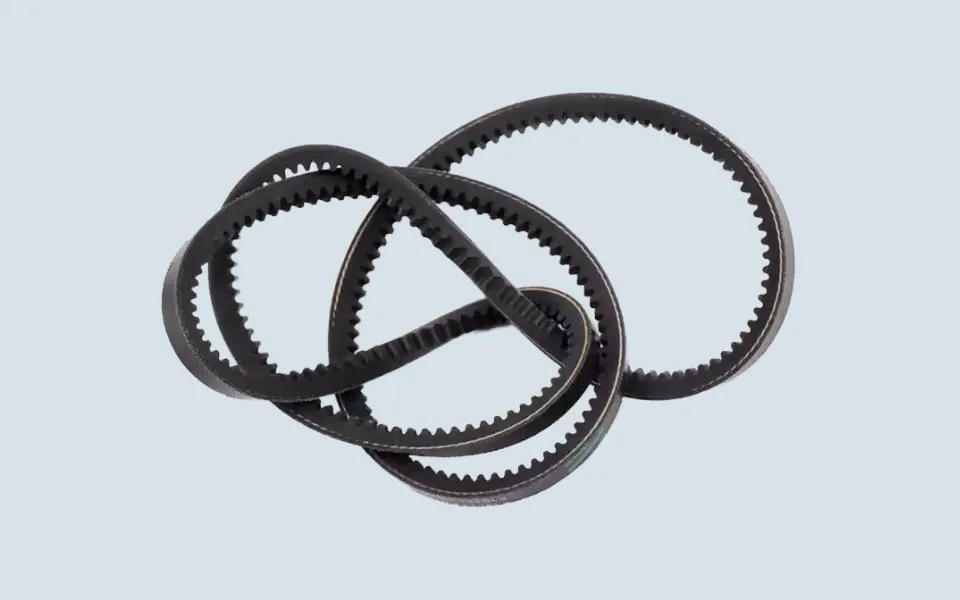

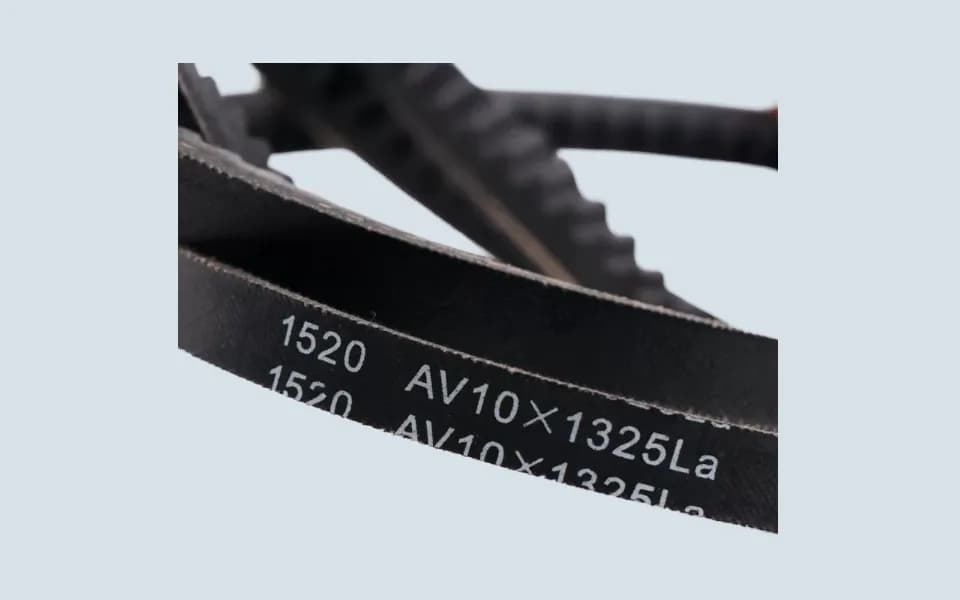

1520 AV10x1325La is a door operator belt commonly used in Mitsubishi elevator door drive systems.

The belt is responsible for transmitting motion between the door motor and door operator mechanism, helping ensure smooth and synchronized door opening and closing.

It is commonly associated with:

• elevator door operators
• door motor transmission systems
• landing door movement
• car door drive assemblies
• door synchronization mechanisms

Door operator belts are considered regular maintenance components in many elevator systems due to continuous daily operation.

Common Field Situation

In commercial buildings, hotels, and residential towers, door systems complete thousands of opening and closing cycles every month.

Technicians may inspect the belt when encountering:

• slow door opening speed
• abnormal door movement noise
• door vibration during operation
• belt cracking or aging
• inconsistent door closing performance

In many cases, belt wear develops gradually and may not trigger controller fault codes immediately.

Why Door Belts Matter

Although small in size, the door operator belt directly affects the performance of the entire door system.

A properly tensioned belt helps maintain:

• smooth door movement
• stable opening speed
• reduced vibration
• lower mechanical wear
• improved passenger experience

When belt tension becomes unstable, additional stress may be transferred to the door motor and mechanical linkage components.

System Relationship

The AV10x1325La belt typically works together with:

• door motors
• door controllers
• door rollers
• door hangers
• door encoder systems

For this reason, maintenance teams often inspect the complete door operator assembly rather than replacing only a single component.

Practical Maintenance Notes

In modernization projects, technicians sometimes replace the belt together with:

• door rollers
• door hangers
• door guide shoes
• door motor pulleys

This helps restore smoother door operation and reduce future maintenance requirements.

In dusty machine-room environments or elevators with heavy daily traffic, belt condition may deteriorate faster than expected.

FAQ

Why does an elevator door make squeaking or slipping noises?

In some Mitsubishi door systems, belt wear, improper tension, or pulley misalignment may contribute to abnormal door operating noise.

Can a worn door belt affect door opening speed?

Yes. As the belt ages, transmission efficiency may decrease, resulting in slower or less consistent door movement.

How often should a door operator belt be inspected?

Most maintenance companies inspect door transmission components during routine preventive maintenance, especially in high-traffic buildings.

Installation Notes

Before replacement:

• verify belt dimensions and specification
• inspect pulley condition
• check belt tension after installation
• confirm door opening and closing performance

Some Mitsubishi door operator generations use different belt lengths and pulley configurations even when the operator appearance is similar.
